6.2L MPI 350 EC - 2A530776 and Up - Front Cover and Circulating Pump

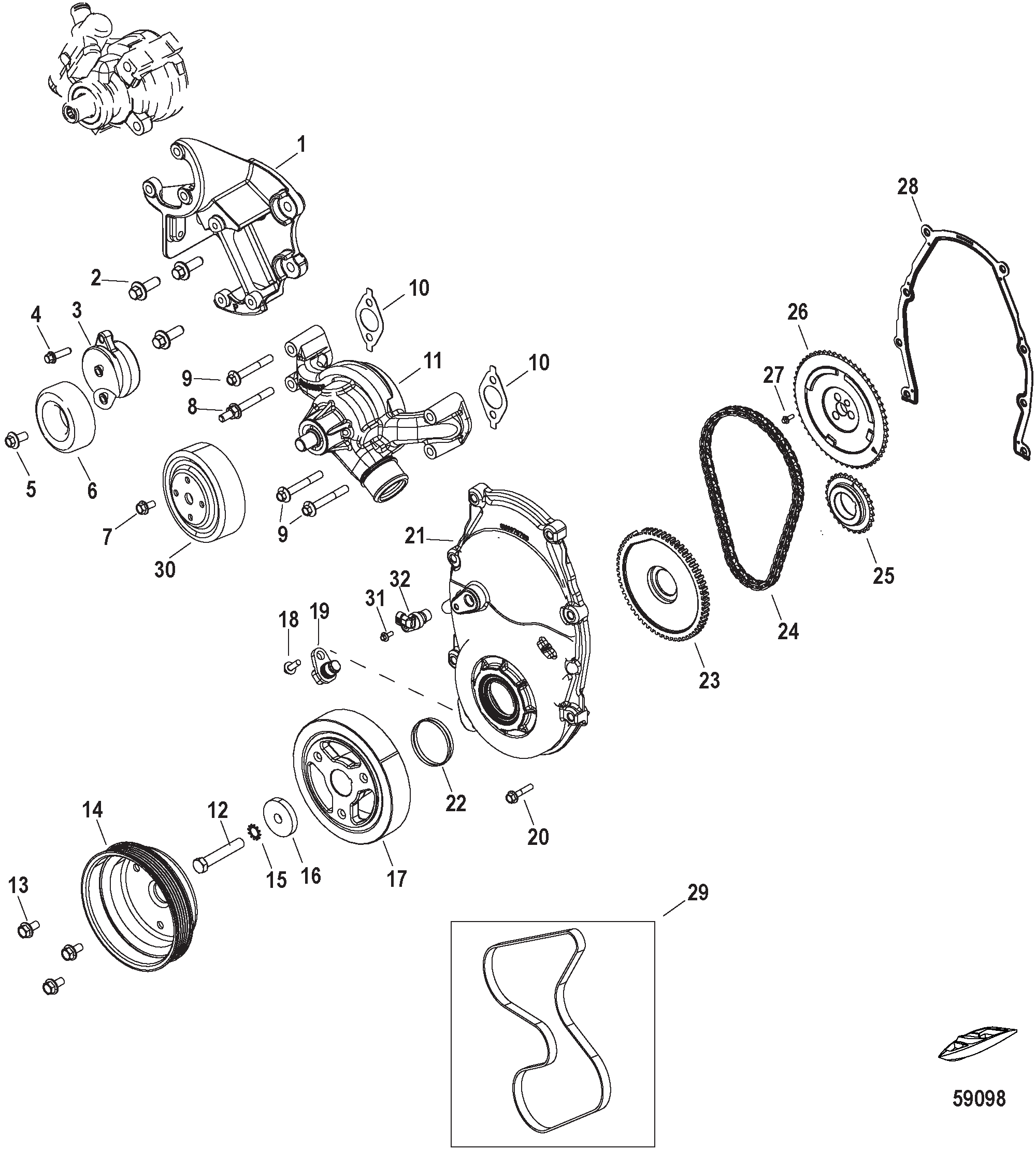

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Electrical Components Bracket and Propulsion Control Module
- Electrical Components Starter, Alternator, and Coil Bracket
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel and Coupler
- Fresh Water Cooling Cooling Hoses
- Fresh Water Cooling Crossover Assembly
- Fresh Water Cooling Heat Exchanger
- Fresh Water Cooling Sea Pump Hoses
- Front Cover and Circulating Pump
- Fuel Supply Module 2A575398 and Below
- Fuel Supply Module 2A575399 and Up
- Fuel Supply Module and Rail
- Harnesses
- Intake Manifold Assembly
- Jackshaft Components
- Maintenance Kits
- Mercathode Kit
- Oil Fill Tube
- Oil Pan and Pump
- Overhaul Gasket Set 6.2L
- Pistons and Connecting Rods
- Poppet Valve Assemblies
- Raw Water Cooling (Bravo) Sea Pump Hoses
- Raw Water Cooling Cooling Hoses
- Raw Water Cooling Crossover Assembly
- Remote Oil
- Sea Water Pump
- Service and Support Material
- Shift Bracket Bravo
- Shift Bracket Digital Throttle and Shift
- Steering System and Drive Lube Bottle
- Top and Front Covers
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing Air Actuated Drain
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
| 1 | 0000 | 8M0116637 | Bracket Steering Pump | 1 | ||
| 2 | 0010 | 88441430 | SCREW (M10 x 30) | 3 | ||
| 3 | 0000 | OEM: 525-865597T | TENSIONER Belt | 1 | ||
| 4 | 0010 | 8M0140384 | SCREW (M8) | 2 | ||
| 5 | 0010 | OEM: 525-10-4010820 | SCREW (M10 x 20) Hex Flange - Stainless Steel | 1 | ||
| 6 | 0000 | OEM: 530-865777 | PULLEY | 1 | ||
| 7 | 0010 | 8M0108016 | SCREW (M8 x 1.25-16) | 4 | ||
| 8 | 0016 | 8M0086354 | STUD (M8 x 1.25) | 1 | [1] | |
| 9 | 0010 | 8M0103817 | SCREW (M8 x 60) | 3 | [1] | |
| 10 | 0027 | 8M0082419 | GASKET | 2 | [1] | |
| 11 | 0046 | 8M0116534 | PUMP ASSEMBLY Circulating | 1 | [1] | |
| 12 | 0010 | OEM: 525-10-8M2021674 | SCREW (.437-20 x 2.50) | 1 | ||
| 13 | 0010 | 8M0108016 | SCREW (M8 x 1.25-16) | 3 | ||
| 14 | 0000 | OEM: 525-8M0095438 | PULLEY | 1 | ||
| 15 | 0013 | OEM: 525-13-39131 | LOCKWASHER (.437) | 1 | ||
| 16 | 0012 | 8M0109819 | WASHER | 1 | ||
| 17 | 0000 | 8M0114815 | HARMONIC DAMPER ASSEMBLY | 1 | [1] | |
| 18 | 0010 | OEM: 525-10-4010618 | SCREW (M6 x 18) Stainless Steel | 1 | [1] | |
| 19 | 0000 | OEM: 525-879194363 | SENSOR ASSEMBLY | 1 | [1] | |
| 20 | 0010 | 8M2106030 | SCREW (M6 x 1-30) | 6 | ||
| 21 | 0000 | 8M0107029 | COVER ASSEMBLY Timing Chain | 1 | [1] | |
| 22 | 0026 | 8M6002623 | SEAL Front | 1 | ||
| 23 | 0000 | OEM: 525-8M0095943 | RELUCTOR WHEEL | 1 | [1] | |
| 24 | 0000 | 8M0107026 | TIMING CHAIN SET | 1 | [1] | |
| 25 | NSS | NOT SOLD SEPARATE Camshaft Gear | 1 | [1] | ||
| 26 | NSS | NOT SOLD SEPARATE Crankshaft Gear | 1 | [1] | ||
| 27 | 0010 | OEM: 525-10-8M0043993 | SCREW (.312-18 x.75) | 3 | [1] | |
| 28 | 0027 | 8M0069696 | GASKET | 1 | [1] | |
| 29 | 0057 | 8M0097728 | BELT | Raw Water Cooling | 1 | |
| 29 | 0057 | 8M0088876 | BELT | Fresh Water Cooling | 1 | |
| 30 | 0000 | OEM: 525-8M0095458 | PULLEY | Raw Water Cooling | 1 | |
| 30 | 0000 | OEM: 525-8M0095461 | PULLEY | Fresh Water Cooling | 1 | |
| 31 | 0010 | OEM: 525-10-4006731 | SCREW (M6 x 16) | 1 | ||
| 32 | 0000 | OEM: 525-8M0011986 | SENSOR ASSEMBLY | 1 |
PART NOTES:
[1] - Component of Longblock Assembly [8M0114814]
