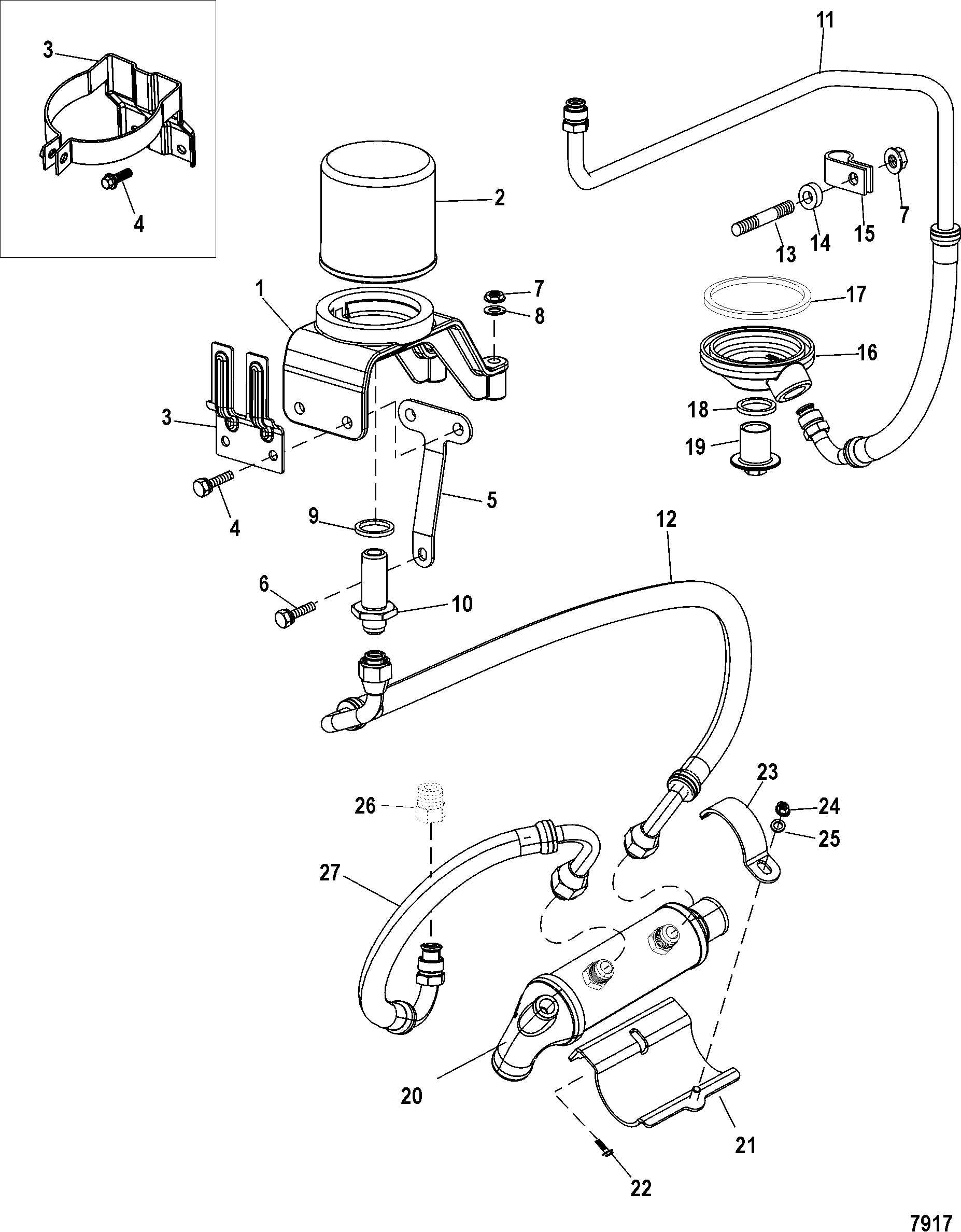

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
862342T |
|
|
|
|
BRACKET, Remote Oil Filter |
1 |
|
|
| 2 |
35-866340Q03 |
|
676-9-57825 |
|
|
FILTER, Oil |
1 |
35-802885Q |
|
| 3 |
863119 |
|
|
|
|
BRACKET, Power Steering Reservoir |
1 |
|
SN# 0W000004 & Up |
| 3 |
865262A02 |
|
|
|
|
BRACKET ASSEMBLY |
1 |
865262A01 |
SN# 0W000005 & Below |
| 4 |
10-4000354 |
|
|
|
|
SCREW, (M8 x 30) |
2 |
|
SN# 0W000004 & Up |
| 4 |
10-4000354 |
|
|
|
|
SCREW, (M8 x 30) |
2 |
|
SN# 0W000005 & Below |
| 5 |
8629102 |
|
|
|
|
BRACKET, Support |
1 |
|
|
| 6 |
10-4010716 |
|
|
|
|
SCREW, (M8 x 16), Flange |
1 |
|
|
| 7 |
11-4002030 |
|
|
|
|
NUT, (M8) |
3 |
|
|
| 8 |
12-12038 |
|
|
|
|
WASHER |
3 |
|
|
| 9 |
26-42077 |
|
|
|
|
SEAL |
1 |
|
2,3 |
| 10 |
22-806328 |
|
|
|
|
FITTING, Oil Adaptor |
1 |
|
|
| 11 |
32-863899 |
|
|
|
|
HOSE, Oil, Filter to Adaptor |
1 |
|
|
| 12 |
32-863900 |
|
|
|
|
HOSE, Oil, Filter to Cooler |
1 |
|
|
| 13 |
16-424632 |
|
|
|
|
STUD, (M8 x 37.1) |
1 |
|
|
| 14 |
23-34948 |
|
|
|
|
SPACER |
1 |
|
|
| 15 |
54-475451 |
|
|
|
|
CLIP |
2 |
|
|
| 16 |
862870T |
|
|
|
|
ADAPTOR, Oil Filter |
1 |
|
|
| 17 |
26-862957 |
|
|
|
|
SEAL, Oil Filter Adaptor |
1 |
|
2,3 |
| 18 |
26-42077 |
|
|
|
|
SEAL, Swivel Tube |
1 |
|
2,3 |
| 19 |
22-862958 |
|
|
|
|
FITTING, Oil Filter Adaptor |
1 |
|
|
| 20 |
863904T |
|
|
|
|
COOLER, Oil |
1 |
|
|
| 21 |
863905T |
|
|
|
|
BRACKET, Oil Cooler |
1 |
|
|
| 22 |
10-4000327 |
|
|
|
|
SCREW, (M6 x 14) |
2 |
|
|
| 23 |
807445T |
|
|
|
|
CLAMP, Cooler Bracket |
1 |
|
|
| 24 |
11-401366 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 25 |
12-22937 |
|
|
|
|
WASHER |
1 |
|
|
| 26 |
22-805563 |
|
|
|
|
CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) (.50 Inch NPTF to .50 Inch Inv. Flare) |
1 |
|
|
| 27 |
32-863915 |
|
|
|
|
HOSE, Oil, Cooler to Adaptor |
1 |
|
|
