454 Mag Alpha (Gen 4) GM V-8 1986-1988 - Serial 0A631894 Thru 0B785148 - Shift Bracket(Old Design)

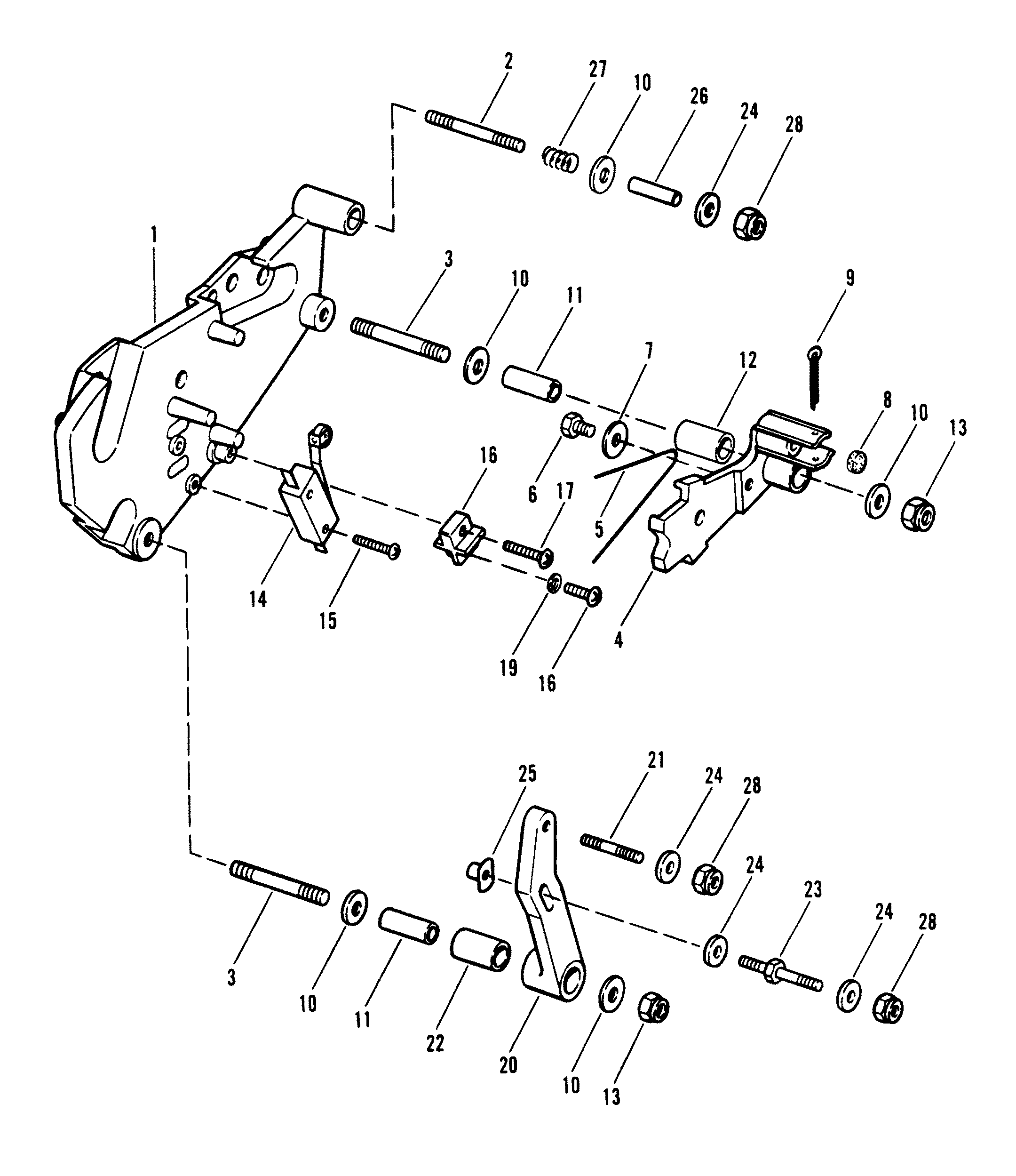

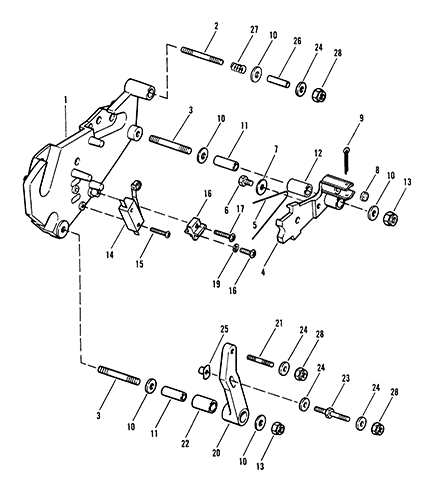

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807962A15         SHIFT BRACKET ASSEMBLY 1 99237A10
2 16-865154A02         STUD, SHIFT CABLE 1 16-98798
3 16-96108         STUD, SHIFT BRACKET 2   This Part is No Longer Available
4 13051A4         LEVER ASSEMBLY, ACTUATING 1 45517A2 This Part is No Longer Available
5 24-862850         SPRING, ACTUATING LEVER 1 24-45599
6 10-88743         SCREW, SPRING TO LEVER 1

7 12-56720         WASHER, SPRING SCREW 1

8 23-98828         SPACER, RUBBER PAD 1

9 18-328571         COTTER PIN, SHIFT CABLE RETAINING 1 18-32857
10 12-56720         WASHER, SHIFT BRACKET STUD 5

11 23-37981         SPACER, SHIFT BRACKET STUD 2
No longer made, limited availability
12 23-45600         SLEEVE, ACTUATING LEVER 1
No longer made, limited availability
13 11-82670911         NUT, SHIFT BRACKET STUD 2 11-35814
14 39670A28         SWITCH ASSEMBLY, CUT-OUT 1   This Part is No Longer Available
15 10-30902         SCREW, SWITCH TO SHIFT BRACKET 2

16 86-66986         TERMINAL BLOCK 1   This Part is No Longer Available
17 10-96113         SCREW, TERMINAL BLOCK (7/8") 1

18 10-73287         SCREW, TERMINAL BLOCK(3/8") 1

19 13-26996         LOCKWASHER, TERMINAL BLOCK SCREW 2

20 13898T06         SHIFT LEVER ASSEMBLY 1 95854A3
21 16-98851         STUD, SHIFT CABLE 1
No longer made, limited availability
22 23-45600         SLEEVE, SHIFT LEVER 1
No longer made, limited availability
23 16-96112         STUD, SHIFT CABLE 1

24 12-35462         WASHER, SHIFT CABLE STUD 5

25 11-63341         TEE NUT, SHIFT CABLE STUD 1

26 16-987981         SPACER, SHIFT CABLE STUD 1 23-98820
27 24-98880         SPRING, SHIFT CABLE STUD 1

28 11-8267089         NUT, SHIFT CABLE STUD 3 11-20361
