350 Mag MPI HORIZON Alpha-Bravo EC - Serial 1A611928 Thru 1A623184 - Front Cover and Circulating Pump
Other Sub-Sections:
- Alternator and Brackets
- AXIUS Steering Components, Hydraulic Pump
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (High Pressure)
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (High Pressure Filter)
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System (Alpha)
- Closed Cooling System (Bravo)
- Closed Cooling System (BRAVO) Sea Pump Hoses
- Closed Cooling System (BRAVO) Sea Pump Hoses (SeaCore)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System, Bravo
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Rocker Cover
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift - Axius
- Standard Cooling System (Alpha), Single and 7 Point Drain
- Standard Cooling System (Bravo), Air, 3 and 7 Point Drain
- Standard Cooling System, Sea Pump Hoses
- Starter Motor
- Steering Components
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing

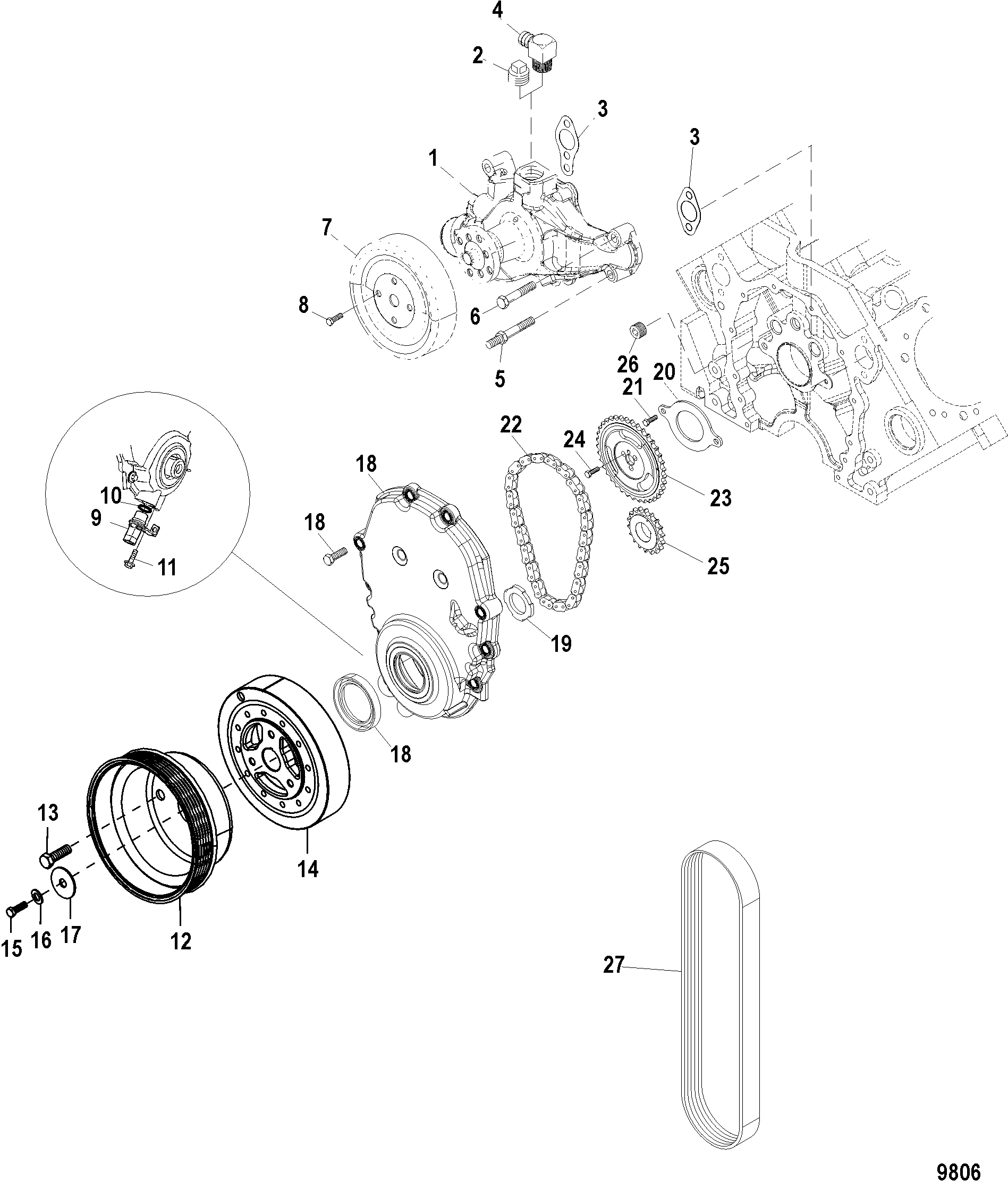

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
1 | 8503991 | PUMP ASSEMBLY, Water, Water | 1 | ||||||
2 | 22-428611 | 602-98-102-57 | PLUG, Pipe | 1 | 22-49146 | (Standard Cooling) | |||
3 | 27-34897 | 676-9-60065 | 700-31380 | GASKET, Water Pump | 2 | ||||
4 | 22-860346 | FITTING, Elbow (90 Degree) (.750), 90 Degrees | 1 | (Closed Cooling) | |||||
5 | 16-35342 | STUD, (.312-24/.375-16 x 2.5625) | 2 | ||||||
6 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
6 | 10-47688 | SCREW, (.375-16 x 2.750) | 1 | ||||||
7 | 807729T | PULLEY, Water Pump | 1 | (Standard Cooling) | |||||
7 | 865047T | PULLEY, Water Pump | 1 | 864861T | (Closed Cooling) | ||||
8 | 10-47277 | SCREW, (.312-24 x .750) | 4 | ||||||
9 | 864297T01 | SENSOR ASSEMBLY, Crankshaft Position | 1 | 864297 | |||||
10 | 25-885192 | O-RING | 1 | ||||||
11 | 10-884018001 | SCREW | 1 | 10-884018 | |||||
12 | 807730T | PULLEY, Crankshaft | 1 | ||||||
13 | 10-34352 | SCREW, (.375-24 x .875) | 3 | ||||||
14 | 863397 | HARMONIC BALANCER | 1 | ||||||
15 | 10-32515 | SCREW, (.437-20 x 2.50) | 1 | ||||||
16 | 13-39131 | LOCKWASHER, (.437) | 1 | ||||||
17 | 12-71458 | WASHER | 1 | ||||||
18 | 863396001 | TIMING COVER ASSEMBLY, Screws, Grommets, Oil Seal, and Gasket are Not Sold separately | 1 | 863396 | |||||
19 | 863398 | RELUCTOR WHEEL | 1 | ||||||
20 | 845941 | RETAINER, Camshaft | 1 | ||||||
21 | 10-845943 | SCREW, (.250-20 x .500) | 2 | ||||||
22 | 17161T | CHAIN, Timing | 1 | ||||||
23 | 43-8116591 | SPROCKET, Camshaft | 1 | ||||||
24 | 10-845942 | SCREW, (.312-18 x .750) | 3 | ||||||
25 | 43-17160 | SPROCKET, Crankshaft | 1 | ||||||
26 | 19-816565 | PLUG, Pipe(.468), Pipe | 1 | ||||||
27 | 57-865615Q04 | BELT, Serpentine | 1 | 57-8638764 | (Standard Cooling) (Alpha) (With Power Steering) | ||||
27 | 57-865615Q09 | BELT, Serpentine | 1 | 57-8638769 | (Standard Cooling) (Alpha) (CHS and Non Power Steering) | ||||
27 | 57-8638763 | BELT, Serpentine | 1 | (Standard Cooling) (Bravo) (With Power Steering) | |||||
27 | 57-865615Q08 | BELT, Serpentine | 1 | 57-8638768 | (Standard Cooling) (Bravo) (CHS and Non Power Steering) | ||||
27 | 57-865615Q06 | BELT, Serpentine | 1 | 57-8638766 | (Alpha/Bravo) (Closed Cooling) (With Power Steering) | ||||
27 | 57-865615Q08 | BELT, Serpentine | 1 | 57-8638768 | (Alpha/Bravo) (Closed Cooling) (CHS and Non Power Steering) | ||||
- | 27-861246A05 | 700-39016 | GASKET SET, Engine Overhaul | 1 | 27-861246A98 |
