350 Mag Bravo MPI(Gen +) GM V-8 1997 - Serial 0K001501 and Up - Intake Plenum And Flame Arrestor

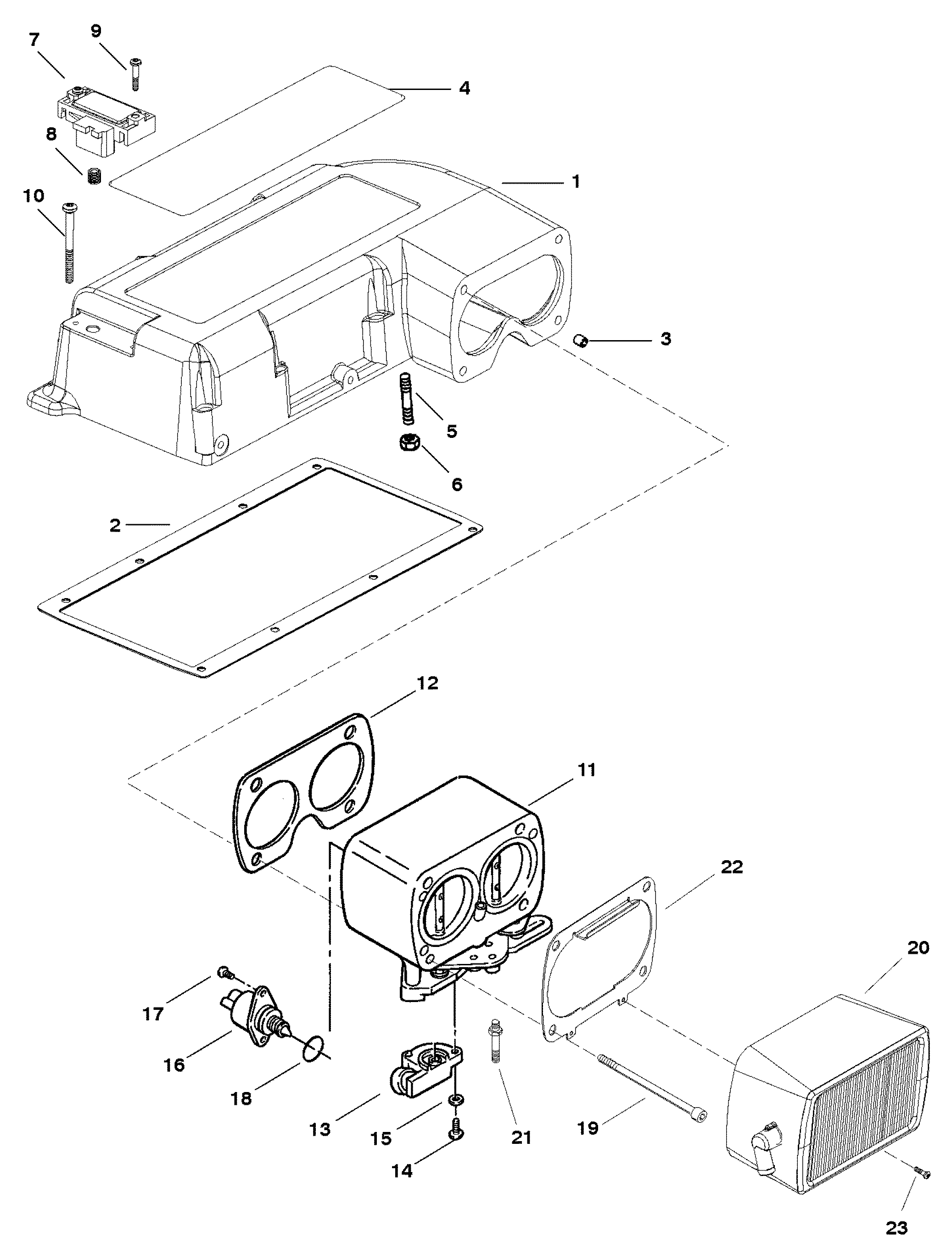

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 806811A1         PLENUM ASSEMBLY-INTAKE 1   This Part is No Longer Available
2 27-807670         GASKET 1 27-806988 3
3 23-52698         SLEEVE 2

4 37-807474         DECAL 1   This Part is No Longer Available
5 16-728091         STUD (1/4 X 1-5/8 IN.) 1 16-72809
6 11-807082         NUT (1/4-28) 1

7 864856A1         SENSOR-MAP 1 805217A1
8 26-805412         SEAL-MAP SENSOR 1
3
9 10-807120         SCREW (#10-24 X 1 IN.) 2

10 10-806953         SCREW (1/4-20 X 2-3/4 IN.) 7

11 860204A5         THROTTLE BODY ASSEMBLY 1

12 27-805396         GASKET 1
3
13 805226A1         SENSOR-TPS 1

14 10-805400         SCREW (#8-32 X 1/2 IN.) 2

15 12-28001         WASHER 2   This Part is No Longer Available
16 805224A1         IAC MOTOR 1

17 10-805400         SCREW (#8-32 X 1/2 IN.) 2

18 25-808547         O-RING 1

19 10-808040         SCREW (5/16-18 X 4 IN.) 4

20 807656A2         FLAME ARRESTOR 1

21 16-805526         STUD (1/4-28 X 1-1/8 IN.) 1

22 807654T         BRACKET-FLAME ARRESTOR 1

23 10-808039         SCREW (#6-32) 2

- 27-806988A96         GASKET SET-ENGINE OVERHAUL 1   This Part is No Longer Available
