TR-TRS - Serial 4794900 and Up - Drive Shaft Housing And Gear Assembly

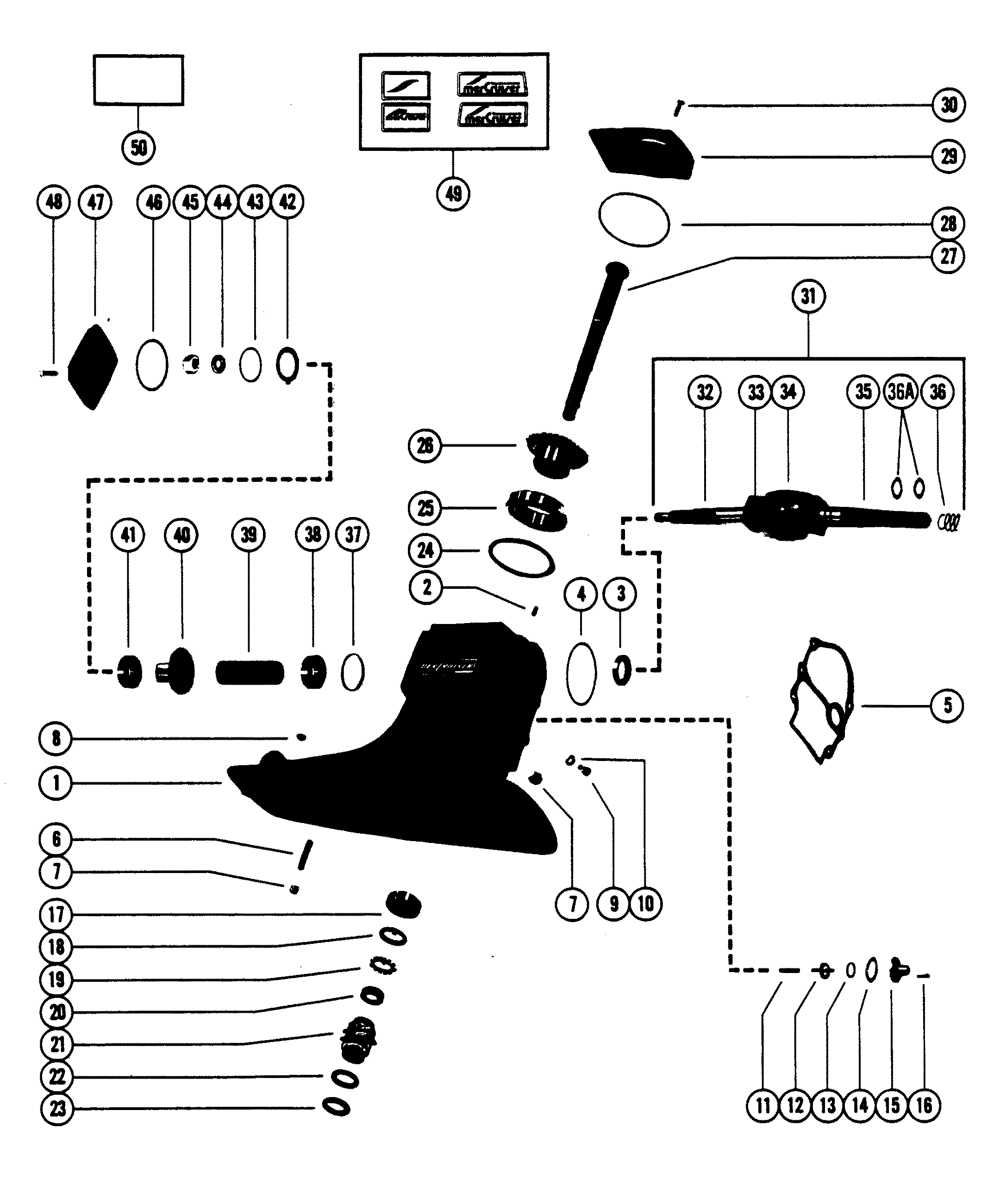

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: COMMERCIAL APPLICATION ONLY 17/17 TOOTH HEAVY DUTY GEAR SET ORDER [43 96928A1]
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1571-4847A5         DRIVE SHAFT HOUSING ASSEMBLY 1   This Part is No Longer Available
2 10-21934         SCREW, SET - DRIVE SHAFT HOUSING 1   This Part is No Longer Available
3 26-62818         OIL SEAL, DRIVE SHAFT HOUSING 1

4 25-62817         "O" RING, DRIVE SHAFT HOUSING 1

5 27-54014Q1         GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING 1 27-54014A1
6 16-54674         STUD, DRIVE SHAFT HOUSING (2-1/4") 6

7 11-34933   676-9-72004     NUT, DRIVE SHAFT HOUSING STUD 6

8 19-47579     700-21890   PLUG, TRIM TAB HOLE 1

9 10-79953Q04         SCERW, VENT 1 10-79953
10 12-191833         WASHER, SEALING 1 12-20260
11 24-48442         SPRING, TENSION 1

12 20-48219         CHECK VALVE 1

13 25-48452         QUAD RING 1

14 27-66925         GASKET 1   This Part is No Longer Available
15 54168         GUIDE 1   This Part is No Longer Available
16 10-22523         SCREW 3   This Part is No Longer Available
17 31-38356A1         TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT 1

18 12-62795         TAB WASHER, DRIVE SHAFT 1   This Part is No Longer Available
19 13-62788         LOCKWASHER, DRIVE SHAFT 1
No longer made, limited availability
20 11-41527T         NUT, DRIVE SHAFT 1
No longer made, limited availability
21 62787A2         COUPLING ASSEMBLY, OIL SLINGER 1   This Part is No Longer Available INCLUDED WITH GEAR HOUSING ASSEMBLIES
22 15-39899A1         SHIM ASS'Y, ROLLER BEARING TO COUPLING AR
INCLUDED WITH GEAR HOUSING ASSEMBLIES 22
23 12-62797         WASHER, ROLLER BEARING TO COUPLING 1   This Part is No Longer Available INCLUDED WITH GEAR HOUSING ASSEMBLIES
24 15-846353A1         SHIM ASSEMBLY, TAPERED ROLLER BEARING AR 15-32061A1 22
25 31-62799A1         TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR 1

26 43-62879T1         DRIVEN GEAR, DRIVE SHAFT (32 TEETH) 1 43-62879T (SEE NOTE #1)
27 45-62793T         DRIVE SHAFT 1   This Part is No Longer Available
28 25-67202         "O" RING, TOP COVER 1   This Part is No Longer Available
29 62911T         COVER, TOP 1   This Part is No Longer Available
30 10-35047         SCREW, COVER (1-1/4") 4

31 62782A8         UNIVERSAL JOINT (MERCURY MARINE TRANSMISSION) 1   This Part is No Longer Available
31 62782A4         UNIVERSAL JOINT (BORG WARNER TRANSMISSION) 1   This Part is No Longer Available
32 62782A6         YOKE, UNIVERSAL JOINT (GEAR END) 1

33 75832T         CROSS AND BEARING ASSEMBLY 2 75832A2
34 393831         SOCKET, CENTER - UNIVERSAL JOINT 1 39383T
35 62784A1         YOKE, UNIV. JOINT (COUPLING END) 1
MERUCRY MARINE TRANSMISSION
36 24-62727         SPRING, UNIVERSAL JOINT 1
MERUCRY MARINE TRANSMISSION
35 57749A1         YOKE, UNIVERSAL (COUPLING END) 1
BORG WARNER TRANSMISSION
36A 25-25439         O" RING, UNIVERSAL 2
BORG WARNER TRANSMISSION
37 15-62833A1         SHIM ASSEMBLY, ROLLER BEARING TO HOUSING AR

38 31-38356A1         TAPERED ROLLER BRG ASSEMBLY, UNIVERSAL JOINT 1

39 23-62789         SPACER, TAPERED ROLLER BEARING 1   This Part is No Longer Available
40 43-62878         DRIVE GEAR (24 TEETH) 1 43-62878T (SEE NOTE #1)
41 31-54038A1         TAPERED ROLLER BEARING ASSEMBLY, PINION GEAR 1

42 12-62786         TAB WASHER, TAPERED ROLLER BEARING 1   This Part is No Longer Available
43 15-55499A1         SHIM ASSEMBLY, TAPERED ROLLER BEARING AR

44 12-48912         WASHER, PINION GEAR TO UNIVERSAL JOINT 1   This Part is No Longer Available
45 11-82671327         NUT, PINION GEAR TO UNIVERSAL JOINT 1 11-34862
46 25-39695         "O" RING, REAR COVER 1

47 62785T         COVER, REAR 1   This Part is No Longer Available
48 10-35047         SCREW, REAR COVER (1-1/4") 4

49 37-14489A90         DECAL SET, DRIVE SHAFT HOUSING (330 TR/TRS/370) 1 37-14489A87
50 37-77386         DECAL, "228" 1   This Part is No Longer Available
50 37-77412         DECAL, "330" 1   This Part is No Longer Available
50 37-16416A87         DECAL, "420" 1   This Part is No Longer Available
