| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

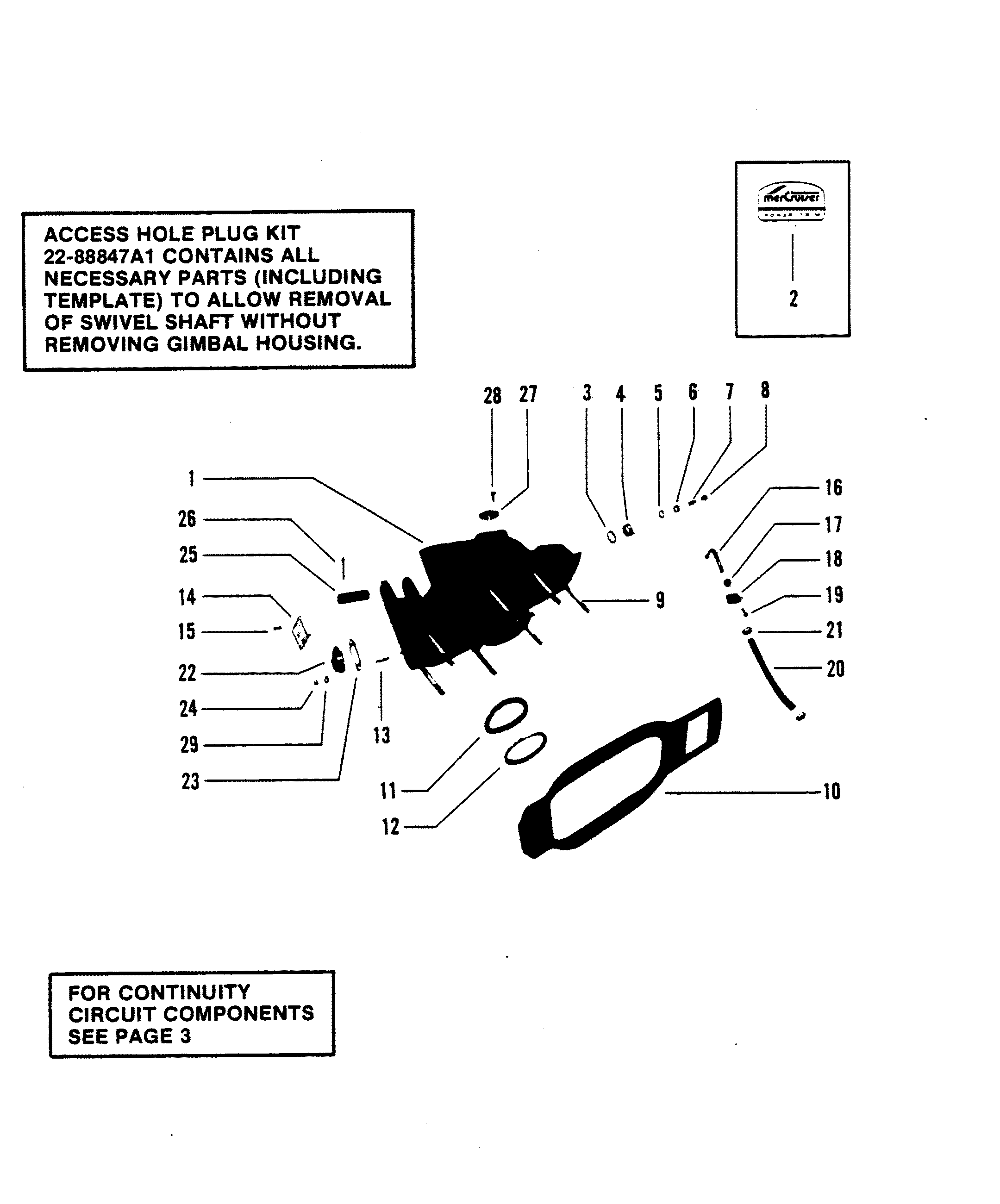

| 1 |
62720A4 |
|
|
|
|
GIMBAL HOUSING ASSEMBLY |
1 |
|
|
| 2 |
37-87018 |
|
|
|
|
DECAL, GIMBAL HOUSING |
1 |
|
This Part is No Longer Available No longer made, limited availability |
| 3 |
26-31783 |
|
|
|
|
OIL SEAL, LOWER ROLLER BEARING |
1 |
|
|
| 4 |
31-54043 |
|
|
|
|
ROLLER BEARING (LOWER) |
1 |
|
|
| 5 |
26-54925 |
|
|
|
|
OIL SEAL, UPPER ROLLER BEARING |
1 |
|
|
| 6 |
31-21145 |
|
|
|
|
ROLLER BEARING (UPPER) |
1 |
|
|
| 7 |
22-69059 |
|
|
|
|
GREASE FITTING |
1 |
|
|
| 8 |
19-77633Q |
|
|
|
|
LUBRICAP, GREASE FITTING |
1 |
19-77633 |
|
| 9 |
16-57988 |
|
|
|
|
STUD, GIMBAL HOUSING (5-3/8") |
8 |
|
|
| 10 |
27-54395T |
|
|
|
|
GASKET, GIMBAL HOUSING |
1 |
|
|
| 11 |
25-54521 |
|
|
|
|
O-RING, GIMBAL HOUSING |
1 |
|
|
| 12 |
54068F1 |
|
|
|
|
PILOT RING, GIMBAL HOUSING |
1 |
54068 |
No longer made, limited availability |
| 13 |
16-56766 |
|
|
|
|
STUD, GIMBAL HOUSING (1-3/8") |
2 |
|
|
| 14 |
34762A1 |
|
|
|
|
PLATE ASSEMBLY, INHIBITOR |
1 |
|
|
| 15 |
10-34763 |
|
|
|
|
SCREW, INHIBITOR PLATE (3/4") |
2 |
|
|
| 16 |
32-54392 |
|
|
|
|
TUBE, OIL - GIMBAL HOUSING |
1 |
|
|
| 17 |
23-54421 |
|
|
|
|
BUSHING, SEALING - OIL TUBE |
1 |
|
|
| 18 |
54422A1 |
|
|
|
|
COVER, SEALING BUSHING |
1 |
|
This Part is No Longer Available |
| 19 |
10-28636 |
|
|
|
|
SCERW, COVER (3/4") |
2 |
|
|
| 20 |
32-34423 |
|
|
|
|
HOSE, OIL - GIMBAL HOUSING TO TRANSOM PLATE (7-3/4") |
1 |
|
|
| 21 |
54-815504104 |
|
|
|
|
CLAMP, OIL HOSE |
2 |
54-54428 |
|
| 22 |
47347 |
|
|
|
|
CONNECTOR (EARLY PRESTOLITE PUMP) |
1 |
|
|
| 22 |
85054A5 |
|
|
|
|
CONNECTOR (OILDYNE & LATER PRESTOLITE PUMPS) |
1 |
|
|
| 23 |
27-476441 |
|
|
|
|
GASKET, HYDRAULIC CONNECTOR |
1 |
27-47644 |
|
| 24 |
11-8267089 |
|
|
|
|
NUT, HYDRAULIC CONNECTOR STUD |
2 |
11-20361 |
|
| 25 |
17-54052T1 |
|
|
|
|
SWIVEL PIN, GIMBAL HOUSING TO GIMBAL RING (LOWER) |
1 |
17-54052T |
|
| 26 |
18-54929 |
|
|
|
|
COTTER PIN, LOWER SWIVEL PIN |
1 |
|
|
| 27 |
57322T |
|
|
|
|
COVER, RETAINING |
1 |
57322 |
|
| 28 |
10-28635 |
|
|
|
|
SCREW, RETAINING COVER TO GIMBAL HOUSING (5/8") |
2 |
|
|
| 29 |
13-78968 |
|
|
|
|
LOCKWASHER, HYDRAULIC CONNECTOR STUD |
2 |
|
|
