TR-TRS - Serial 4794900 and Up - Hydraulic Pump (Oildyne Pump Metal Reservoir)

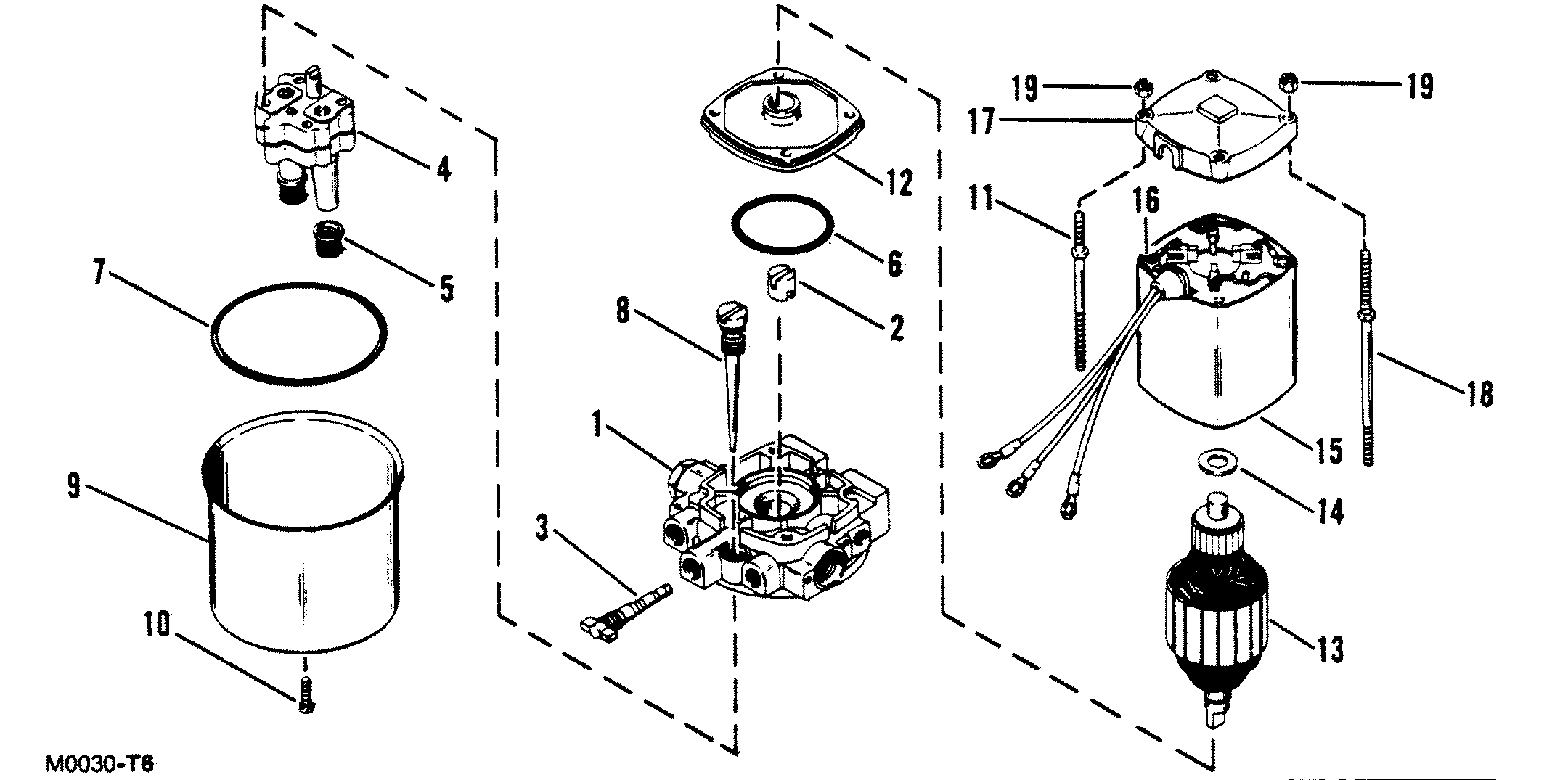

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
-- 865380A13         HYDRAULIC PUMP ASSEMBLY 1 88183A5
1 41217T         ADAPTER 1 41217
2 803852         COUPLING 1 89493
3 99073A1         MANUAL RELEASE (INCLUDES 2 "O" RINGS) AR 89494
3 99073A1         MANUAL RELEASE (INCLUDES 3 "O" RINGS) AR 96598
4 41216         PUMP (INCLUDES SCREWS) 1

5 35-89496         FILTER 2

6 25-89498         O-RING, MOTOR END 1

7 25-89497         O-RING, RESERVOIR END 1

8 41218         DIPSTICK 1   This Part is No Longer Available
9 41219T         RESERVOIR 1 41219
10 10-41220         SCREW, RESERVOIR (INCLUDES "O" RING) 1   This Part is No Longer Available
11 16-41222         THRU STUD (SHORT) 1   This Part is No Longer Available
11 16-41221         THRU STUD (LONG 1   This Part is No Longer Available
-- 17649A02         MOTOR, HYDRAULIC PUMP 1 93692
12 89484         END FRAME, DRIVE END 1   This Part is No Longer Available
13 41214         ARMATURE 1   This Part is No Longer Available
14 12-89482         WASHER, THRUST - ARMATURE 1   This Part is No Longer Available
15 41215         FIELD FRAME 1   This Part is No Longer Available
16 17649A1         BRUSH CARD 1 89487
17 90-89448         END FRAME, COMMUTATOR END 1   This Part is No Longer Available
18 10-41212         THRU BOLT, MOTOR (SHORT) 1   This Part is No Longer Available
18 10-41213         THRU BOLT, MOTOR (LONG) 1   This Part is No Longer Available
19 11-89481         NUT, THRU BOLT AND STUD 6   This Part is No Longer Available
20 812498A1         UP PRESSURE RELIEF VALVE KIT (REPAIR KIT)
95351A1
21 812499A1         DOWN PRESSURE RELIEF VALVE KIT (REPAIR KIT)
95355A1
22 95353A1         THERMAL RELIEF VALVE KIT (REPAIR KIT)


23 99073A1         OVERHAUL REPAIR KIT
99073
24 19-11005A1         TRIAL-OUT VALVE PLUG (REPAIR KIT)     This Part is No Longer Available
