662 SCi - Serial 0M956580 Thru 0M962885 - Intake Components (Air Plenum)

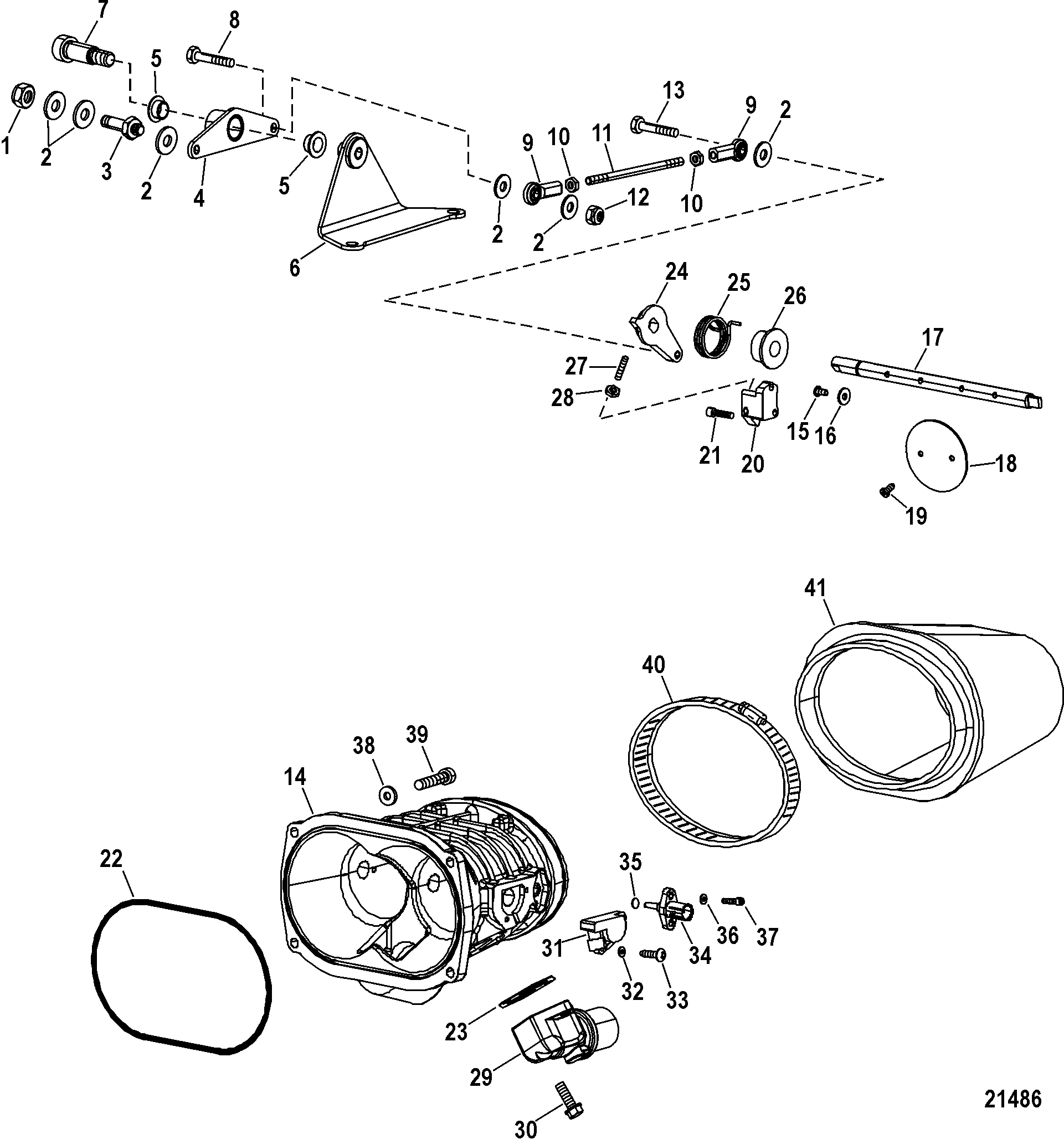

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 11-826709109



NUT, (.250-28) Stainless Steel 1

2 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 6

3 16-805526



STUD, (.250-28 x 1.540) 1

4 843940001



BELLCRANK 1

5 23-841238



BUSHING 2

6 843939



BRACKET, Bellcrank Pivot 1

7 10-841237



SHOULDER SCREW, (.375-16) Stainless Steel 1

8 10-59702



SCREW, (.250-28 x .875) Stainless Steel 1

9 847881



ROD END, Right Hand 2

10 11-F2015



NUT, (.250-28) Stainless Steel 2

11 16-843942



STUD, (.250-28 x 4.880) 1

12 11-826709109



NUT, (.250-28) Stainless Steel 1

13 10-59702



SCREW, (.250-28 x .875) Stainless Steel 1

14 843085A07



THROTTLE BODY ASSEMBLY, Blue 1
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number
15 10-842275



SCREW, (#10-32 x .380) Stainless Steel 1

16 12-72761



WASHER, (.203 x .562 x .060) Stainless Steel 1

17 843099



SHAFT, Throttle Plate 1

18 843100



PLATE, Throttle 2

19 10-842392



SCREW, (#10-32 x .500) Stainless Steel 4

20 843935



PLATE, Stop 1

21 10-F2211



SCREW, (#10-24 x .625) Stainless Steel 2

22 25-843920



O-RING, (7.052 x .103) 1
2
23 27-863112



GASKET 1
2
24 843936



ARM, Throttle - Blue 1

24 8M0007875



ARM, Throttle - Black 1

25 24-843097



SPRING 1

26 23-843938



SPACER, Return Spring 1

27 10-843937



SET SCREW, (#10-24 x .750) Stainless Steel 1

28 11-79989



NUT, (#10-24) Stainless Steel 1

29 862998



VALVE, Idle Air 1

30 10-90192



SCREW, (.250-20 x .750) Stainless Steel 2

31 849903



SENSOR, Throttle Position 1

32 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2

33 10-805400



SCREW, (#8-32 x .500) Stainless Steel 2

34 891663001



SENSOR ASSEMBLY, Temperature, Air Intake 1

35 25-892317001



O-RING 1
2
36 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2

37 10-90188



SCREW, (#10-24 x .500) Stainless Steel 2

38 12-70132



WASHER, (.323 x .563 x .063) Stainless Steel 4

39 10-841222



SCREW, (.312-18 x 1.250) 4

40 54-842241



CLAMP, Worm Gear 1

41 842240



FLAME ARRESTER, (6.00 Inch) 1

41 843946T



FLAME ARRESTER, (4.50 Inch) OPT 843946
- 27-843073A05



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
