| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

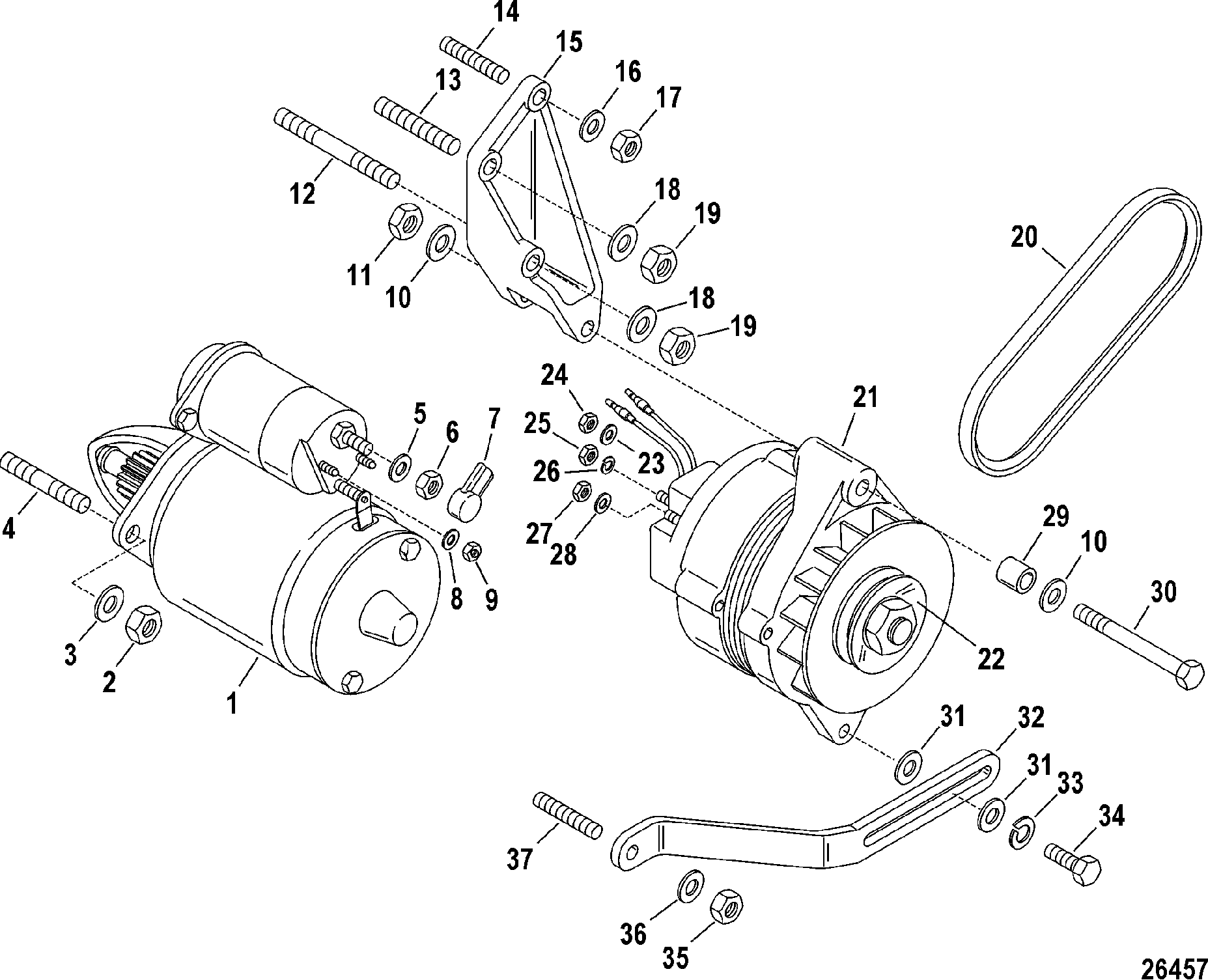

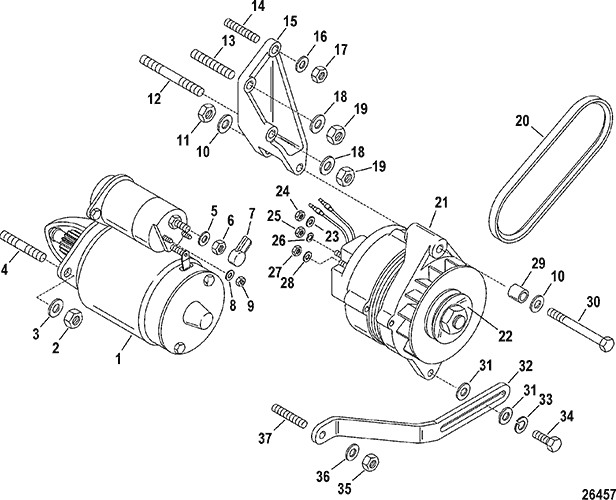

| 1 |
50-808011A05 |
|
|
|
|
STARTER MOTOR ASSEMBLY |
1 |
50-808011A1 |
NOTE: See Starter Motor Components Section For Parts Breakdown |
| 2 |
11-34933 |
|
676-9-72004 |
|
|
NUT, (.437-20) Stainless Steel |
2 |
11-82671015 |
Component Of Engine Gasket/Seal Set [27-840277A 1] |
| 3 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 4 |
16-57982 |
|
|
|
|
STUD, (.437-14/.437-20 x 1.875) |
2 |
|
|
| 5 |
12-20086 |
|
|
|
|
WASHER, (.390 x .620 x .060) |
1 |
|
Component Of Partial Engine Assembly [849040A 7] |
| 6 |
11-4013610 |
|
|
|
|
NUT, (M10) Stainless Steel |
1 |
|
|
| 7 |
85-79695T |
|
|
|
|
BOOT, Insulator - Black |
1 |
85-79695 |
|
| 8 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
1 |
|
|
| 9 |
11-400263 |
|
|
|
|
NUT, (M5) |
2 |
|
This Part is No Longer Available |
| 10 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
2 |
|
|
| 11 |
11-82671013 |
|
|
|
|
NUT, (.375-24) |
1 |
11-34932 |
|
| 12 |
16-57921 |
|
|
|
|
STUD, (.437-14/.437-20 x 4.00) |
1 |
|
|
| 13 |
16-54674 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.250) |
1 |
|
|
| 14 |
16-64281 |
|
|
|
|
STUD, (.375-16/.375-24 x 1.880) |
1 |
|
This Part is No Longer Available |
| 15 |
845843 |
|
|
|
|
BRACKET, Alternator |
1 |
|
This Part is No Longer Available |
| 16 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
| 17 |
11-826709113 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
1 |
|
|
| 18 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 19 |
11-34933 |
|
676-9-72004 |
|
|
NUT, (.437-20) Stainless Steel |
2 |
11-82671015 |
|
| 20 |
57-97328Q |
|
|
|
|
V BELT, Alternator |
1 |
57-97328 |
This Part is No Longer Available |
| 21 |
17399F1 |
|
|
|
|
ALTERNATOR ASSEMBLY |
1 |
|
This Part is No Longer Available - NOTE: Service Complete |
| 22 |
939362 |
|
|
|
|
PULLEY |
1 |
|
|
| 23 |
12-37998 |
|
|
|
|
WASHER |
1 |
|
|
| 24 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
1 |
|
|
| 25 |
11-79989 |
|
|
|
|
NUT, (#10-24) Stainless Steel |
2 |
|
|
| 26 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 27 |
11-21806 |
|
|
|
|
NUT, (#10-24) |
1 |
|
|
| 28 |
12-847883 |
|
|
|
|
WASHER, (.192 x .375 x .033) |
1 |
|
|
| 29 |
23-33186 |
|
|
|
|
BUSHING |
1 |
|
|
| 30 |
10-67769 |
|
|
|
|
SCREW, (.375-24 x 4.00) |
1 |
|
This Part is No Longer Available |
| 31 |
12-63032 |
|
|
|
|
WASHER, (.320 x 1.00 x .120) Stainless Steel |
2 |
|
|
| 32 |
960981 |
|
|
|
|
BRACE |
1 |
|
|
| 33 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312) |
1 |
|
|
| 34 |
10-55511 |
|
|
|
|
SCREW, (.312-18 x 1.500) |
1 |
|
This Part is No Longer Available |
| 35 |
11-826709113 |
|
|
|
|
NUT, (.375-24) Stainless Steel |
1 |
|
|
| 36 |
12-856774 |
|
|
|
|
WASHER, (.406 x .750 x .105) Stainless Steel |
1 |
|
|
| 37 |
16-818824 |
|
|
|
|
STUD, (.375-16/.375-24 x 1.590) |
1 |
|
|
