7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Intake Manifold And Intake Plenum

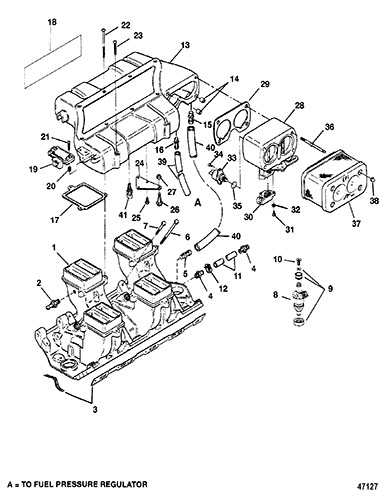

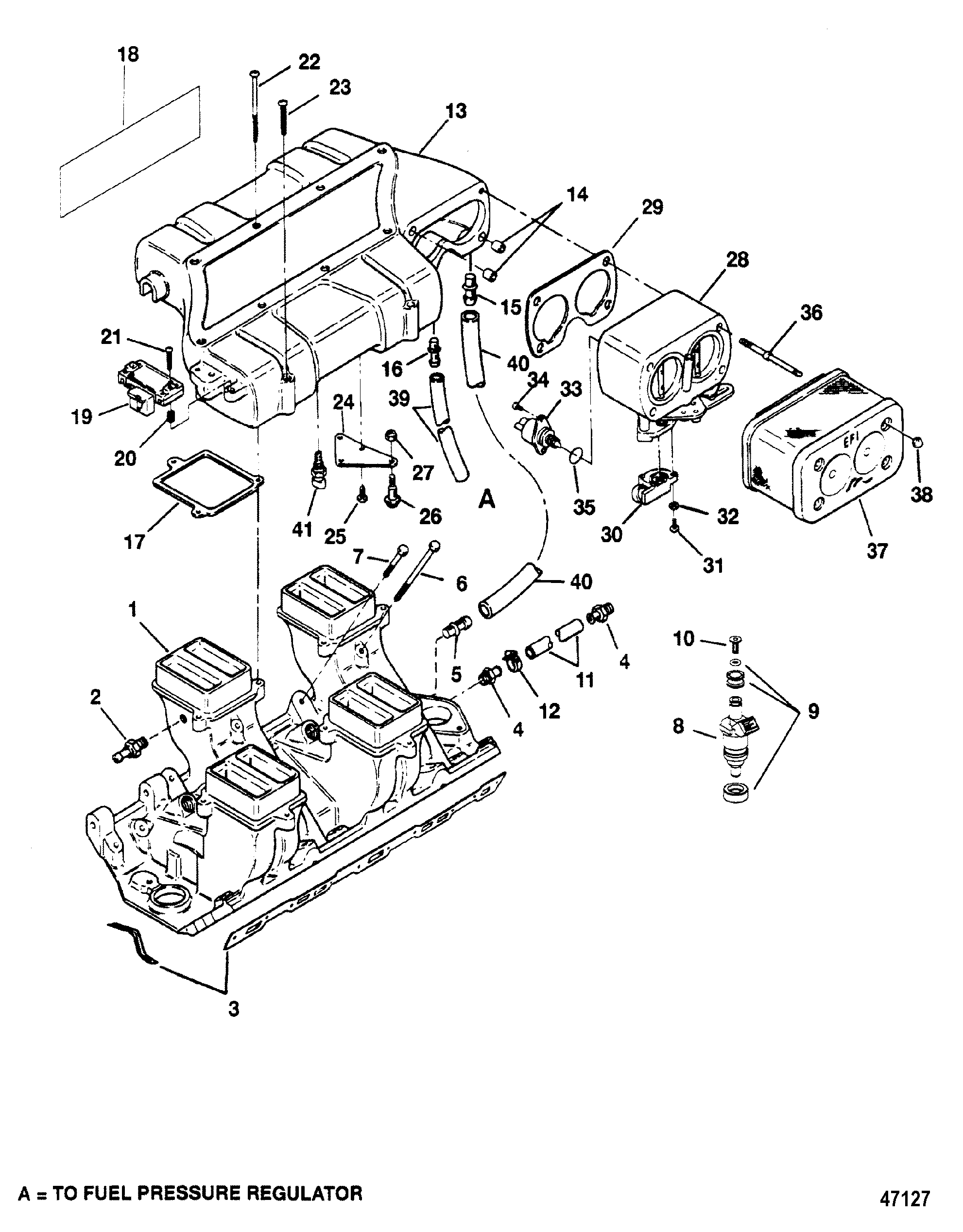

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805233A6



MANIFOLD ASSEMBLY, Intake 1 805233A2
2 22-805691



FITTING, (.250) Barb 1

3 27-805403A1



GASKET SET 1   3
4 22-806242



CONNECTOR 2

5 22-805519



FITTING, Barb (.250 Inch) (1/4 IN. BARB) 1
6 10-807640



SCREW, (.375-16 x 5.5) (5-1/2 IN.) 4    This Part is no longer available
7 10-807641



SCREW, (.375-16 x 1.75) (1-1/2 IN.) 12
8 805225A1
676-9-33100

NJECTOR ASSEMBLY, Fuel 8
9 25-805511A1


525-805511A1 SEALING KIT, Fuel Injector 8   3
10 35-17422



FILTER 8
11 32-8059871



HOSE, Water Pump To Intake Manifold 1
12 54-815504412



CLAMP, Worm Gear 2
13 805240A1



PLENUM ASSEMBLY, Intake 1    This Part is no longer available
14 23-52698



SLEEVE 2
15 22-805519



FITTING, Barb (.250 Inch) (1/4 IN. BARB) 1
16 22-805598



FITTING, (.1875) Barb (3/16 IN. BARB) 1
17 27-805522A1



GASKET SET 1   3
18 37-8238169



DECAL 1    This Part is no longer available
19 864856A1
676-9-33601

SENSOR ASSEMBLY 1 805217A1
20 26-805412



SEAL 1   3
21 10-805393



SCREW 2    This Part is no longer available
22 10-805391



SCREW, (.312-18 x 4.500) (4-1/2 IN.) 8
23 10-805390



SCREW, (.312-18 x 2.250) (2-1/4 IN.) 4
24 805413T



BRACKET, Throttle Cable 1    This Part is no longer available
25 10-73286



SCREW, (.250-20 x .500) Stainless Steel 3
26 10-96430



SHOULDER SCREW 1
27 11-814101



NUT, (.250-20) Stainless Steel 1
28 805243A12



THROTTLE BODY ASSEMBLY 1    This Part is no longer available
29 27-805396

700-30363
GASKET, Throttle Body 1   3
30 805226A1
676-9-33701

SENSOR ASSEMBLY, TPS 1
31 10-805400



SCREW, (#8-32 x .500) Stainless Steel 2
32 12-28001



WASHER, (.188 x .438 x .049) 2    This Part is no longer available
33 805224A1
676-9-33401

MOTOR ASSEMBLY, IAC 1
34 10-805400



SCREW, (#8-32 x .500) Stainless Steel 2
35 25-808547



O-RING 1
36 16-805399



STUD 4
37 807656A2



FLAME ARRESTOR 1 805401A2
38 11-805402



NUT, Acorn 4
39 32-8M0063567



HOSE 1 32-80617333
40 32-7381567



TUBING, (42.00 Inches Bulk) 1
41 805223T
676-9-42406

SENSOR 1
- 27-805396A95



GASKET SET 1
