200XS DFI 2.5L - Serial 0T235000 Thru 0T818180 - Steering Attaching Kit

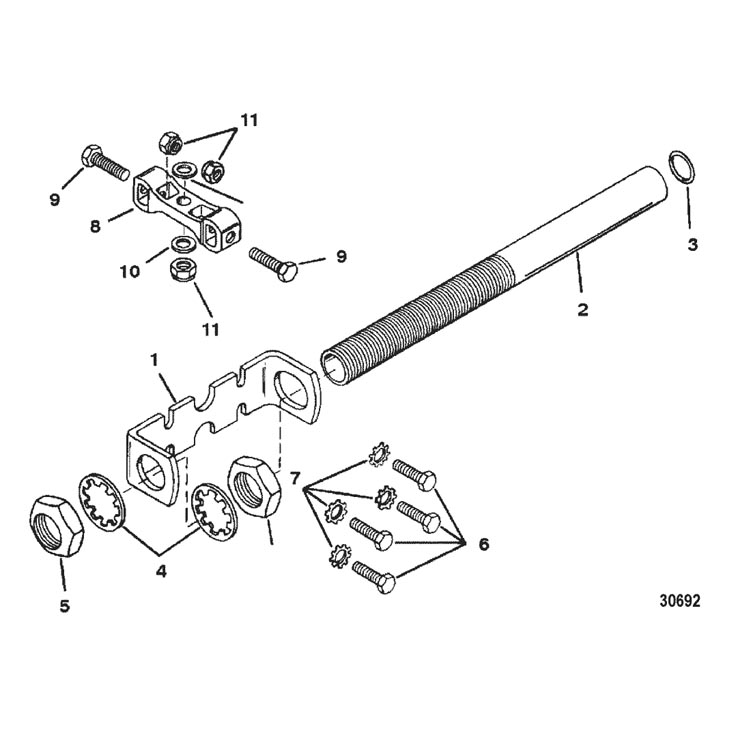

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Compressor Components
- Air Handler
- Air Handler Components
- Air Hoses
- Bottom Cowl
- Coil Plate Assembly
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And End Caps
- Cylinder Head
- Driveshaft Housing
- Electrical Plate Assembly
- Exhaust Plate
- Flywheel/Alternator
- Fuel Hoses
- Fuel Pump
- Fuel Rails
- Gear Housing(Driveshaft)(Std/Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Counter Rotation)(Sportmaster)
- Gear Housing(Prop Shaft)(Standard Rotation)(Sportmaster)
- Gear Housing, Driveshaft - Torquemaster
- Gear Housing, Propeller Shaft - Torquemaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Key Switch/Instrumentation/Accessories
- Oil Injection Components
- Oil Lines
- Oil Lines
- Power Trim Components
- Speedometer Pickup-Torquemaster
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Long)
- Swivel Bracket(Short)
- Throttle Lever And Shift Shaft
- Top Cowl
- Transom Brackets(Long)
- Transom Brackets(Short)
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 0 | 92876A8 | ATTACHING KIT, Steering | 1 | ||||||
| 1 | 41055A1 | BRACKET ASSEMBLY | 1 | ||||||
| 2 | 71565A2 | TUBE ASSEMBLY | 1 | ||||||
| 3 | 25-48462 | O-RING, (.614 x .070) | 1 | ||||||
| 4 | 13-821203 | LOCKWASHER | 2 | ||||||
| 5 | 11-8M0041651 | NUT, (.875-14) | 2 | 37984 | |||||
| 6 | 10-38601 | SCREW, (.250-28 x 1.250) | 4 | ||||||
| 7 | 13-78968 | LOCKWASHER, Internal (.250) | 4 | ||||||
| 8 | 850791T | COUPLER | 1 | ||||||
| 9 | 10-73732 | SCREW, (.375-24 x 1.120) | 2 | ||||||
| 10 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 2 | ||||||
| 11 | 11-826709113 | NUT, (.375-24) Stainless Steel | 1 |
