Vertical, size:4 x 16, 1348 sq in, copper-nickel tubes

Vertical, size:4 x 16, 1348 sq in, copper-nickel tubes

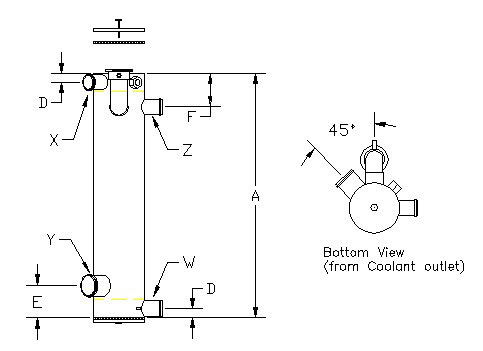

Vertical exchangers are single pass on the shell side, 3 pass on the tube (raw water) side. These exchangers have no expansion tank integrated into their design, and rely instead on an external overflow reservoir to capture coolant volumes which exceed system capacity when hot, and return them to the cooling system when it cools down. The shell is completely packed with tubing, providing the maximum heat transfer surface possible for each set of external dimensions. This exchanger is illustrated without a mounting bracket. We have mounting brackets for virtually any mounting configuration. The exchanger is mounted on the bracket with cushioning material, and held in position with stainless steel clamps (sold separately). Support is provided under the bottom end cap. All exchangers are supplied with a zinc anode. All Raw Water and Coolant connections are beaded hose connections. Other styles and dimensions are available on request. Connection configurations may also be specified to meet your individual system requirements. Vertical; size:4 x 16; 1348 sq in, copper-nickel tubes
