Vertical, size:4 x 20, 1763 sq in, copper tubes

Vertical exchangers are single pass on the shell side

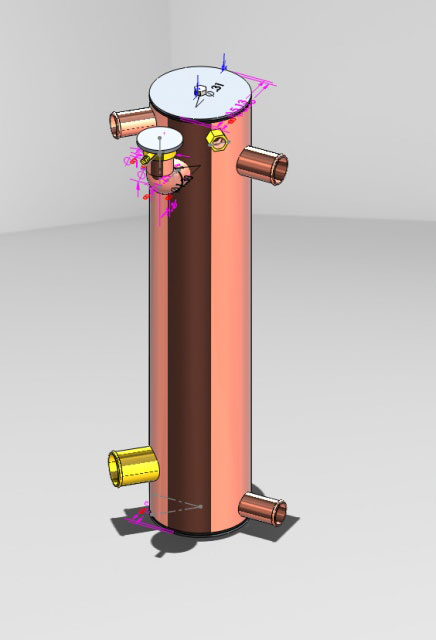

Vertical exchangers are single pass on the shell side, 3 pass on the tube (raw water) side. These exchangers have no expansion tank integrated into their design, and rely instead on an external overflow reservoir to capture coolant volumes which exceed system capacity when hot, and return them to the cooling system when it cools down. The shell is completely packed with tubing, providing the maximum heat transfer surface possible for each set of external dimensions. This exchanger is illustrated without a mounting bracket. We have mounting brackets for virtually any mounting configuration. The exchanger is mounted on the bracket with cushioning material
