Low Profile, size:5 x 24, 2209 sq in, copper-nickel tubes

Low Profile, size:5 x 24, 2209 sq in, copper-nickel tubes

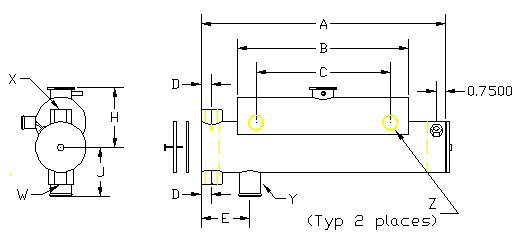

Low Profile exchangers are single pass on the shell side, 3 pass on the tube (raw water) side. These exchangers have an expansion tank, located in the upper portion of the shell, providing space for expansion without adding the height, as is required with the 'Piggy Back' design. This exchanger is illustrated without a mounting bracket. We have mounting brackets for virtually any mounting configuration. The exchanger is mounted on the bracket with cushioning material, and held in position with stainless steel clamps (sold separately). All exchangers are supplied with a zinc anode. All Raw Water and Coolant connections are beaded hose connections. Other styles and dimensions are available on request. Connection configurations may also be specified to meet your individual system requirements. Low Profile; size:5 x 24; 2209 sq in, copper-nickel tubes
