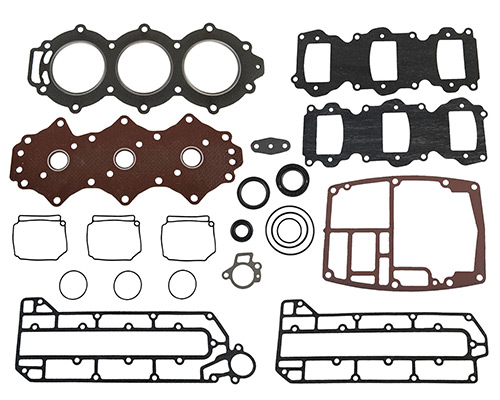

Powerhead Gasket Kit

Interchanges/Replaces

Yamaha Outboard

• 6H3-W0001-02-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-3831	GLM 34940 Mallory 9-63952 Yamaha Outboard 6H2-11181-00-00 6H2-11181-01-00 6H2-11181-A0-00 6H2-11181-A1-00 6H2-11181-A2-00	1	Head Gasket		N/A
18-0826	Yamaha Outboard 90430-14115-00	1	Drain Screw Gasket		N/A
18-99141	Yamaha Outboard 6H2-11193-00-00 6H2-11193-A1-00	1	Cover Gasket		N/A
18-0835	Mercury Marine 27-824853 27-8248531 Yamaha Outboard 62Y-12414-00-00 65W-12414-00-00 6H2-12414-00-00 6H2-12414-A1-00	1	Thermostat Gasket		N/A
18-99129	Yamaha Outboard 6H2-41112-00-00 6H2-41112-01-00 6H2-41112-A0-00	1	Exhaust Gasket		N/A
18-99128	Yamaha Outboard 6H2-41114-00-00 6H2-41114-A0-00	1	Exhaust Gasket		N/A
18-76690	Mallory 9-76690 Yamaha Outboard 93210-46M16-00	1	O-Ring		N/A
18-99143	Yamaha Outboard 6H2-13621-00-00 6H2-13621-A1-00	1	Valve Seal Gasket		N/A
18-7432	Yamaha Outboard 93210-32738-00	1	O-Ring		N/A
18-0849	Mallory 9-35345 Yamaha Outboard 650-24431-00-00 650-24431-A0-00	1	Fuel Pump Mounting Gasket		N/A
18-99130	Yamaha Outboard 6H2-45113-00-00 6H2-45113-A0-00	1	Exhaust Gasket		N/A
18-99125	Yamaha Outboard 6H2-13622-00-00 6H2-13622-A1-00	1	Intake Gasket		N/A
NSS	Yamaha Outboard 6H2-14984-00-00	3	Gasket, Float Chamber	No Image	N/A
NSS	Yamaha Outboard 93210-39ME4-00	3	O-Ring	No Image	N/A
NSS	Yamaha Outboard 93210-65M50-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 93106-18M01-00	1	Oil Seal	No Image	N/A
NSS	Yamaha Outboard 93102-30M23-00	1	Oil Seal	No Image	N/A
NSS	Yamaha Outboard 93102-36M24-00	1	Oil Seal	No Image	N/A
