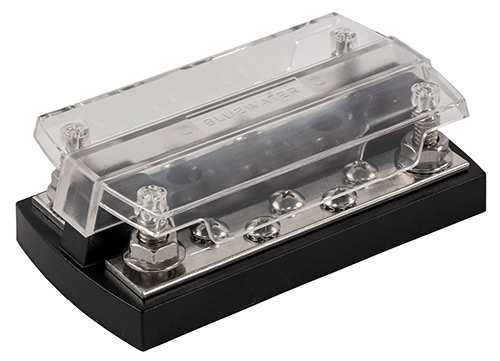

Bluewater Dual Stud Bus Bar

# 516-312723-B-022
Ask a question about this part
  • Combines negative and positive buses on one block
  • Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements
  • Same as Blue Seas 2723
Specifications
Maximum Voltage 300V AC
48V DC
Number of Screw Terminals 5 per bus
Number of Terminal Studs 2 per bus
Terminal Type #10-32 Screw
5/16" Stud
Continuous Rating 130A AC
150A DC
Base Material UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material Tin-Plated Copper CDA 110 / UNS 11000
Cover Material Clear Polycarbonate
Mounting Screw #10 (M5)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Stud Torque 120 in-lb (13.56 Nm)
Weight 0.61lb (0.28 kg)
Weight 0.61lb (0.28 kg)
MSRP: $45.00
Your Price: $39.99
 You Save: 11% off MSRP!
