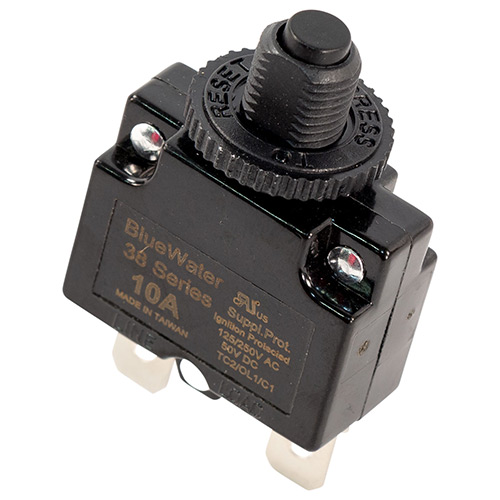

Breakers - 5 to 30 AMP Versions

Breakers - 5 to 30 AMP Versions

These breakers are the same units used in our engine harnesses. Be careful not to exceed original amperage rating of your existing harness.

• Input voltage rating: 125/250VAC; 32/50VDC
• Interrupting Capacity: 125/250VAC x 1,000A(UL 1077)
• Typical life: 1,000 operations at 200% overload.
• Insulation Resistance: >100MOHM (DC 500V)
• Dielectric Strength: > 1,500VAC/min.
