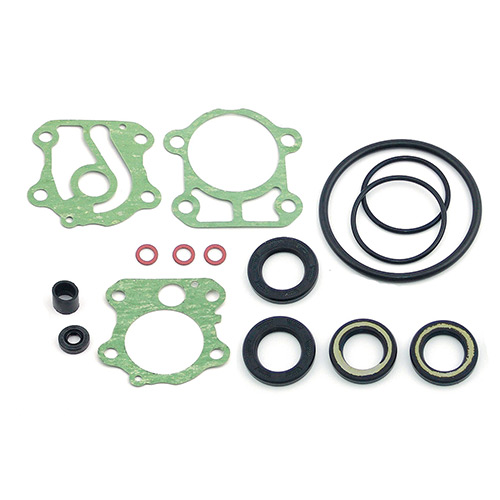

Seal Kit, Gear Housing

Interchanges/Replaces

Mallory

• 9-74504

Yamaha Outboard

• 6H3-W0001-22-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0267	Mallory 9-76423 Mercury Marine 26-82257M Yamaha Outboard 93106-09014-00	1	Oil Seal		N/A
18-7436	Mallory 9-76615 Yamaha Outboard 93210-46044-00	1	O-Ring		N/A
18-0240	Mallory 9-60382 Yamaha Outboard 688-44316-01-00 688-44316-A0-00	1	Water Pump Gasket		N/A
18-0756-1	Mallory 9-60380 Yamaha Outboard 6H2-44315-00-00 6H2-44315-A0-00	1	Water Pump Gasket		N/A
18-0757	Mallory 9-60309 Yamaha Outboard 6H2-44324-00-00 6H2-44324-A0-00	1	Outer Plate Gasket		N/A
18-0587	Mallory 9-76414 Yamaha Outboard 93101-25M03-00	2	Oil Seal		N/A
18-0297	Mallory 9-76413 Mercury Marine 26-82234M Yamaha Outboard 93101-23070-00	2	Oil Seal		N/A
18-4698	Mallory 9-60100 Mercury Marine 27-81987 27-81987M Yamaha Sterndrive 604-45342-00-00 90430-08020-00 90430-08801-00	3	Drain Fill Washer		N/A
18-1830	Mercury Marine 26-81426M Yamaha Outboard 663-44366-00-00	1	Water Seal Damper		N/A
NSS	Yamaha Outboard 93210-49046-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 93210-85M97-00	1	O-Ring	No Image	N/A
