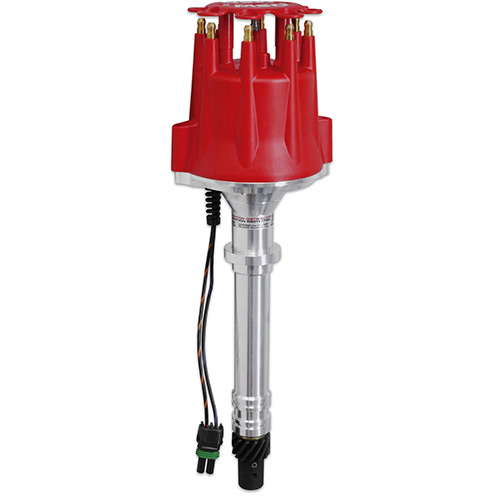

MSD Marine Pro-Billet Distributor - V8 Chevy

# 120-8560
Installation Instructions
Ask a question about this part
  • Designed for use in marine applications with Chevy V8 engines
  • CNC machined billet aluminum housing and billet aluminum base with two flame arrestor holes with brass screens
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Special oil tract improves lubrication to the distributor and cam gear
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Must be used with an MSD Ignition Control
  • Weathertight connectors are used for locked and sealed connections
  • Supplied with a bolt down HEI style distributor cap and rotor
  • Will not accept a vacuum advance canister
  • UL Approved
    MSRP: $552.00
    Your Price: $495.95
     You Save: 10% off MSRP!

    Additonal Info On This Product:

    MSD Marine Pro-Billet Distributor - V8 Chevy

    Each of these billet marinedistributors are the strongest most accurate distributor available today. Each unit is CNC machined from solid billet stock. The housing has an oversized shaft guided by sealed ball bearings. Each unit is equipped with flame arrestor suppression screens as well as being UL Marine certified. Each distributor is equipped with the very latest injection molded cap and plug wire retainer.
