Fuse Block STblade Bottom 4 circuit Kit

Fuse Block STblade Bottom 4 circuit Kit

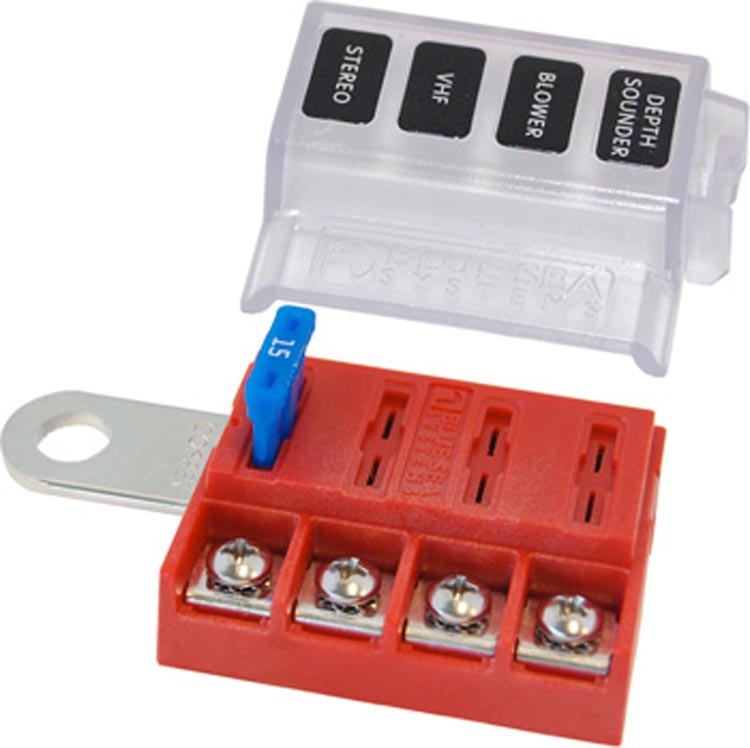

The Blue Sea Systems ST-Blade Battery Terminal Mount Fuse Block Kit is designed to allow easy installation of 4 ATO/ATC fused circuits. It features a ST-Blade battery terminal mount fuse block with 4 screw terminals for securing wire and mounts on the battery terminal stud. It also has a battery positive ground bar with 4 screw terminals.

Features:
• Maximum amperage: 100/Block, 30/Circuit
• Maximum voltage: 32VDC
• Circuits: 4
• Mounting: Clearance for 3/8" stud
• Screw terminal type: #8-32 Screw with captive star lock washer
Included:
• ST-Blade battery terminal mount fuse block
• ATO/ATC 15A Fuse
• (8) Nylon insulated ring terminals
• Battery terminal mount busbar
• Insulating covers
