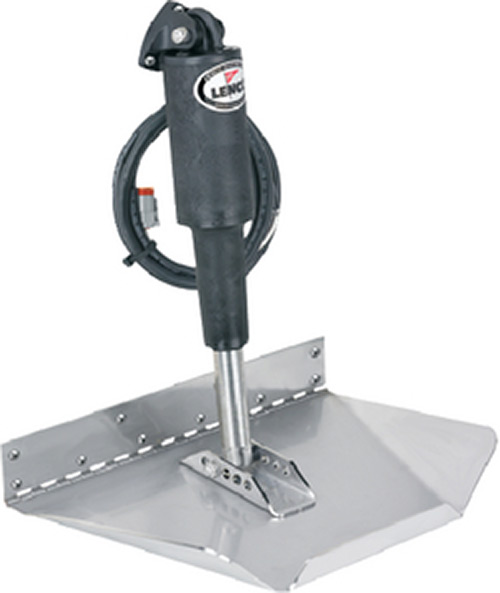

Trim Tab Kit-Airboat 9" x 14"

"Airboat-specific trim tab design. 14" wide planing surface provides greater lift and less drag. The hydrodynamically designed side protrusions will not "dig in" during a hard turn which will result in a safer ride. The bent-up rear lip provides lateral strength across the entire trim tab blade. Blade is 12-gauge 304 stainless steel with 2" hinge height and 1/8" diameter hinge pin. The adjustable actuator mounting bracket on the blade allows for proper fit on many different transom angles. In the retracted position, the airboat tab is safely protected when running dry.
Airboat Trim Tab Kits contains:
1) 12-gauge 304 stainless steel trim tab plane
1) #15055-001 actuator with 6' lead & Deutsch plug
1)#30133-002 14' actuator extension wiring harness
1) #15085-001 (116) upper mounting bracket with gland seal
Owner's/installation manual & stainless steel mounting hardware
Switch sold separately (15095001)"

"Airboat-specific trim tab design. 14" wide planing surface provides greater lift and less drag. The hydrodynamically designed side protrusions will not "dig in" during a hard turn which will result in a safer ride. The bent-up rear lip provides lateral strength across the entire trim tab blade. Blade is 12-gauge 304 stainless steel with 2" hinge height and 1/8" diameter hinge pin. The adjustable actuator mounting bracket on the blade allows for proper fit on many different transom angles. In the retracted position, the airboat tab is safely protected when running dry.
  • Airboat Trim Tab Kits contains:

  • 1) 12-gauge 304 stainless steel trim tab plane

  • 1) #15055-001 actuator with 6' lead & Deutsch plug

  • 1)#30133-002 14' actuator extension wiring harness

  • 1) #15085-001 (116) upper mounting bracket with gland seal

  • Owner's/installation manual & stainless steel mounting hardware

  • Switch sold separately (15095001)
"

Size: 9"L x 14"W"

Sold: Each

MSRP: $459.89
Your Price: $459.89
You Save: 0% off MSRP!
