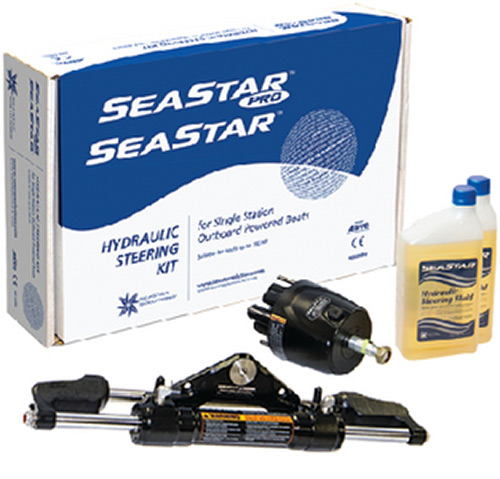

SEASTAR I STEERING KIT (SEASTAR) - Seastar I Steering Kit

• 5 turns lock-to-lock with 1.7 cu. in. helms
• Compact helm witha 4-7/16" footprint; needs 3" dash hole (Tilt requires larger dash cut out)
• Standard 3/4" tapered steering shaft
• Factory swaged HO51xx hoses sold separately

• HH52713 - SeaStar Helm 1.7 cu. in.
• HC53453 - SeaStar Pivot Cylinder
• HA5430 (2) - Hydraulic Oil (1 Liter)

• 5 turns lock-to-lock with 1.7 cu. in. helms


• Compact helm with 4-7/16" footprint; needs 3" dash hole (Tilt requires larger dash cut out)


• Standard 3/4" tapered steering shaft


• Factory swaged HO51xx hoses sold separately

• HH52713 - SeaStar Helm 1.7 cu. in.


• HC53453 - SeaStar Pivot Cylinder


• HA5430 (2) - Hydraulic Oil (1 Liter)

The world's most popular outboard hydraulic system offers smooth, super-efficient steering for today's high performance hulls. It's the OEM choice for center consoles, cruisers and more.Applications: Single and dual non-power-assisted outboard engines up to 350 HP (700 combined HP for counter-rotating duals) that have ABYC standard engine tilt tube. Ideal for cruisers, runabouts, center console boats, offshore fishing boats and many more. Suitable for speeds up to 60 MPH and dual station use (with purchase of extra helm, hose & fittings). Allows independent engine tilt in dual engine installations. Dual engines require purchase of a tie bar kit and extra hardware.Helm and cylinder equipped with adjustable O-ring fittings to simplify the installation process and allow for simple reorientation of the fittings after installation.
