Fuel Systems - Carburetor Kits

Interchanges/Replaces

GLM

• 23203

Johnson/Evinrude Outboard

• 313364
• 315232

Mallory

• 9-36803

Interchanges/Replaces

Yamaha Outboard

• 6E5-W0093-06-00
• 6G5-W0093-05-XX
• 6K7-W0093-03-00
• 6N6-W0093-01-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments

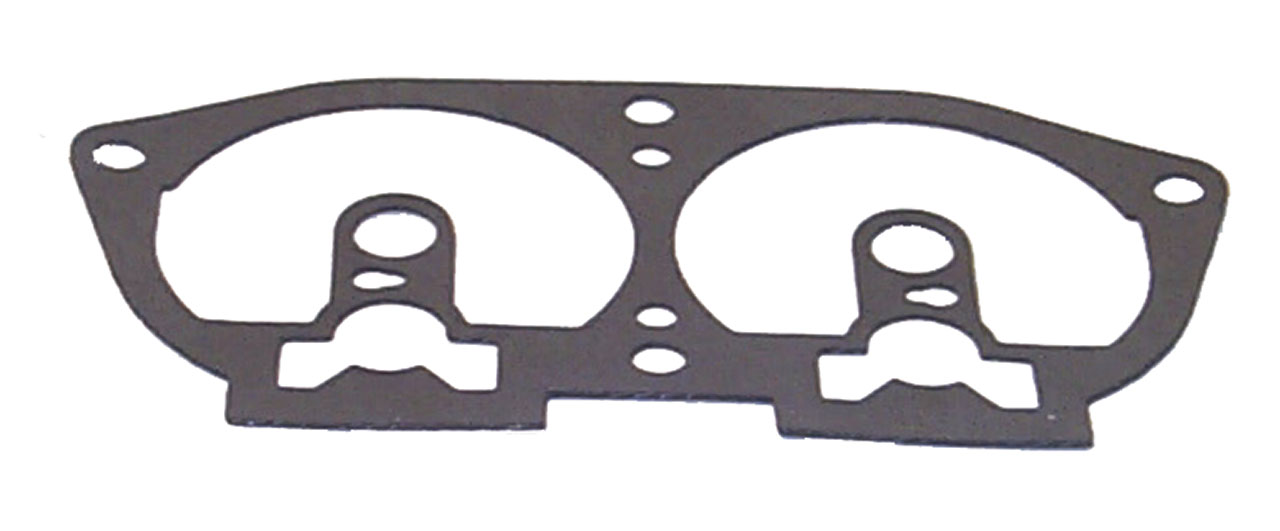

18-2592	Yamaha Outboard 6E5-14384-03-00	1	Float Bowl Gasket		N/A
18-0785	Mallory 9-60395 Yamaha Outboard 6E5-14198-00-00 6E5-14198-A1-00 6E5-14198-A2-00	1	Carburetor Mounting Gasket		N/A
18-7055	Yamaha Outboard 6E5-14546-00-00 6J8-14546-00-00	2	Needle Valve		N/A
NSS	Yamaha Outboard 6E5-14959-01-00	1	Gasket	No Image	N/A
NSS	Yamaha Outboard 6E5-14328-01-00	2	Plug	No Image	N/A
NSS	Yamaha Outboard 6E5-14386-02-00	2	Pin, Float	No Image	N/A
NSS	Yamaha Outboard 6E5-14394-00-00	2	Plug, Slow Jet	No Image	N/A
NSS	Yamaha Outboard 6E5-14997-00-00	2	O-Ring	No Image	N/A
NSS	Yamaha Outboard 6E5-14979-00-00	2	Gasket	No Image	N/A
NSS	Yamaha Outboard 6J8-14995-00-00	2	Gasket	No Image	N/A
NSS	Yamaha Outboard 6E5-14398-01-00	2	Gasket	No Image	N/A

Interchanges/Replaces

Mallory

• 9-37309

Mercury Marine

• 1395-8506

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-2803	GLM 32120 Mercury Marine 27-90430 27-904301	1	Carburetor Mounting Gasket		N/A
18-7233	GLM 40900 Mercury Marine 1395-7824	2	Needle & Seat		N/A

Interchanges/Replaces

Mallory

• 9-37310

Mercury Marine

• 1395-811691
• 1395-811691 2
• 1395-8116911
• 810750
• 8107501

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-36850	Mallory 9-36850 Mercury Marine 1395-811690 1395-8116901 810739 8107391	1	Needle & Seat Assembly		N/A
NSS	Mercury Marine 27-677511	1	Gasket	No Image	N/A

Interchanges/Replaces

Mallory

• 9-37311

Mercury Marine

• 1395-8116913

Mercury Sport Jet

• 1395-8116913

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0641	GLM 37590 Mercury Marine 27-828292 Mercury Sport Jet 27-828292	1	Carburetor Mounting Gasket		N/A
18-36850	Mallory 9-36850 Mercury Marine 1395-811690 1395-8116901 810739 8107391	1	Needle & Seat Assembly		N/A
NSS	Mercury Marine 1395-809758	2	Gasket	No Image	N/A
NSS	Mercury Marine F10064	1	Float Support Shaft	No Image	N/A

Interchanges/Replaces

Mercruiser Stern Drive

• 13220

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0467	Mallory 9-61001 Mercruiser Stern Drive 27-41610 27-49814	1	Carburetor Mounting Gasket		N/A

Additional Details:

• For: DT40 / DT65 / DT85 / DT140

Interchanges/Replaces

Mallory

• 9-37402

Suzuki Outboard

• 13910-94400

List of Containing Parts

Additional Details:

• Fits: Suzuki DF4-DF6 (2005 & Up)

Interchanges/Replaces

Suzuki Outboard

List of Containing Parts

Key Features:

• (3) of 18-7767 = (1) of 6H2-W0093-01-00

Interchanges/Replaces

Yamaha Outboard

• 6H3-W0093-00-00
• 6H3-W0093-01-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7056	Mercury Marine 17050M 804186 Yamaha Outboard 67F-1439A-00-00 6H2-14591-00-00 6H2-14590-00-00 6H2-14590-01-00	1	Needle Valve		N/A
18-7067	Mercury Marine 11489M Nissan/Tohatsu Outboard 369-03231-0 Yamaha Outboard 6G1-14985-00-00	1	Float		N/A
NSS	Yamaha Outboard 676-14966-00-00	1	Cap	No Image	N/A
NSS	Yamaha Outboard 663-14159-00-00	1	Clip	No Image	N/A
NSS	Yamaha Outboard 688-14548-00-00	1	Pin, Float Arm	No Image	N/A
NSS	Yamaha Outboard 6G1-14984-00-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 97980-04114-00	1	Screw w/ Washer	No Image	N/A
NSS	Yamaha Outboard 93210-04230-00	1	O-Ring	No Image	N/A
NSS	Yamaha Outboard 663-14126-00-00	1	Gasket	No Image	N/A
NSS	Yamaha Outboard 692-14923-00-00	1	Pilot Screw	No Image	N/A
NSS	Yamaha Outboard 93210-15M52-00	1	O-Ring	No Image	N/A

Interchanges/Replaces

Mercury Marine

• 84456M

Yamaha Outboard

• 689-W0093-00-00
• 689-W0093-01-00
• 689-W0093-02-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0775	Mercury Marine 27-80572 27-80572M Yamaha Outboard 648-14198-00-00 648-14198-A0-00	1	Carburetor Mounting Gasket		N/A
18-7066	Mercury Marine 80591M Yamaha Outboard 648-14385-00-00	1	Float		N/A
NSS	Yamaha Outboard 648-14384-01-00	1	Float Chamber Gasket	No Image	N/A
NSS	Yamaha Outboard 98517-04012-00	1	Screw, Pan Head	No Image	N/A
NSS	Yamaha Outboard 92990-04100-00	2	Washer, Spring	No Image	N/A
NSS	Yamaha Outboard 61K-14390-00-00	1	Needle Valve Assembly	No Image	N/A
NSS	Yamaha Outboard 647-14323-00-00	1	Screw, Air Adjusting	No Image	N/A
NSS	Yamaha Outboard 90386-05002-00	2	Bush	No Image	N/A
NSS	Yamaha Outboard 646-14397-00-00	1	O-Ring	No Image	N/A

Interchanges/Replaces

GLM

• 40630

Mercury Marine

• 8107493

Mercury Sport Jet

• 8107493

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-0641	GLM 37590 Mercury Marine 27-828292 Mercury Sport Jet 27-828292	1	Carburetor Mounting Gasket		N/A
NSS	Mercury Marine 1395-809758	2	Gasket	No Image	N/A

Interchanges/Replaces

GLM

• 40640

Mercury Marine

• 1395-9024

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7847		1	Fuel Pump Diaphragm		N/A
18-2800	GLM 31860 Mercury Marine 27-26891 27-64659 27-75791 27-757911	1	Carburetor Mounting Gasket		N/A
NSS	Mercury Marine 1399-5207	1	Gasket, Strainer Cover	No Image	N/A

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7047	Honda Outboard 16011-ZV4-005	1	Needle Valve Assembly		N/A
18-2470	Honda Outboard 16221-ZV4-610	1	Carburetor Gasket		N/A

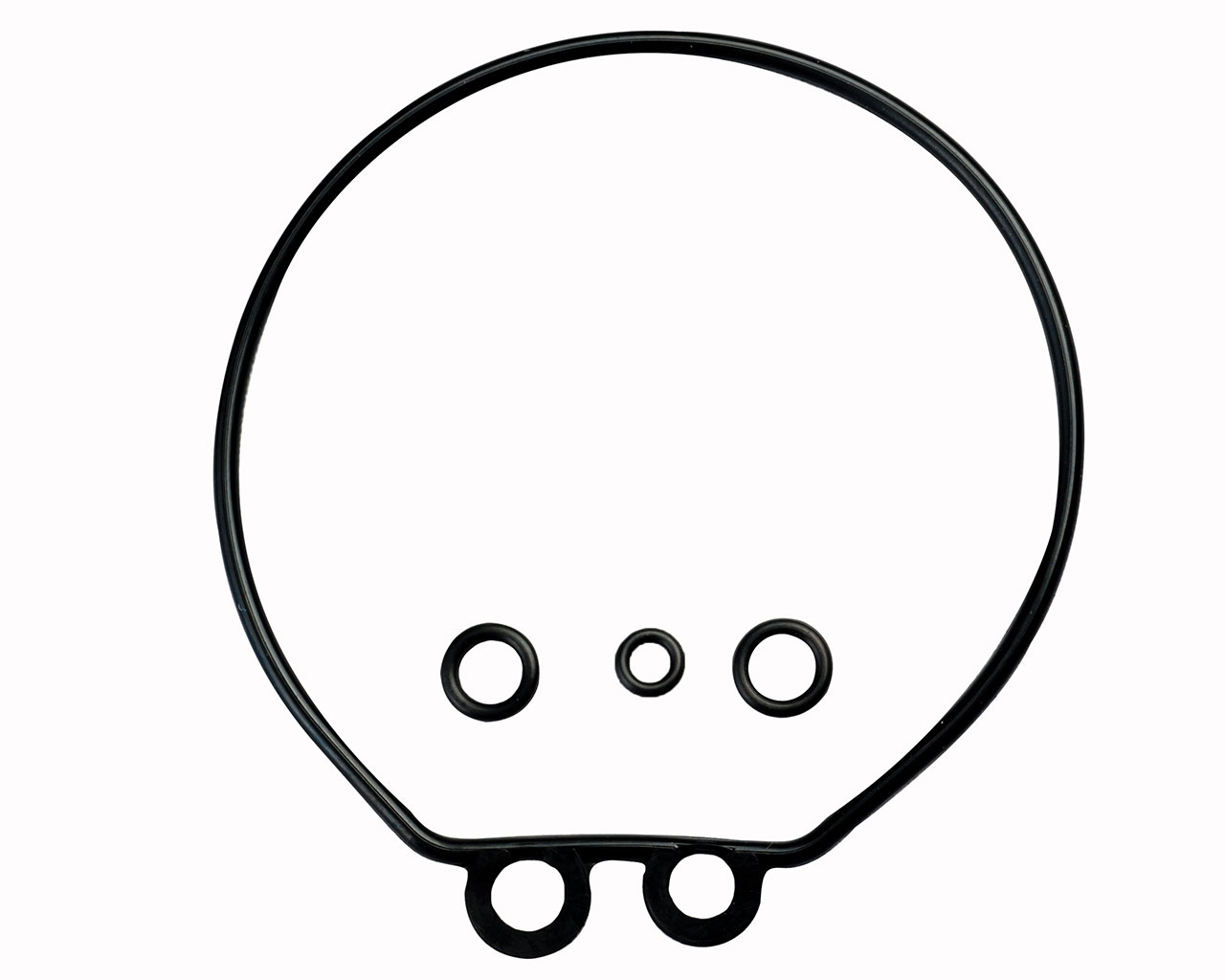

18-2480	Honda Outboard 16010-ZV4-005	1	Gasket Set		N/A

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7047	Honda Outboard 16011-ZV4-005	1	Needle Valve Assembly		N/A
18-2471	Honda Outboard 16221-ZW9-000	1	Carburetor Gasket		N/A
18-2481	Honda Outboard 16010-ZW9-003	1	Gasket Set		N/A

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7047	Honda Outboard 16011-ZV4-005	1	Needle Valve Assembly		N/A
18-2472	Honda Outboard 16221-ZW1-000	1	Carburetor Gasket		N/A
18-2480	Honda Outboard 16010-ZV4-005	1	Gasket Set		N/A

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7048	Honda Outboard 16011-147-305 16011-881-741	1	Needle Valve Assembly		N/A
18-2473	Honda Outboard 16201-881-850	1	Carburetor Gasket		N/A
18-2482	Honda Outboard 16010-881-003	1	Gasket Set		N/A

Interchanges/Replaces

Yamaha Outboard

• 63V-W0093-00-00
• 63V-W0093-01-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7054	Mercury Marine 11490M Nissan/Tohatsu Outboard 369-03240-0 Yamaha Outboard 6G1-14546-00-00 6G1-14546-01-00	1	Needle Valve		N/A
18-7064	Yamaha Outboard 63V-14985-00-00	1	Float		N/A
NSS	Yamaha Outboard 97980-04114-00	4	Screw, with Washer	No Image	N/A
NSS	Yamaha Outboard 63V-14126-00-00	1	Gasket	No Image	N/A
NSS	Yamaha Outboard 6H2-14548-00-00	2	Pin, Float Arm	No Image	N/A
NSS	Yamaha Outboard 679-14923-00-00	1	Screw, Pilot	No Image	N/A
NSS	Yamaha Outboard 6G1-14398-00-00	2	Washer	No Image	N/A

Interchanges/Replaces

Yamaha Outboard

• 677-W0093-00-00
• 677-W0093-04-00

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments

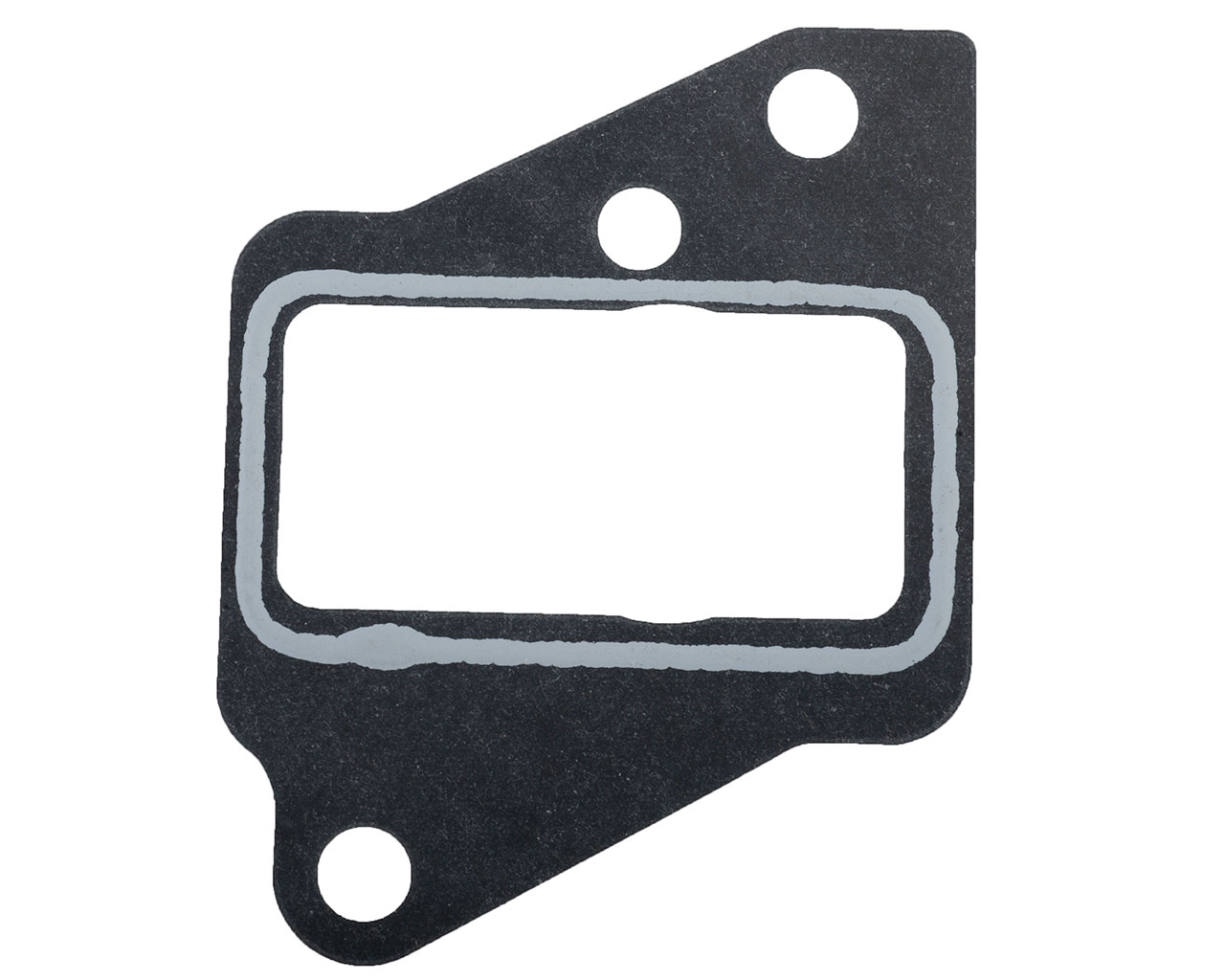

18-99145	Mercury Marine 27-83245M Yamaha Outboard 677-14198-00-00 677-14198-A0-00 677-14198-A1-00	1	Carburetor Gasket		N/A
18-7079	Yamaha Outboard 626-14390-90-00	1	Needle Valve		N/A
18-7065	Yamaha Outboard 647-14385-00-00	1	Float		N/A
18-99146	Mercury Marine 27-43115M 27-83292M Yamaha Outboard 677-14384-00-00 677-14384-01-00	1	Float Chamber Gasket		N/A
NSS	Yamaha Outboard 6E7-14341-70-00	1	Nozzle, Main	No Image	N/A
NSS	Yamaha Outboard 647-14386-10-00	1	Pin, Float	No Image	N/A
NSS	Yamaha Outboard 6E7-14157-00-00	1	Cover, Mixing	No Image	N/A

Additional Details:

• Style: Repair kit for Rochester 2 barrel carburetor
• Fits: 1964-1983 MCM GM 4 & 6 Cyl. Engines

Interchanges/Replaces

GLM

• 76068

Mercruiser Stern Drive

• 1397-2067
• 1397-2631
• 1397-2634
• 1397-2637
• 1397-3459
• 1397-3464
• 1397-7542
• 1397-7543
• 1397-7547
• 1397-8872
• 1397-8873
• 823427A1

Additional Details:

• Fits: Carburetors WME-1, 1A, 1B, 4, 5, 6, 6A, 7, 7B, 8, 9, 10, 10A, 11, 14, 15, 15A, 17, 18
• Fits: Carburetors WME-20, 20A, 21, 21A, 22, 22B, 23, 24, 26, 27, 28, 32, 32B, 33, 34, 35
• Fits: Carburetors WME-36, 36A, 37, 37A, 38, 39A, 40, 40A, 42, 42A, 43, 44, 45, 50, 52, 53
• Fits: Carburetors WME-57, 58, 63, 64, 65, 66, 67, 68, 69, 79, 81

Interchanges/Replaces

GLM

• 40650

Mercury Marine

• 1395-811222
• 1395-823635
• 1395-8236351
• 1395-8236352
• 1395-8236353
• 1395-8236354
• 1395-9599

List of Containing Parts

Sierra Item #	OE/Competitor #	Quantity	Description	Image	Comments
18-7062	GLM 40950 Mercury Marine 1395-879194011 1395-95951	1	Inlet Valve		N/A
18-0324	GLM 32770 Mallory 9-60048 Mercury Marine 27-15172 27-15172-3 27-151724 27-93214	1	Carburetor to Manifold Gasket		N/A
