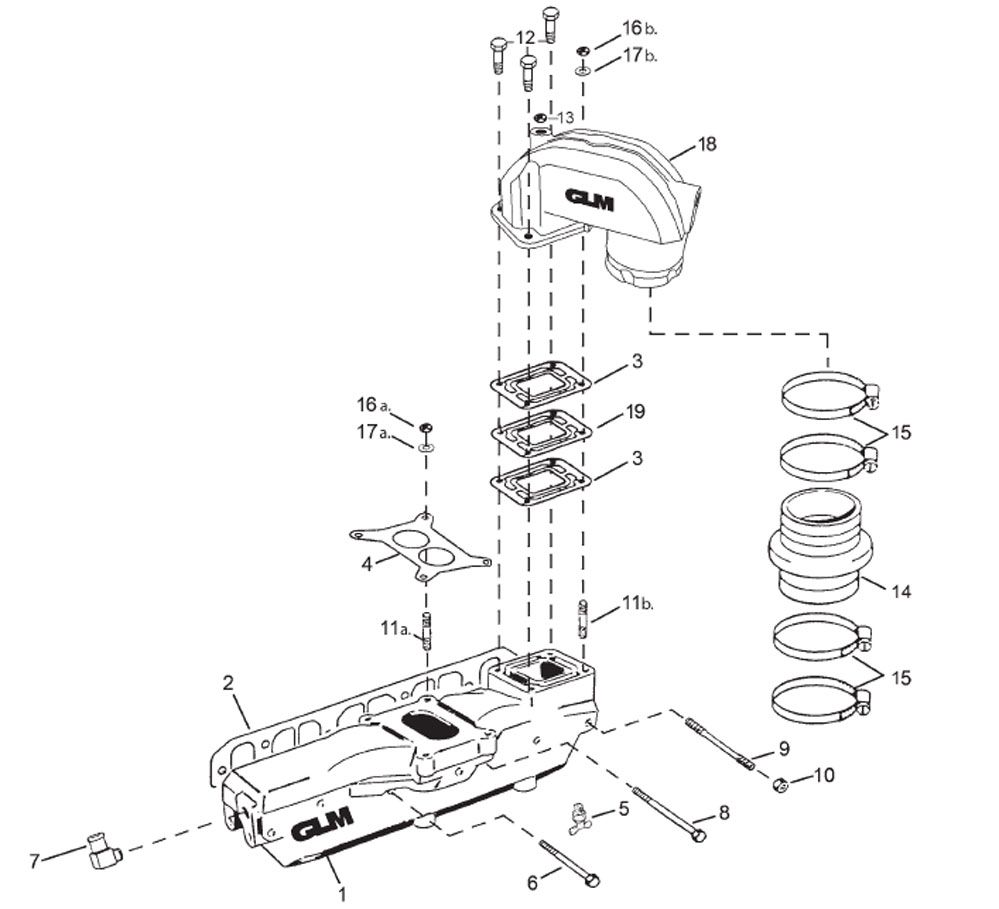

Model 3.0GS - 181 CID, 4-Cyl. (1992 & Up)
Ref No. | GLM No. | OEM No. | Description | Qty. |
---|---|---|---|---|
1 | 51450 | 3858870 | Exhaust Manifold - Cast Iron | 1 |
2* | 33580 | 3853256 | Gasket - Exhaust Manifold | 1 |
3* | 33770 | 3850495 | Gasket - Exhaust Elbow | 2 |
4* | 30382 | 3853283 | Gasket - Carburetor | 1 |
5* | 13993 | 82745 | Drain Cock | 1 |
6 | 22315 | 3853430 | Screw | 3 |
7* | 13970 | 3852538 | Elbow Fitting - Exhaust Manifold | 1 |
8 | 21757 | 3853431 | Screw | 1 |
9 | 22488 | 3853378 | Stud - Exhaust Manifold | 2 |
10 | 21248 | 3853404 | Locknut | 2 |
11A | 22482 | 3853373 | Stud - Carburetor | 4 |
11B | 22482 | 3853373 | Stud - Exhaust Manifold | 1 |
12 | 21753 | 3853397 | Screw - Exhaust Elbow | 3 |
13 | 21887 | 22-36382 | Plug | 2 |
14 | 89222 | 3863450 | Exhaust Hose | 1 |
15 | 01090 | 3852604 | Clamp | 4 |
16A | 19354 | 11-862902 | Nut - Carburetor | 4 |
16B | 19354 | 11-862902 | Nut - Exhaust Manifold | 1 |
17A | 21664 | 12-20084 | Washer - Carburetor | 4 |
17B |
21664 | 12-20084 | Washer - Exhaust Manifold | 1 |
18 | 51340 | 3863071 | Exhaust Elbow | 1 |
19 | 50007 | 3853628 | Restrictor | 1 |
20 | 58450 | - | Manifold Set | 1 |
* Included with Manifold No. 51450 |
