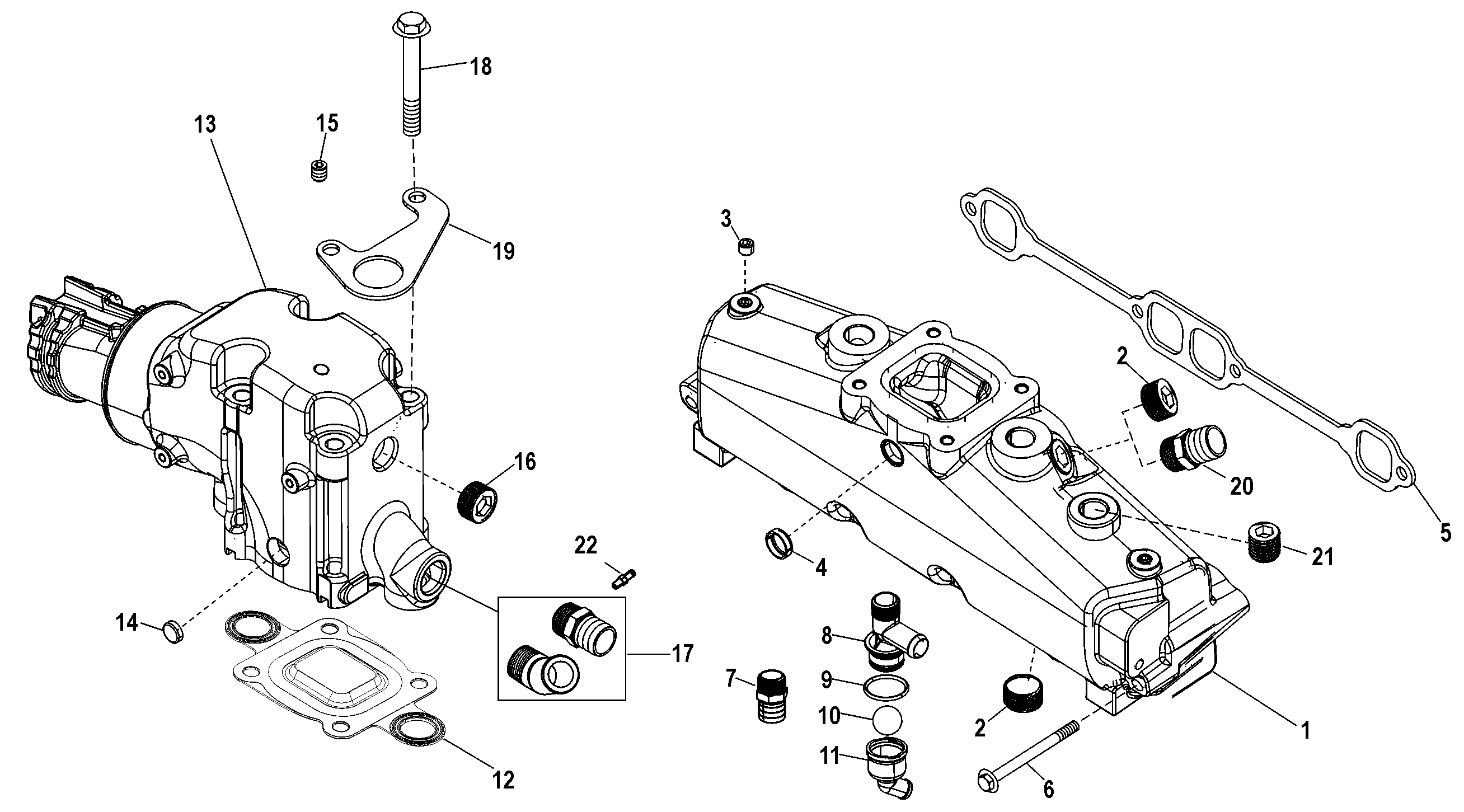

| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865735A02 | MANIFOLD ASSEMBLY, Exhaust | 2 | ||||||
| 2 | 22-428611 | FITTING, Pipe - Brass (.750-14) | 8 | ||||||
| 3 | 22-390721 | PLUG, Pipe (.125-27) Brass | 2 | 22-29380 22-39072 22-52644 22-35268 22-21290 |
|||||
| 4 | 19-864689 | PLUG, Expansion, Expansion | 3 | ||||||
| 5 | 27-33395 | GASKET | 2 | ||||||
| 6 | 8M2000229 | SCREW, (.375-16 x 4.75) | 8 | ||||||
| 7 | 22-866725 | FITTING, Straight (.750-14) | 2 | ||||||
| 8 | 22-863786A1 | FITTING ASSEMBLY, Drain | 2 | ||||||
| 9 | 25-864701 | O-RING, (1.112 x .103) | 1 | ||||||
| 10 | 30-863129 | BALL | 1 | ||||||
| 11 | 862994T | FITTING | 1 | ||||||
| 12 | 27-864850A02 | GASKET, Elbow, Restrictor | 2 | ||||||
| 12 | 27-864549A02 | GASKET, Elbow, Block Off | 2 | ||||||
| 13 | 864591T02 | ELBOW ASSEMBLY, Exhaust | 2 | ||||||
| 15 | 22-73379 | PLUG, (.250-18) | 1 | ||||||
| 17 | 22-864623A1 | FITTING ASSEMBLY, Barb, With Tapped Fitting | 1 | ||||||
| 17 | 22-865159 | FITTING, 45 Degree | 1 | ||||||
| 18 | 10-865982057 | SCREW, (.375-16 x 7.50) | 8 | ||||||
| 19 | 864263 | BRACKET, Flushing Attachment | 1 | ||||||
| 20 | 22-12524 | PLUG, (.375-18 x .475) Brass | 2 | ||||||
| 21 | 22-384071 | PLUG, Pipe (.500) | 2 | 37372 | |||||
| 22 | 8M2000225 | FITTING, (3/8 x 1/8) | 1 |
