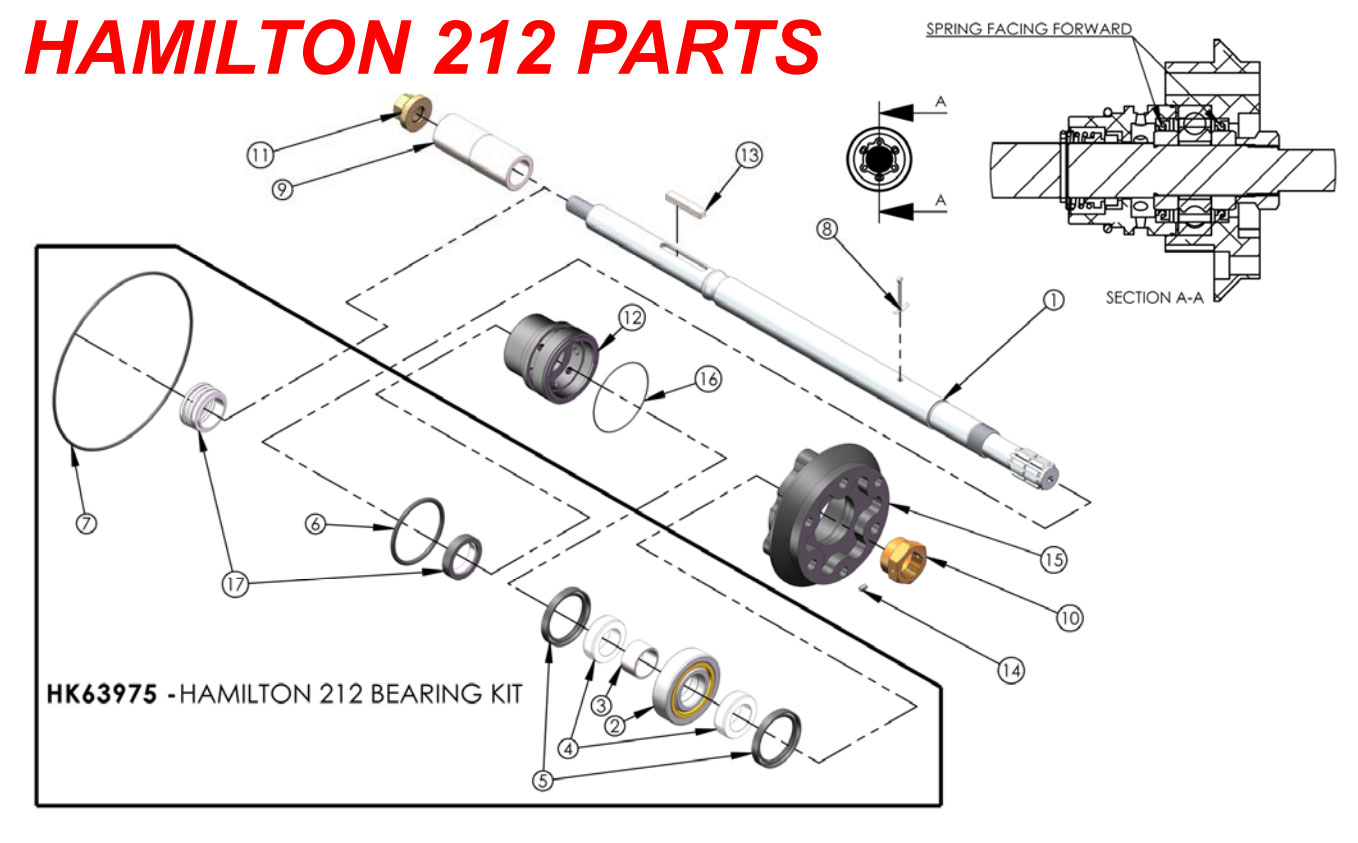

Hamilton 212
ITEM# PART # DESCRIPTION QTY.
1 H107528 HAMILTON MAINSHAFT (PUMPSHAFT) 1
2 H63975 THRUST BEARING HAMILTON 212 1
3 Hl07529 BEARING CARRIER 1
4 H107612 SEAL SLEEVE 2
5 H61458 SEAL HAMILTON 212 BEARING 2
6 H61464 O-RING SEAL FACE HOLDER 1
7 H200999 O-RING HAMILTON 212 STATOR 1
8 H201073 PIN SPLIT SEE (F0316CP) 1
9 H107567 WATER BEARING SLEEVE 1
10 H107532 HAMILTON BEARING RETAINING NUT 1
11 H203395 IMPELLER-COUPLING NUT 1
12 H111718 SEAL FACE HOLDER 1
13 H110343 IMPELLER / COUPLING KEY 1
14 H201244 6MM x l.0MM SET SCREW 1
15 H110202 BEARING CAP HAMILTON 212 1
16 H6l4960 O-RING SEAL FACE HOLDER 1.5 X 87 MM 1
17 H61500 JET ROTARY SEAL (SEE SL4008). 1
BEARING CARRIER
Your Price:
$63.99

BEARING CARRIER

152-H107529

BEARING CARRIER


BEARING RETAINER NUT SOCKET SET SCREW SS
Your Price:
$5.99

BEARING RETAINER NUT SOCKET SET SCREW SS

152-H201244

BEARING RETAINER NUT SOCKET SET SCREW SS


CUTLASS BEARING, MARINE BEARING
Your Price:
$441.99

CUTLASS BEARING, MARINE BEARING

152-H106011

CUTLASS BEARING, MARINE BEARING


HAMILTON 212 BEARING KIT
Your Price:
$659.99

HAMILTON 212 BEARING KIT

152-HK63975

HAMILTON 212 BEARING KIT


HAMILTON 212 SHAFT ASSEMBLY
Your Price:
$2,224.99

HAMILTON 212 SHAFT ASSEMBLY

152-HA107528

HAMILTON 212 SHAFT ASSEMBLY


HAMILTON 212, BEARING  HOUSING BILLET
Your Price:
$584.99

HAMILTON 212, BEARING HOUSING BILLET

152-H110202

HAMILTON 212, BEARING  HOUSING BILLET


Hamilton Jet Drive Zinc
Your Price:
$67.99

Hamilton Jet Drive Zinc

462-70-111593

Hammilton Jet Drive Zinc

Cone Size: 2-1/4" Length x 13/16" Width x 13/16" Height


HAMILTON, BEARING RETAINING NUT
Your Price:
$167.99

HAMILTON, BEARING RETAINING NUT

152-H107532

HAMILTON, BEARING RETAINING NUT


HAMILTON, MAINSHAFT (PUMPSHAFT)
Your Price:
$1,044.99

HAMILTON, MAINSHAFT (PUMPSHAFT)

152-H107528

HAMILTON, MAINSHAFT (PUMPSHAFT)


IMPELLER / COUPLING KEY
Your Price:
$52.99

IMPELLER / COUPLING KEY

152-H110343

IMPELLER / COUPLING KEY


IMPELLER-COUPLING NUT
Your Price:
$130.99

IMPELLER-COUPLING NUT

152-H203395

IMPELLER-COUPLING NUT


Mechanical Seal Assembly (SD, YJ & Hamilton 212)
Your Price:
$89.99

Mechanical Seal Assembly (SD, YJ & Hamilton 212)

152-SL4008

Mechanical Seal Assembly (SD, YJ & Hamilton 212)


O-RING, HAMILTON 212, HAND HOLE COVER
Your Price:
$15.99

O-RING, HAMILTON 212, HAND HOLE COVER

152-H200985

O-RING, HAMILTON 212, HAND HOLE COVER


O-RING, HAMILTON 212, SEAL FACE HOUSING
Your Price:
$15.99

O-RING, HAMILTON 212, SEAL FACE HOUSING

152-H61464

O-RING, HAMILTON 212, SEAL FACE HOUSING


O-RING, HAMILTON 212, STATOR
Your Price:
$26.99

O-RING, HAMILTON 212, STATOR

152-H200999

O-RING, HAMILTON 212, STATOR


O-RING, HAMILTON 212, WATER OFFTAKE
Your Price:
$8.99

O-RING, HAMILTON 212, WATER OFFTAKE

152-H064726

O-RING, HAMILTON 212, WATER OFFTAKE


PIN, COTTER  (RS3501 [ MUST USE AT NUT] )
Your Price:
$69.99

PIN, COTTER (RS3501 [ MUST USE AT NUT] )

152-HA103170

PIN, COTTER  (RS3501 [ MUST USE AT NUT] )


SEAL FACE HOLDER
Your Price:
$323.99

SEAL FACE HOLDER

152-H111718

SEAL FACE HOLDER


SEAL SLEEVE
Your Price:
$161.99

SEAL SLEEVE

152-H107612

SEAL SLEEVE


SEAL, HAMILTON 212, BEARING
Your Price:
$45.99

SEAL, HAMILTON 212, BEARING

152-H61458

SEAL, HAMILTON 212, BEARING


THRUST BEARING (HAMILTON 212)
Your Price:
$281.99

THRUST BEARING (HAMILTON 212)

152-H63975

THRUST BEARING (HAMILTON 212)


WATER BEARING SLEEVE
Your Price:
$441.99

WATER BEARING SLEEVE

152-H107567

WATER BEARING SLEEVE
