Splash Plate Bolt & "O" Ring Kit (std. & 1")

Splash Plate Bolt & "O" Ring Kit To view and download the PDF Splash Plate Instruction CLICK HERE

Splash Plate Bolt & O-Ring Kit, used for attaching a IMCO high performance 0" or 1" lower to a Mercury Bravo or XR drive.

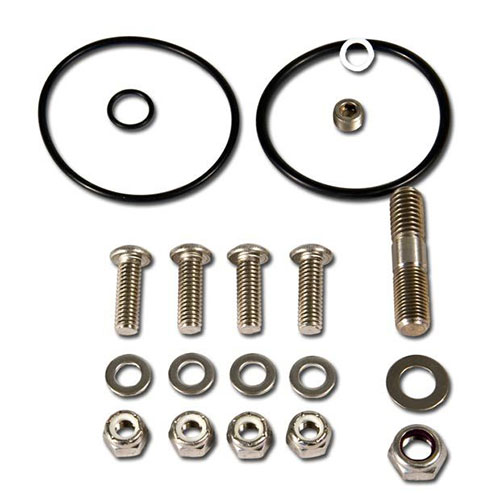

Kit Includes






QTY Description P/N





4 5/16 x1" Button Head Screws S/S 08-040705081





4 5/16" AN Flat Washers S/S 08-100700001





4 5/16 Nylock Nuts S/S 08-080708001





1 7/16 x2" Stud S/S 08-130904121





1 7/16" AN Washer S/S Thin 08-160900001





1 7/16-20 Nylock Nut S/S Thin 08-090904001





1 1/8" NPT Pipe Plug S/S 09-2007





1 O-Ring (Cooling Water Passage) 11-2014





1 O-Ring (PTFE Oil Passage) 11-4011





1 O-Ring (Water Passage) 11-2143





1 O-Ring (Alignment Spacer) 11-2228





1 Tube Loctite 271 09-2038





MSRP: $28.00
Your Price: $28.00
You Save: 0% off MSRP!
