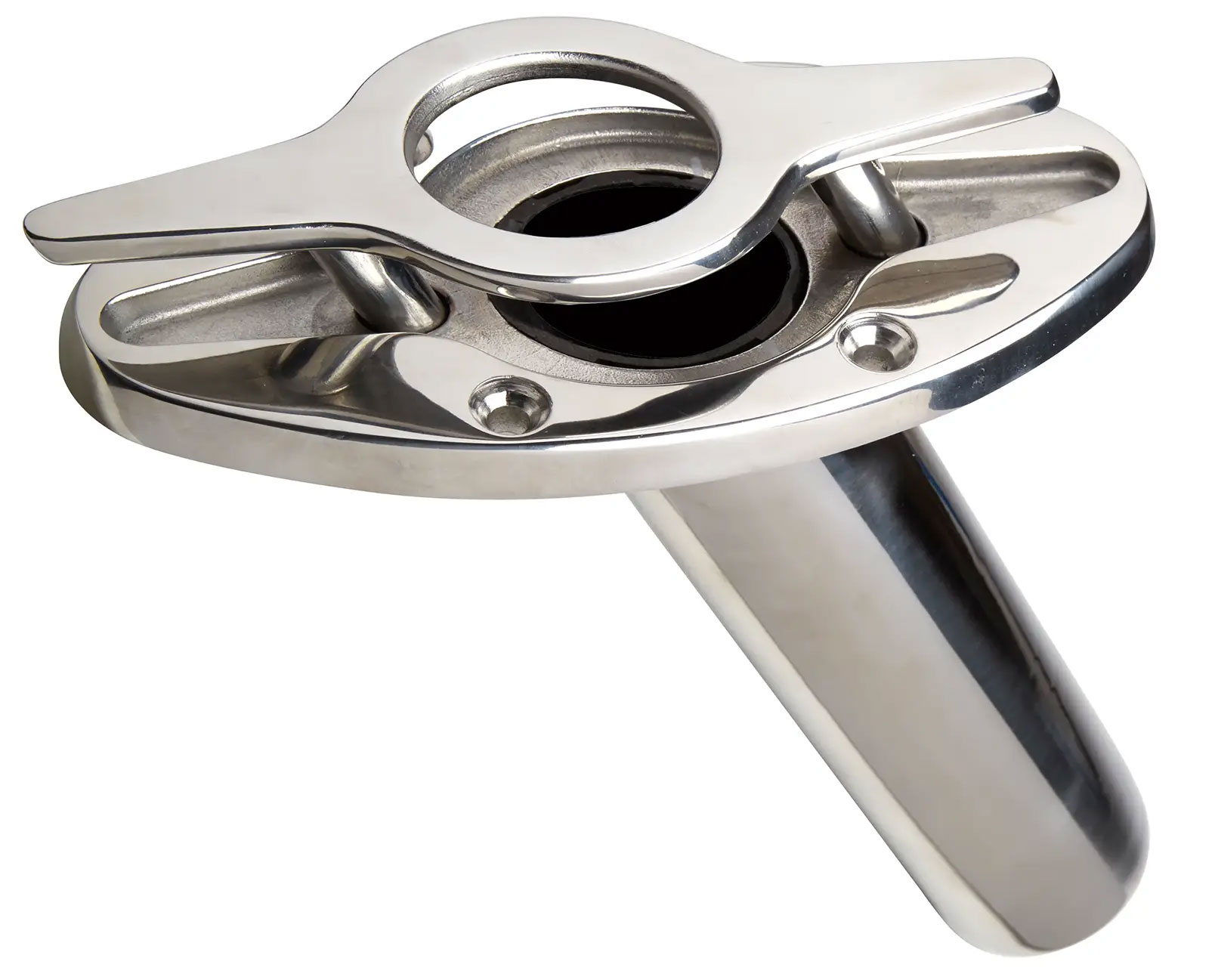

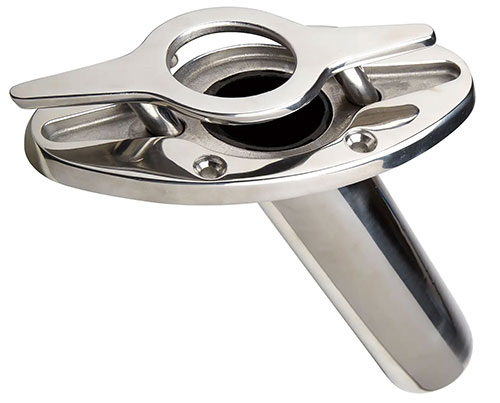

Combination Cleat and Fishing Rod Holder

FEATURES

• Made of marine grade 316 stainless steel.
• Saves Room on the gunnel.  Eliminates the need for two separate installations.
• Available in 0, 15, and 30-degree angles.
• Max line size 1/2"

INSTALLATION

Each cleat/rod holder is shipped with a backing plate, which also serves as the cut-out template. Use the supplied backing plate as a template to scribe the outline of the cut-out. After cutting out the shape, insert the cleat/rod holder into the opening and transfer mounting holes from cleat onto deck. Fasten with four 1/4" diameter screws (not included) and four nuts (not included). If you wish to attach a hose to the drain, use a 5/8" ID hose. This step is not necessary for all installations.
