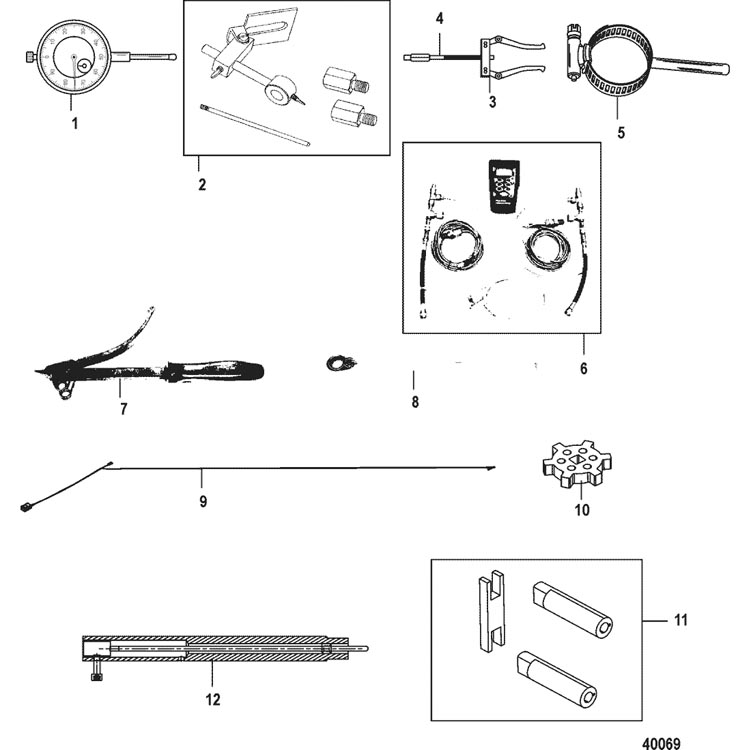

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 91-58222A1 | DIAL INDICATOR TOOL | 1 | ||||||
2 | 91-83155 | ADAPTER KIT, Dial Indicator | 1 | ||||||
3 | 91-46086A1 | PULLER JAW ASSEMBLY | 1 | ||||||
4 | 91-85716 | PULLER BOLT TOOL, Bearing Carrier | 1 | ||||||
5 | 91-8M0053505 | INDICATOR TOOL, Backlash | 1 | 78473 | |||||
6 | 91-8M0105244 | PRESSURE METER, Digital | 1 | No Longer Available | |||||
7 | 91-52344 | FLYWHEEL HOLDER TOOL, Teeth Type | 1 | ||||||
8 | 91-809905001 | WRENCH, Torque Adaptor | 1 | ||||||
9 | 91-895040K01 | PRIMER KIT, Power Steering Module | 1 | ||||||
10 | 91-896661 | TOOL, Fuel Filter | 1 | ||||||
11 | 91-899015A01 | TOOL KIT, Upper Mount Alignment | 1 | ||||||
12 | 91-805382T01 | TOOL, Extension-Dial Indicator | 1 | ||||||
- | 91-89897 | HOLDING TOOL, Dial Indicator | 1 | ||||||
- | FT8950 | TESTER KIT | 1 | ||||||
- | 91-804998T | DRAIN/FILL TOOL, Gearlube | 1 | No Longer Available | |||||
- | 889283A01 | TOOL KIT, Fuel Priming | 1 |
