200 VERADO 4-STROKE 4 CYL - Serial 1B517159 and Up - Adaptor Plate Hose Routings

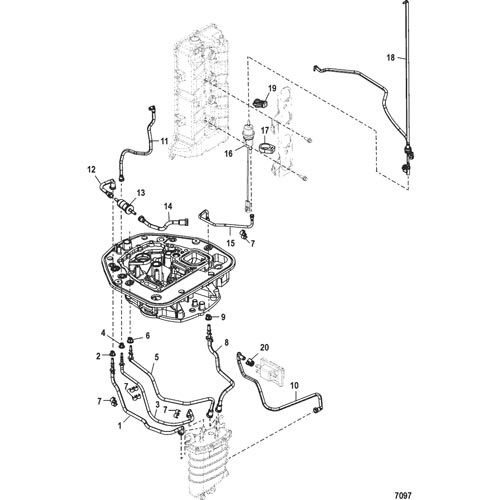

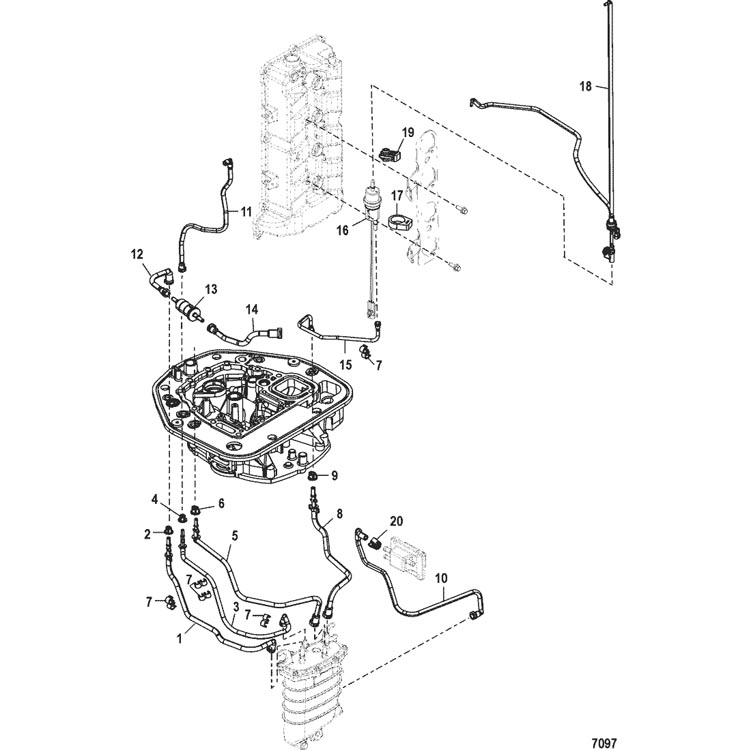

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold Hose Routings
- Charge Cooler/Intake Manifold(Gen I) End Cap Not Serviced
- Charge Cooler/Intake Manifold(Gen II) End Cap Serviced
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Prop Shaft-Counter Rotation 2B026816 & below
- Gear Housing, Prop Shaft-Counter Rotation 2B026817 & up
- Gear Housing, Propeller Shaft-Std Rotation 2B026816 & below
- Gear Housing, Propeller Shaft-Std Rotation 2B026817 & up
- Induction Components
- Mercathode Kit
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Powerhead Gasket Set Components
- Rear Cowl
- Shift Components
- Starboard Cylinder Block/Oil Cooler(1B830999 and Below)
- Starboard Cylinder Block/Oil Cooler(1B831000 and Above)
- Starter Motor
- SuperCharger
- Swivel Bracket and Steering Arm
- Tools
- Tools
- Top Cowl
- Transom Brackets
- Water Separator Filter Kit, 8M0046336
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-8M0087072 | HOSE, Fuel | 1 | 896222 | |||||
| 2 | 25-884546 | GROMMET | 1 | ||||||
| 3 | 32-8M0087082 | HOSE | 1 | 896227 | |||||
| 4 | 25-884546 | GROMMET | 1 | ||||||
| 5 | 32-8M0087074 | HOSE, Fuel | 1 | 896647 | |||||
| 6 | 25-884546 | GROMMET | 1 | ||||||
| 7 | 888523001 | CLIP | 5 | ||||||
| 8 | 32-8M0087084 | HOSE, Fuel | 1 | 896240 | |||||
| 9 | 25-884546 | GROMMET | 1 | ||||||
| 10 | 32-8M0087071 | HOSE, Water | 1 | 896225 | |||||
| 11 | 32-8M0072528 | HOSE, To CAC | 1 | 896226 | |||||
| 12 | 32-8M0087068 | HOSE, Fuel | 1 | 896223 | |||||
| 13 | 35-879885Q | FILTER, Fuel | 1 | 879885T | |||||
| 14 | 32-8M0087089 | HOSE, Fuel, To Fuel Rail | 1 | 896224 | |||||
| 15 | 32-8M0087073 | HOSE | 1 | 896646 | |||||
| 16 | 884545A02 | CANISTER ASSEMBLY | 1 | ||||||
| 17 | 25-897434 | GROMMET | 1 | ||||||
| 18 | 8M0081797 | VENT ASSEMBLY, Purge | 1 | 896693A05 | |||||
| 19 | 25-897452 | GROMMET | 1 | ||||||
| 20 | 54-815504104 | CLAMP, Worm Gear | 1 |
