200 VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Driveshaft Housing
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 Thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components

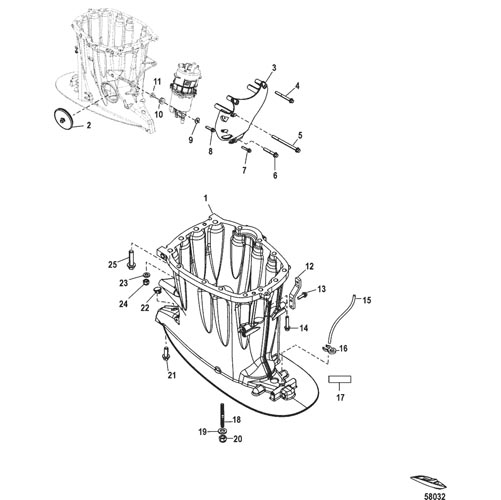

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 1500-8M0113286 | HOUSING, Driveshaft Long, Black | 1 | 8M0103297 | |||||
1 | 1500-8M0103298 | HOUSING, Driveshaft X-Long, Black | 1 | ||||||
2 | 25-889568001 | GROMMET | 1 | ||||||
3 | 889656T01 | SHROUD | 1 | ||||||
4 | 10-88552675 | SCREW, (M8 x 75) | 2 | ||||||
5 | 10-885526120 | SCREW, (M8 x 120) | 2 | ||||||
6 | 10-88552650 | SCREW, (M8 x 50) | 2 | ||||||
7 | 10-88552640 | SCREW, (M8 x 40) | 1 | ||||||
8 | 10-88552635 | SCREW, (M8 x 35 MM) | 3 | ||||||
9 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 3 | ||||||
10 | 25-834985 | GROMMET | 3 | ||||||
11 | 23-856954 | BUSHING | 3 | ||||||
12 | 897784A01 | BRACKET KIT, Upper Chap | 2 | ||||||
13 | 10-88552520 | SCREW, (M6 x 20 MM) Stainless Steel | 2 | ||||||
14 | 10-88552630 | SCREW, (M8 x 30) | 1 | ||||||
15 | 32-85944975 | TUBING, (72.00 Inches Bulk), Cut to 64 Inches) | 1 | ||||||
16 | 889831001 | RETAINER | 1 | ||||||
17 | NSS | Decal-Oil Drain | 1 | Not Sold Separate | |||||
18 | 16-8M0008031 | STUD, (M12 x 1.75 x 52) | 4 | ||||||
19 | 12-856982 | WASHER, (.500 x .810 x .090) Stainless Steel | 4 | ||||||
20 | 11-897926 | NUT, (M12), Nylon Insert | 4 | ||||||
21 | 10-8M0102995 | SCREW, (M12) | 1 | ||||||
22 | 19-824928001 | PLUG, Rubber | 1 | ||||||
23 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 10 | ||||||
24 | 11-884412 | NUT | 10 | ||||||
25 | 10-88552845 | SCREW, (M12 x 45) | 4 |
