250 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Mount Cradle

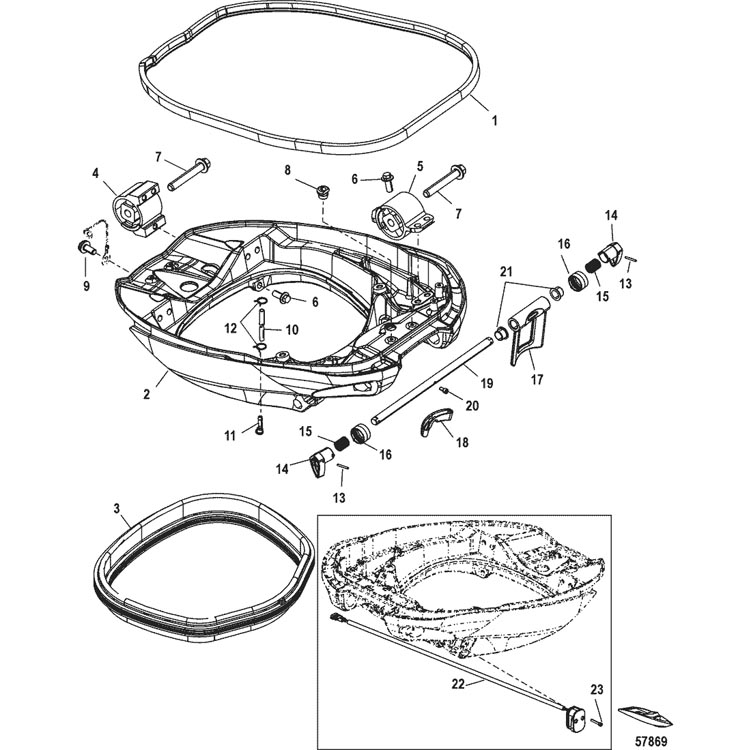

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0077359         SEAL 1
2 8M0052577         CRADLE ASSEMBLY, Mount 1
3 NSS         Seal 1   Not Sold Separate
4 8M0103708         MOUNT, Rear 2
5 8M0103365         MOUNT, Front 2
6 10-889745030         SCREW, (M12 x 30) 12
7 10-896531090         SCREW, (M16 x 90) 4
8 25-12602002         GROMMET 1
9 10-8M0098784         SCREW, M6 X 1 X 12 1
10 32-8M0108355         HOSE, (57.00 Inches Bulk), Cut to 35 Inches 1 8M0047428
11 22-895797001         FITTING, Telltale 1
12 54-895851         CLAMP, (8.00 Inches) 2
13 17-73194         PIN, Roll (.125 x 1.12) 2
14 880649002         LEVER, Tilt Lock 2
15 24-47968         SPRING 2
16 889540A03         CLUTCH KIT 1
17 8M0055029         BRACKET, Tilt Lock 1
18 8M0076907         PAD, Tilt Lock 1
19 880650003         SHAFT, Tilt Lock 1
20 10-889546         SCREW, (M5 x 10) 1
21 31-8806641         BEARING, (.625 Inch) 2
22 8M0010626         SENSOR, Trim Position-Black 1
23 10-889547         SCREW, (M5 x 30) 2
