250 VERADO 4-STROKE 6 CYL - Serial 1B227000 Thru 1B381711 - Upper Shift Components
Other Sub-Sections:
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Driveshaft Housing
- Electrical Box Components
- Fuel Supply Module
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Induction Components
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Steering Cylinder
- Powerhead Gasket Set Components
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor/Electrical Cable Bracket Mounting
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components

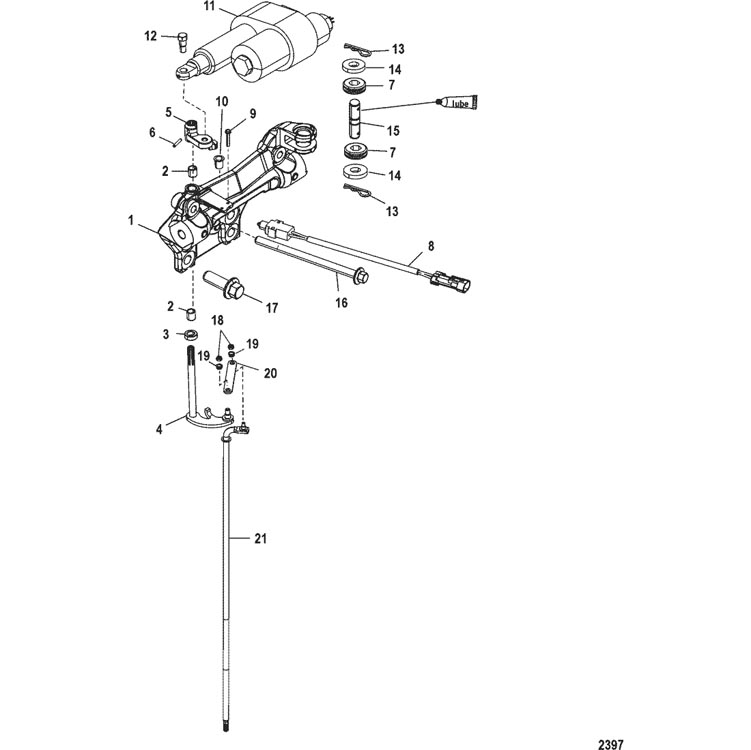

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
- | 888994T04 | BRACKET ASSEMBLY, Front Mount | 1 | 888994T03 | |||||
1 | NSS | Bracket | 1 | Not Sold Separate | |||||
2 | 23-892417 | BUSHING | 2 | ||||||
3 | 23-8M0047763 | SPACER | 1 | 892049 | |||||
4 | 8M0026131 | SHIFT SHAFT | 1 | No Longer Available | |||||
5 | 889727001 | BELL CRANK | 1 | ||||||
6 | 17-25319 | PIN, (.125 x 0.75 Inches) | 1 | ||||||
7 | 25-833155 | GROMMET | 2 | ||||||
8 | 87-8M0052939 | SWITCH | 1 | 889514A01 | |||||
9 | 10-88075020 | SCREW, (M3 x 20) | 2 | ||||||
10 | 23-85999 | BUSHING | 1 | ||||||
11 | 8M0048114 | SHIFT ACTUATOR | 1 | ||||||
12 | 10-8855091 | SCREW | 1 | ||||||
13 | 18-885512 | COTTER PIN | 2 | ||||||
14 | 12-885511003 | WASHER | 2 | ||||||
15 | 17-895770 | Pin, Pivot | 1 | ||||||
16 | 10-895811155 | SCREW, (M10 x 155) | 2 | ||||||
17 | 10-88510940 | SCREW, (M14) | 4 | ||||||
18 | 11-401386 | NUT, (M6) Stainless Steel | 2 | ||||||
19 | 23-97896 | BUSHING | 2 | ||||||
20 | 885505 | LINK, Shift Shaft | 1 | ||||||
21 | 8M0048178 | SHAFT, Shift (Long) | 1 | 888987001 | |||||
21 | 8M0048179 | SHIFT SHAFT, (X-Long) | 1 | 888987002 | |||||
21 | 8M0048180 | SHIFT SHAFT, (XX-Long) | 1 | 888987003 |
