6.2L MPI 300 - 2A530776 and Up - Raw Water Cooling (Bravo) Sea Pump Hoses

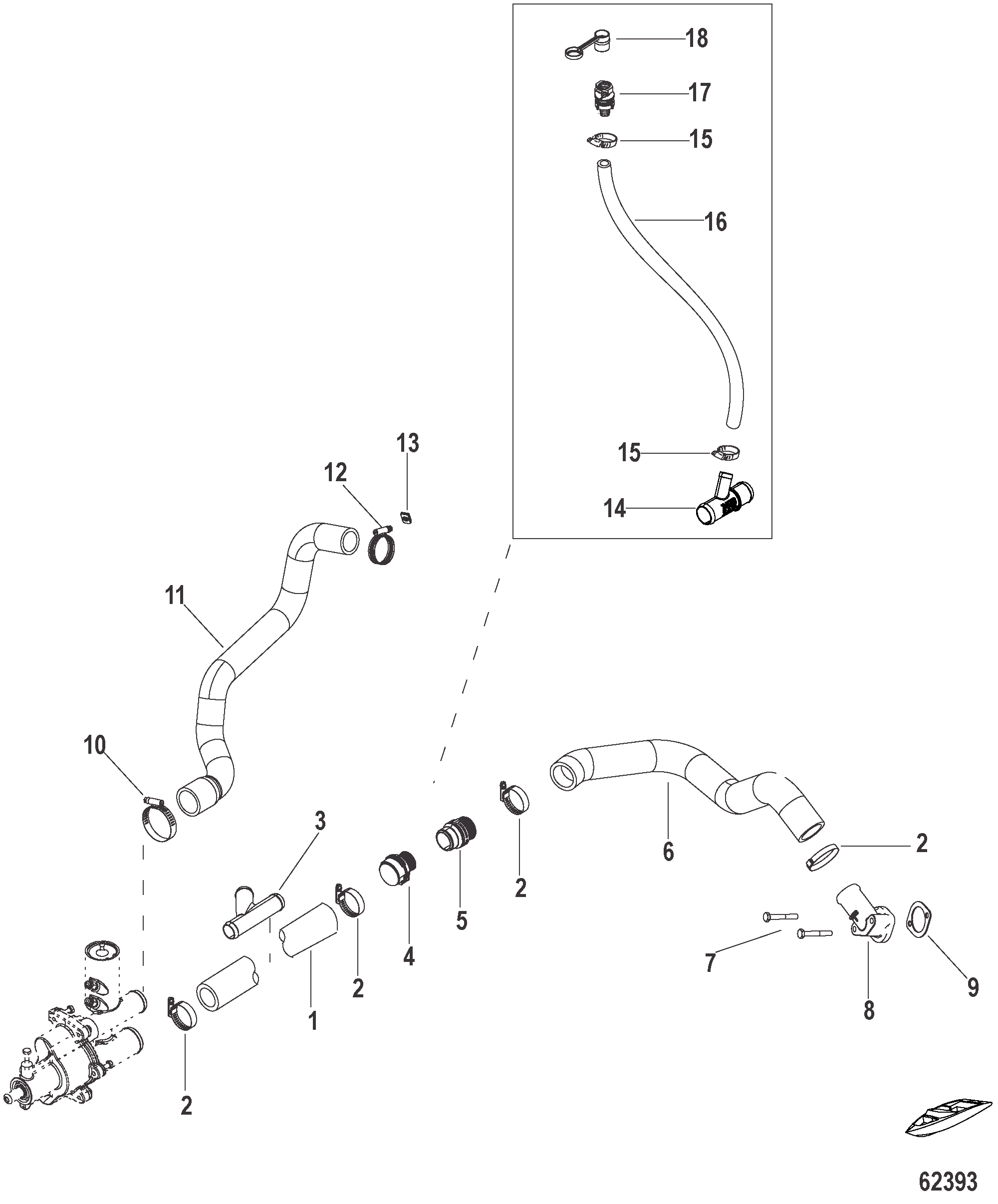

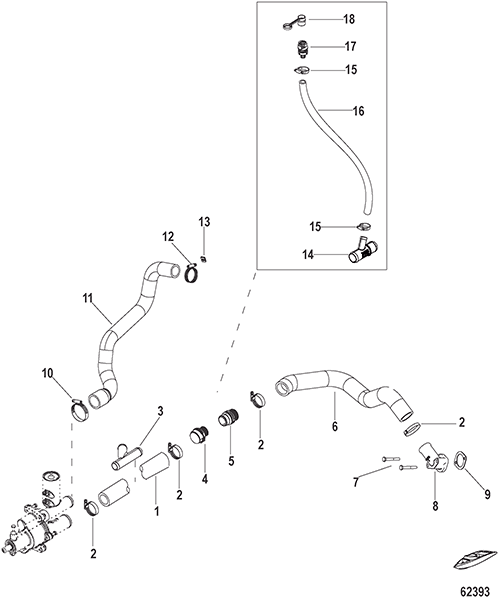

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Electrical Components Bracket and Propulsion Control Module
- Electrical Components Starter, Alternator, and Coil Bracket
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Flywheel and Coupler
- Fresh Water Cooling Cooling Hoses
- Fresh Water Cooling Crossover Assembly
- Fresh Water Cooling Heat Exchanger
- Fresh Water Cooling Sea Pump Hoses
- Front Cover and Circulating Pump
- Fuel Supply Module 2A575398 and Below
- Fuel Supply Module 2A575399 and Up
- Fuel Supply Module and Rail
- Harnesses
- Intake Manifold Assembly
- Jackshaft Components
- Maintenance Kits
- Mercathode Kit
- Oil Fill Tube
- Oil Pan and Pump
- Overhaul Gasket Set 6.2L
- Pistons and Connecting Rods
- Poppet Valve Assemblies
- Raw Water Cooling (Bravo) Sea Pump Hoses
- Raw Water Cooling Cooling Hoses
- Raw Water Cooling Crossover Assembly
- Remote Oil
- Sea Water Pump
- Service and Support Material
- Shift Bracket Bravo
- Shift Bracket Digital Throttle and Shift
- Steering System and Drive Lube Bottle
- Top and Front Covers
- Trim Pump and Motor Components
- Trim Pump Assembly
- Water Distribution Housing Air Actuated Drain
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
| 1 | 0032 | OEM: 525-32-8M0062666 | HOSE (96.00 Inches Bulk) Cut to Length | 1 | ||
| 2 | 0054 | OEM: 525-54-815504222 | CLAMP Worm Gear (1.98 DIameter) | AR | ||
| 3 | 0022 | OEM: 525-22-864727 | FITTING Y, (3) 1-1/4 In. OD Hose Barbs | Dual Drain Applications | AR | |
| 4 | 0022 | OEM: 525-22-865362 | QUICK CONNECT Replace if Adding Flush Kit | 1 | ||
| 5 | 0022 | OEM: 525-22-865324 | QUICK CONNECT | 2 | ||
| 6 | 0032 | 8M0109511 | HOSE | 1 | ||
| 7 | 0010 | OEM: 525-10-73015 | SCREW (.250-20 x 1.75) | 2 | ||
| 8 | 0000 | 8M0114793 | HOUSING Inlet Blue | 1 | ||
| 9 | 0027 | 8M0109475 | GASKET | 1 | ||
| 10 | 0054 | OEM: 525-54-815504228 | CLAMP Worm Gear | 1 | ||
| 11 | 0032 | 8M2023904 | HOSE | 1 | ||
| 12 | 0054 | OEM: 525-54-815504220 | CLAMP Worm Gear | 1 | ||
| 13 | 0019 | OEM: 525-19-8M0074364 | CAP | 1 | ||
| NS | 0098 | 8M0123083 | FLUSH KIT | AR | ||
| 14 | 0022 | OEM: 525-22-8M4501756 | FITTING | 1 | ||
| 15 | 0054 | OEM: 525-54-815504212 | CLAMP Worm Gear | 2 | ||
| 16 | 0032 | OEM: 525-32-8M0062635 | HOSE 42.00 inch Bulk | 1 | ||
| 17 | 0022 | OEM: 525-22-861406 | SOCKET | 1 | ||
| 18 | 0019 | OEM: 525-858240 | CAP | 1 |
