185 (2 BBL.) GM 262 V-6 - 0A331455 THRU 0B527954 - Exhaust Manifold and Exhaust Elbow

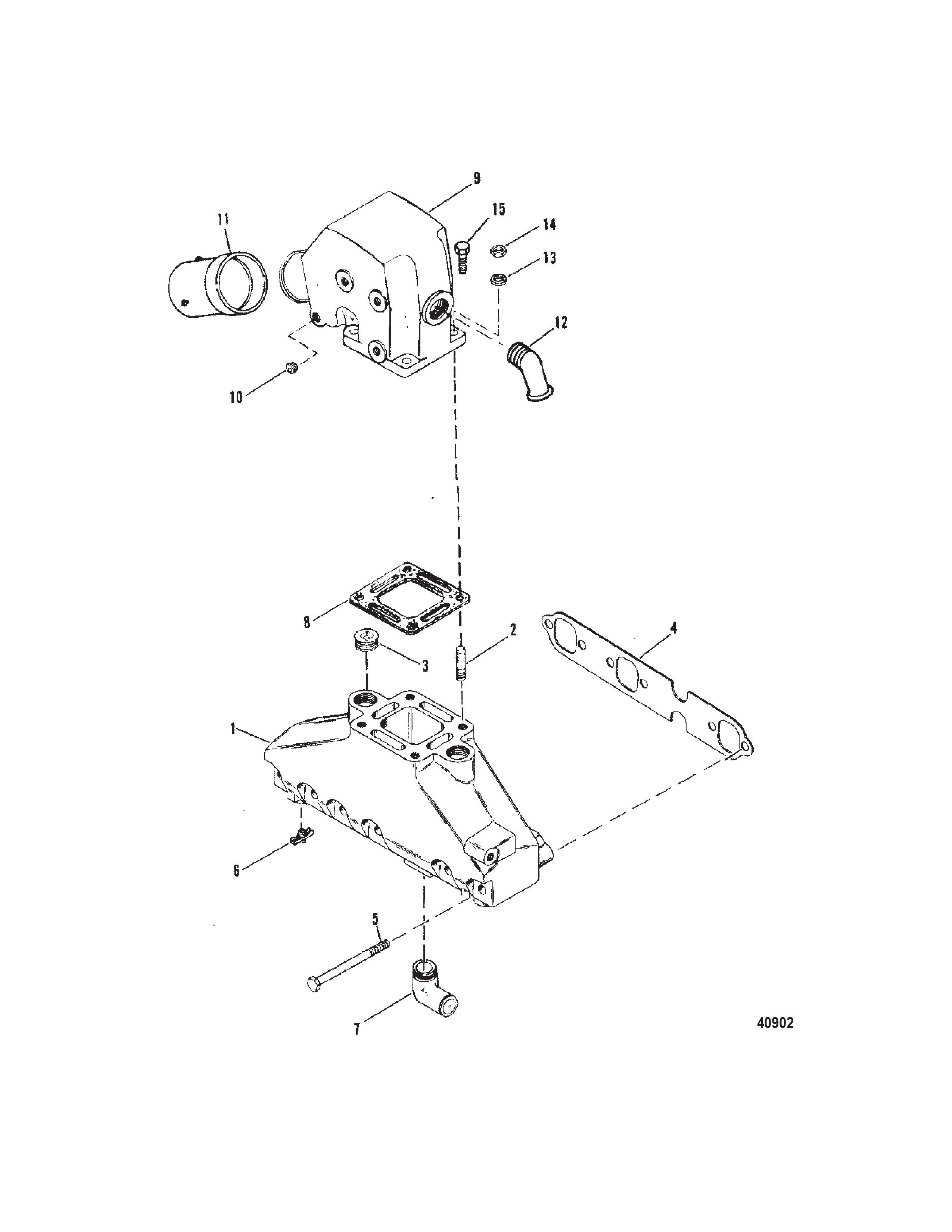

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0000 99746A8 MANIFOLD ASSEMBLY Exhaust   2
2 0016 OEM: 525-16-49545, GLM: 700-22391 STUD (3/8 x 1.75) Manifold Not used with 7 Degree Exhaust Elbow 8
3 0022 33198A1 PLUG (3/4-14) Exhaust Manifold   AR
4 0027 OEM: 525-27-99757, Sierra: 676-18-2909, GLM: 700-32170 GASKET Exhaust Manifold to Cyliner Head   2 [1]
5 0010 OEM: 525-10-53728, GLM: 700-21745 SCREW (.375-16 x 4.75) Exhaust Manifold   12
6 0022 87238 FITTING Exhaust Manifold   2
7 0022 36305 ELBOW (90 Degrees) Exhaust Manifold   2
8 0027 41813 GASKET Exhaust Elbow   2 [1]
9 0000 98504A3 ELBOW ASSEMBLY Exhaust (15 Degree -3 Inch Outside Diameter)   2
9 0000 44354A3 ELBOW ASSEMBLY Exhaust (7 Degree -4 Inch Outside Diameter)   2
10 0022 OEM: 525-22-36382, GLM: 700-21887 FITTING (.250-18 x .62) Brass Pipe, Exhaust Elbow   4
11 0032 OEM: 525-32-58616A2 TUBE Water Separation   1
12 0022 92499 FITTING (45 Degrees) Exhaust Elbow (45 Degree)   2
13 0013 OEM: 525-13-35048, GLM: 700-21493 LOCKWASHER (.375) Manifold Stud Not used with 7 degree exhaust elbow 8
14 0011 24883 NUT Not used with 7 degree exhaust elbow 8
15 0010 43749 SCREW (.375-16 x 5.750) Manifold Use with 7 degree exhaust elbow 8
- 0000 93320A3 RISER KIT Exhaust Elbow (3 In.) Extension (Each Kit Contains 2 Risers) 1
- 0000 93322A3 RISER KIT Exhaust Elbow (6 In.) Extension (Each Kit Contains 2 Risers) 1

PART NOTES:

[1] - Component of 11977A88 Gasket Set, Engine Overhaul
