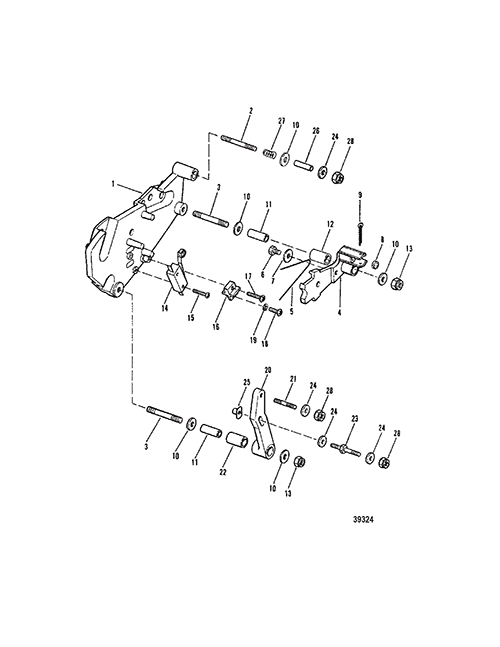

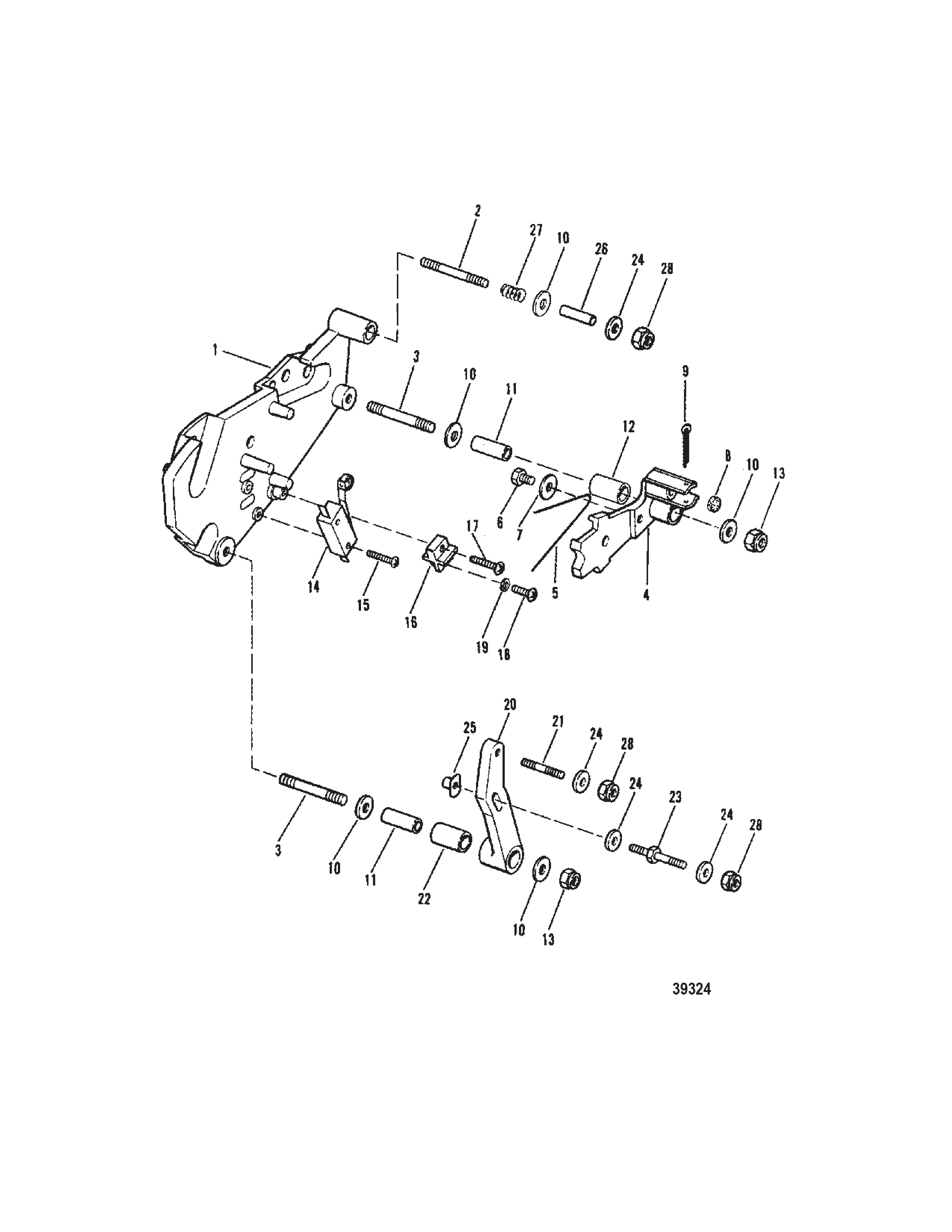

| 1 |
0000 |
99237A10 |
BRACKET ASSEMBLY |
|
1 |
|
| 2 |
0016 |
98798 |
STUD Shift Cable |
|
1 |
|
| 3 |
0016 |
96108 |
STUD Shift Bracket |
|
2 |
|
| 4 |
0000 |
45517A2 |
ARM ASSEMBLY Actuating |
|
1 |
|
| 5 |
0024 |
45599 |
SPRING Actuating Lever |
|
1 |
|
| 6 |
0010 |
OEM: 525-10-88743 |
SCREW (.312-18 x .500) Spring to Lever |
|
1 |
|
| 7 |
0012 |
OEM: 525-12-56720 |
WASHER (.330 x .750 x .060) Stainless Steel |
|
1 |
|
| 8 |
0023 |
OEM: 525-23-98828 |
SPACER Rubber Pad |
|
1 |
|
| 9 |
0018 |
32857 |
COTTER PIN Shift Cable Retaining |
|
1 |
|
| 10 |
0012 |
OEM: 525-12-56720 |
WASHER (.330 x .750 x .060) Stainless Steel Shift Bracket Stud |
|
5 |
|
| 11 |
0023 |
37981 |
SPACER Shift Bracket Stud |
|
2 |
|
| 12 |
0023 |
45600 |
SLEEVE Actuating Lever |
|
1 |
|
| 13 |
0011 |
35814 |
NUT (.312-24) Stainless Steel |
|
2 |
|
| 14 |
0000 |
39670A28 |
SWITCH ASSEMBLY Cut-Out |
|
1 |
|
| 15 |
0010 |
30902 |
SCREW (#6-32 x .750) Switch to Shift Bracket |
|
2 |
|
| 16 |
0086 |
66986 |
TERMINAL BLOCK |
|
1 |
|
| 17 |
0010 |
OEM: 525-10-96113 |
SCREW (#10-32 x .880) Stainless Steel Terminal Block |
|
1 |
|
| 18 |
0010 |
OEM: 525-10-73287 |
SCREW (#10-32 x .380) Terminal Block |
|
1 |
|
| 19 |
0013 |
OEM: 525-13-26996 |
LOCKWASHER (#10) Stainless Steel |
|
2 |
|
| 20 |
0000 |
95854A3 |
LEVER ASSEMBLY Shift |
|
1 |
|
| 21 |
0016 |
98851 |
STUD Shift Cable |
|
1 |
|
| 22 |
0023 |
45600 |
SLEEVE Shift Lever |
|
1 |
|
| 23 |
0016 |
96112 |
STUD (.250-28 x 2.00) Shift Cable |
|
1 |
|
| 24 |
0012 |
OEM: 525-12-35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel |
|
5 |
|
| 25 |
0011 |
OEM: 525-11-63341 |
TEE NUT Shift Cable Stud |
|
1 |
|
| 26 |
0023 |
98820 |
SPACER Shift Cable Stud |
|
1 |
|
| 27 |
0024 |
OEM: 525-24-98880 |
SPRING Shift Cable Stud |
|
1 |
|
| 28 |
0011 |
20361 |
NUT (.250-28) |
|
3 |
|
