4.3L (GEN II) (2 BBL.) GM 262 V-6 - 0F000878 THRU 0F601126 - STARTER MOTOR AND ALTERNATOR

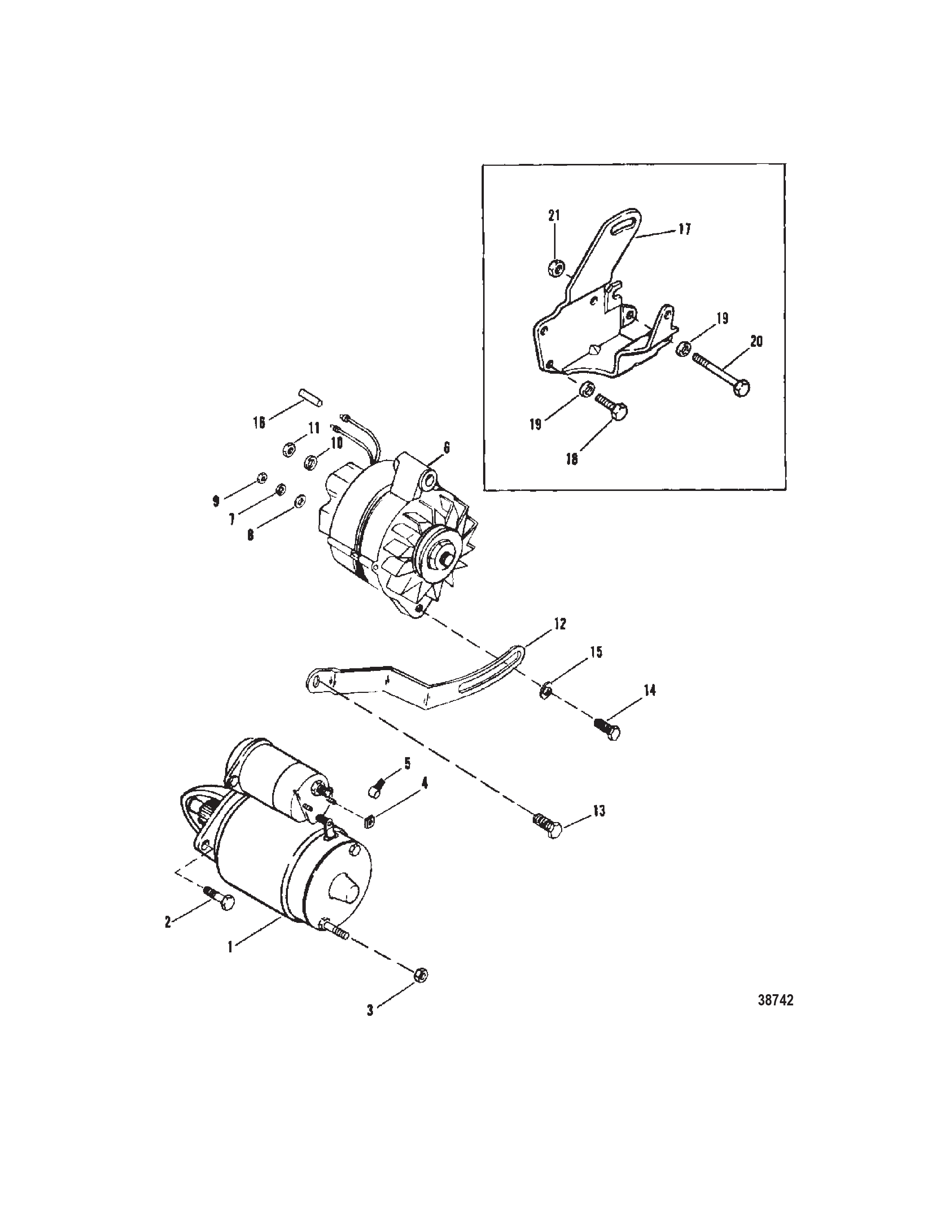

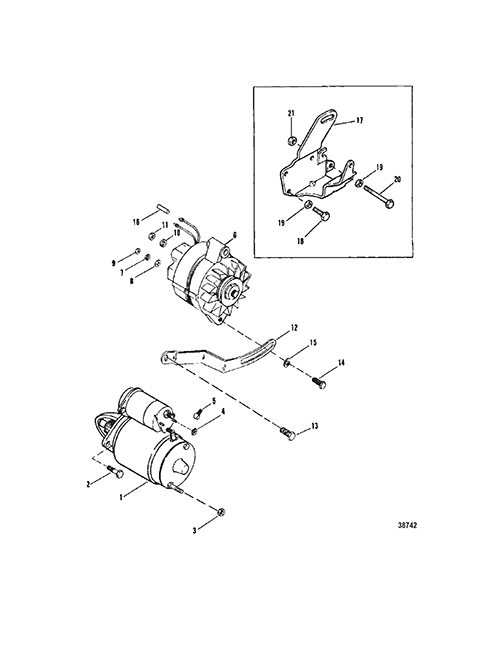

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- ALTERNATOR (MANDO)
- AUDIO WARNING SYSTEM
- BODENSEE PARTS
- CARBURETOR (MERCARB - 2 BARREL)
- CARBURETOR (WEBER)
- CARBURETOR AND THROTTLE LINKAGE (2 BARREL)
- CARBURETOR AND THROTTLE LINKAGE (4 BARREL)
- CRANKSHAFT AND PISTONS
- CYLINDER BLOCK AND CAMSHAFT
- CYLINDER HEAD AND ROCKER COVER
- DISTRIBUTOR AND IGNITION COMPONENTS
- ENGINE MOUNTING
- EXHAUST MANIFOLD AND EXHAUST RISER
- EXHAUST SYSTEM
- FLYWHEEL HOUSING
- FUEL PUMP AND FUEL FILTER
- INTAKE MANIFOLD AND FRONT COVER
- OIL PAN AND OIL PUMP
- POWER STEERING COMPONENTS
- REMOTE OIL FILTER
- SERVICE AND SUPPORT MATERIAL
- SHIFT BRACKET
- STANDARD COOLING SYSTEM (DESIGN I)
- STANDARD COOLING SYSTEM (DESIGN II)
- STARTER MOTOR 3-1-4 DIAMETER END CAP
- STARTER MOTOR 8 IN. (PG 260) 2-7-8 IN. DIAMETER END CAP
- STARTER MOTOR AND ALTERNATOR
- WIRING HARNESS AND ELECTRICAL COMPONENTS
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0050 | 812604A2 | STARTER MOTOR ASSEMBLY 3- 1/4 Diameter End Cap | 1 | ||
| 2 | 0010 | OEM: 525-10-8053432, Sierra: 676-18-8402 | SCREW (.375-16 x 4.33) | 2 | ||
| 3 | 0011 | 15874 | NUT (M10) 3-1/4" DIAMETER END CAP | 1 | ||
| 4 | 0011 | OEM: 525-11-400211 | NUT (M5) Stainless Steel 3- 1/4" DIAMETER END CAP | 2 | ||
| 1 | 0050 | 806964A2 | STARTER MOTOR ASSEMBLY 2- 7/8 Diameter End Cap | 1 | ||
| 2 | 0010 | OEM: 525-10-8053432, Sierra: 676-18-8402 | SCREW (.375-16 x 4.33) | 2 | ||
| 3 | 0011 | OEM: 525-11-806949 | NUT (M8-1.5) 2-7/8" DIAMTER END CAP | 1 | ||
| 4 | 0011 | OEM: 525-11-400211 | NUT (M5) Stainless Steel (2- 7/8" DIAMTER END CAP | 1 | ||
| 5 | 0085 | 79695 | BOOT Insulator - Black | 1 | ||
| 6 | 0000 | OEM: 530-817119A4, Sierra: 676-18-5957 | ALTERNATOR | 1 | [1] | |
| 7 | 0013 | OEM: 525-13-26996 | LOCKWASHER (#10) Stainless Steel | 1 | ||
| 8 | 0012 | OEM: 525-12-96457 | WASHER Phenolic (.27 x .81 x .062) | 1 | ||
| 9 | 0011 | OEM: 525-11-79989 | NUT (#10-24) Stainless Steel | 1 | ||
| 10 | 0013 | OEM: 525-13-26992 | LOCKWASHER (.250) Stainless Steel | 1 | ||
| 11 | 0011 | OEM: 525-11-94330 | NUT (.250-20) Brass | 1 | ||
| 12 | 0000 | OEM: 525-85013T | BRACE | 1 | ||
| 13 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 1 | ||
| 14 | 0010 | OEM: 525-10-29198 | SCREW AND LOCKWASHER (.312- 18 x .875) | 1 | ||
| 15 | 0012 | OEM: 525-12-26168 | WASHER | 1 | ||
| 16 | 0000 | OEM: 525-5790811 | SLEEVE (10.00 Inches Bulk) | 2 | ||
| 17 | 0000 | 15083T | BRACKET | 1 | ||
| 18 | 0010 | OEM: 525-10-37612, GLM: 700-21755 | SCREW (.375-16 x 1.250) | 2 | ||
| 18 | 0010 | OEM: 525-10-34353 | SCREW (.375-16 x 1.00) | 1 | ||
| 19 | 0012 | OEM: 525-12-20553, GLM: 700-21675 | WASHER (.406 x .734 x .063) | 3 | ||
| 20 | 0010 | OEM: 525-10-56743 | SCREW (.375-24 x 3.125) | 1 | ||
| 21 | 0011 | OEM: 525-11-23161 | NUT (.375-24) | 1 |
PART NOTES:
[1] - Alternate part numbers:
817119A 4QS
817119R01Reman
