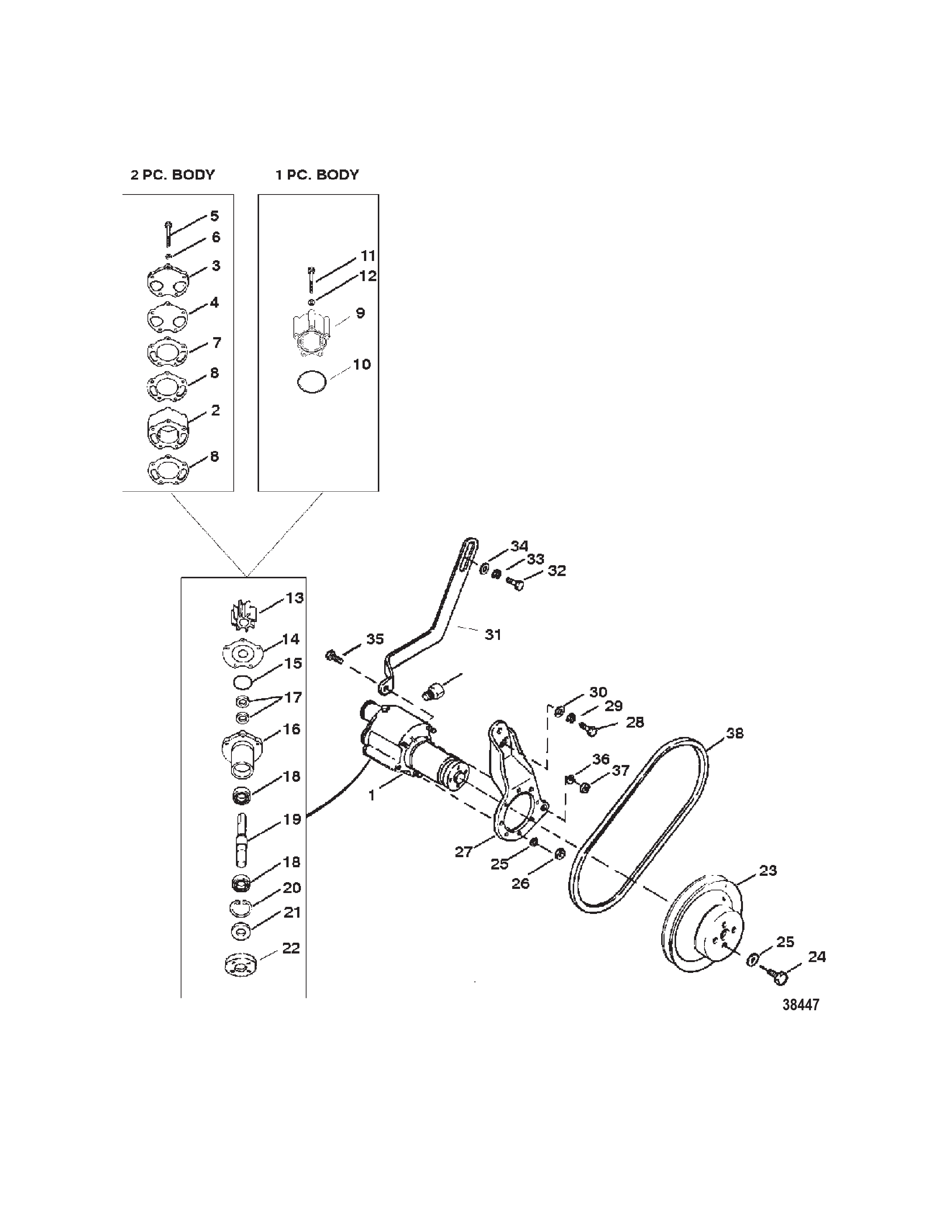

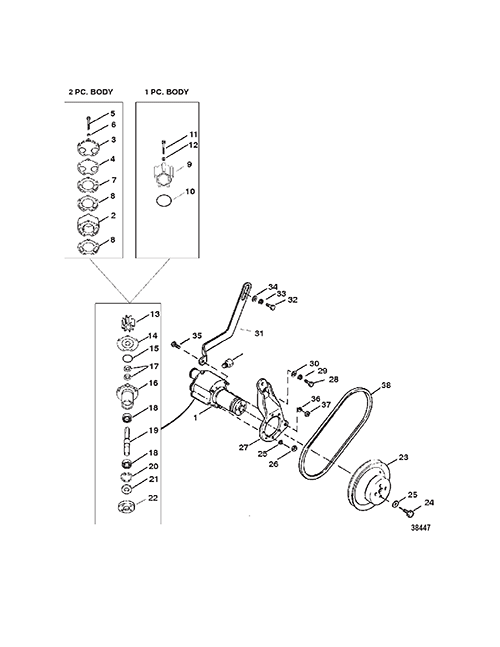

| 1 |
0046 |
OEM: 530-807151A12, Sierra: 676-18-36001 |
PUMP ASSEMBLY Seawater |
|
1 |
|
| 2 |
0046 |
72774A40 |
BODY ASSEMBLY Sea Water - Complete |
TWO PIECE BODY |
1 |
|
| 3 |
0000 |
OEM: 525-87631A4 |
COVER KIT |
TWO PIECE BODY |
1 |
|
| 4 |
0027 |
OEM: 525-27-8052151, Sierra: 676-18-0916 |
GASKET |
TWO PIECE BODY |
1 |
|
| 5 |
0010 |
OEM: 525-10-73275, GLM: 700-22441 |
SCREW (.312-18 x 2.88) |
TWO PIECE BODY |
2 |
|
| 5 |
0010 |
OEM: 525-10-99347 |
SCREW (.312-18 x 3.75) |
TWO PIECE BODY |
3 |
|
| 6 |
0012 |
OEM: 525-12-20084, GLM: 700-21664 |
WASHER (.328 x .562 x .062) |
TWO PIECE BODY |
5 |
|
| 7 |
0000 |
OEM: 525-94916, Sierra: 676-18-3351, GLM: 700-12502 |
WEAR PLATE (Outer) |
TWO PIECE BODY |
1 |
|
| 8 |
0027 |
OEM: 525-27-94914, Sierra: 676-18-0386, GLM: 700-32730 |
GASKET |
TWO PIECE BODY |
2 |
|
| 9 |
0046 |
807151A7 |
BODY AND COVER Water Pump |
ONE PIECE BODY |
1 |
|
| 10 |
0025 |
807149 |
QUAD RING |
ONE PIECE BODY |
1 |
|
| 11 |
0010 |
OEM: 525-10-807356 |
SCREW (.312-18 x 2.680) |
ONE PIECE BODY |
2 |
|
| 11 |
0010 |
OEM: 525-10-74822 |
SCREW (.312-18 x 3.500) |
ONE PIECE BODY |
3 |
|
| 12 |
0012 |
OEM: 525-12-814806, GLM: 700-21662 |
WASHER (.344 x .688 x .065) Stainless Steel |
ONE PIECE BODY |
5 |
|
| 13 |
0047 |
593621 |
IMPELLER |
|
1 |
|
| 14 |
0000 |
OEM: 525-94576, Sierra: 676-18-3350, GLM: 700-12501 |
WEAR PLATE (Inner) |
|
1 |
|
| 15 |
0025 |
OEM: 525-25-94288, Sierra: 676-18-7474, GLM: 700-84026 |
QUAD RING |
|
1 |
|
| 16 |
0046 |
OEM: 525-46-94913A2 |
HOUSING ASSEMBLY Water Pump |
|
1 |
|
| 17 |
0026 |
OEM: 525-26-90562, Sierra: 676-18-2011, GLM: 700-85080 |
SEAL (1.254 x .312) Oil |
|
2 |
|
| 18 |
0030 |
OEM: 525-30-72961, Sierra: 676-18-1398, GLM: 700-21625 |
BEARING Ball |
|
2 |
|
| 19 |
0000 |
OEM: 525-59501A1, GLM: 700-22401 |
SHAFT |
|
1 |
|
| 20 |
0053 |
OEM: 525-53-23720, GLM: 700-21772 |
RING Retaining |
|
1 |
|
| 21 |
0026 |
OEM: 525-26-72785, Sierra: 676-18-0531, GLM: 700-85810 |
SEAL Oil |
|
1 |
|
| 22 |
0000 |
OEM: 525-47530, GLM: 700-22212 |
HUB |
|
1 |
|
| 23 |
0000 |
OEM: 525-52822T |
PULLEY |
|
1 |
|
| 24 |
0010 |
OEM: 525-10-47277 |
SCREW (.312-24 x .750) |
|
4 |
|
| 25 |
0013 |
OEM: 525-13-39107, GLM: 700-21496 |
LOCKWASHER (.312-24) |
|
7 |
|
| 26 |
0011 |
OEM: 525-11-21908 |
NUT (.312-18) Cad Plated |
|
3 |
|
| 27 |
0000 |
OEM: 525-89535T1 |
BRACKET |
|
1 |
|
| 28 |
0010 |
OEM: 525-10-34353 |
SCREW (.375-16 x 1.00) |
|
2 |
|
| 29 |
0013 |
OEM: 525-13-35048, GLM: 700-21493 |
LOCKWASHER (.375) |
|
2 |
|
| 30 |
0012 |
OEM: 525-12-34714 |
WASHER |
|
1 |
|
| 31 |
0000 |
OEM: 525-896091 |
BRACE Adjusting |
|
1 |
|
| 32 |
0010 |
OEM: 525-10-26487 |
SCREW (.375-16 x 1.12) |
|
1 |
|
| 33 |
0013 |
OEM: 525-13-35048, GLM: 700-21493 |
LOCKWASHER (.375) |
|
1 |
|
| 34 |
0012 |
OEM: 525-12-34714 |
WASHER |
|
1 |
|
| 35 |
0010 |
OEM: 525-10-35786 |
SCREW (.375-24 x 1.00) |
|
1 |
|
| 36 |
0013 |
OEM: 525-13-35048, GLM: 700-21493 |
LOCKWASHER (.375) |
|
1 |
|
| 37 |
0011 |
OEM: 525-11-46335 |
NUT (.375-24) |
|
1 |
|
| 38 |
0057 |
13457T |
BELT |
|
1 |
|
