454 Mag Bravo (Gen 5) GM V-8 1996-1997 - Serial 0F801700 Thru 0K999999 - Power Steering Components

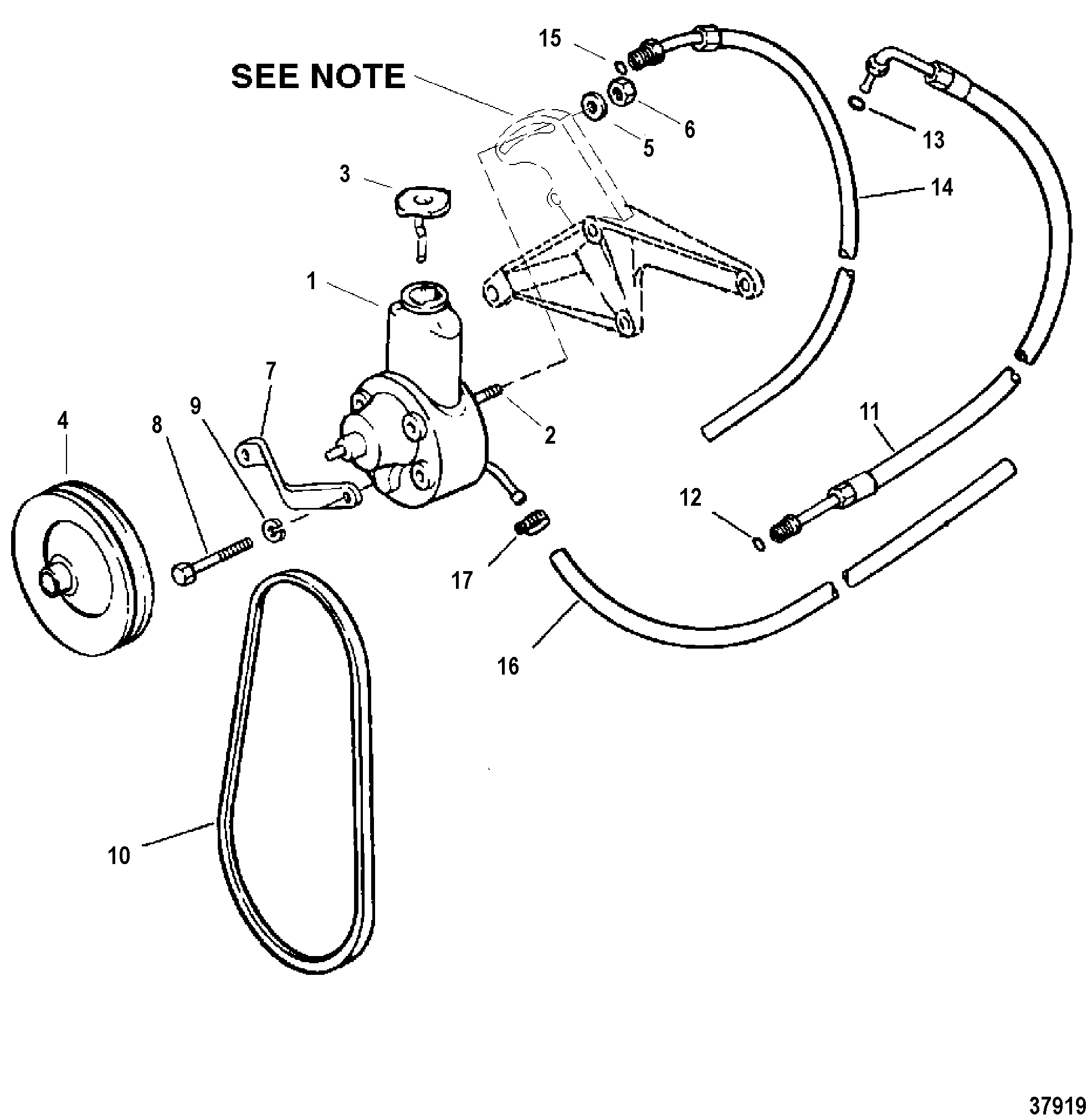

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Carburetor (Weber)
- Carburetor And Flame Arrestor
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover (454 Magnum)
- Cylinder Head And Rocker Cover (7.4L Bravo)
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow (454 Magnum)
- Exhaust Manifold And Exhaust Elbow (7.4L Bravo)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mercathode Components
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle And Bracket
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor
- Thermostat Housing(Standard Cooling)
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | PUMP ASSEMBLY, Power Steering | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 2 | 16-41877 | STUD, (M10) | 2 | ||||||
| 3 | 36-95805 | CAP | 1 | ||||||
| 4 | 73873A1 | PULLEY | 1 | ||||||
| 5 | 23-72057 | SPACER, (1.00 Outside Diameter x .125 x Thick) | 2 | ||||||
| 6 | 11-90517 | NUT, (M10) | 2 | ||||||
| 7 | 98813F1 | BRACE | 1 | 98813A1 | |||||
| 8 | 10-40001188 | SCREW, (M10 x 20) | 1 | ||||||
| 9 | 13-400248 | LOCKWASHER, (M10) | 1 | ||||||
| 10 | 57-812427Q | V BELT | 1 | 57-812427T | |||||
| 11 | 32-80622216 | HOSE | 1 | (FITTINGS ON BOTH ENDS) | |||||
| 12 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 13 | 25-806232 | O-RING, (.239 x .064) | 1 | ||||||
| 14 | 32-80622142 | HOSE ASSEMBLY, (84.00 Inches Bulk), Return | 1 | (FITTING ON ONE END) | |||||
| 15 | 25-89879 | O-RING, (.301 x .064) | 1 | ||||||
| 16 | 32-5251914 | HOSE, (53.00 Inches Bulk), Pump to Oil Cooler | 1 | ||||||
| 17 | 54-815504206 | CLAMP, Worm Gear | 3 |
