350 Mag MPI Alpha-Bravo - Serial 0L331599 Thru 0M299999 - Exhaust Manifold And Exhaust Elbow

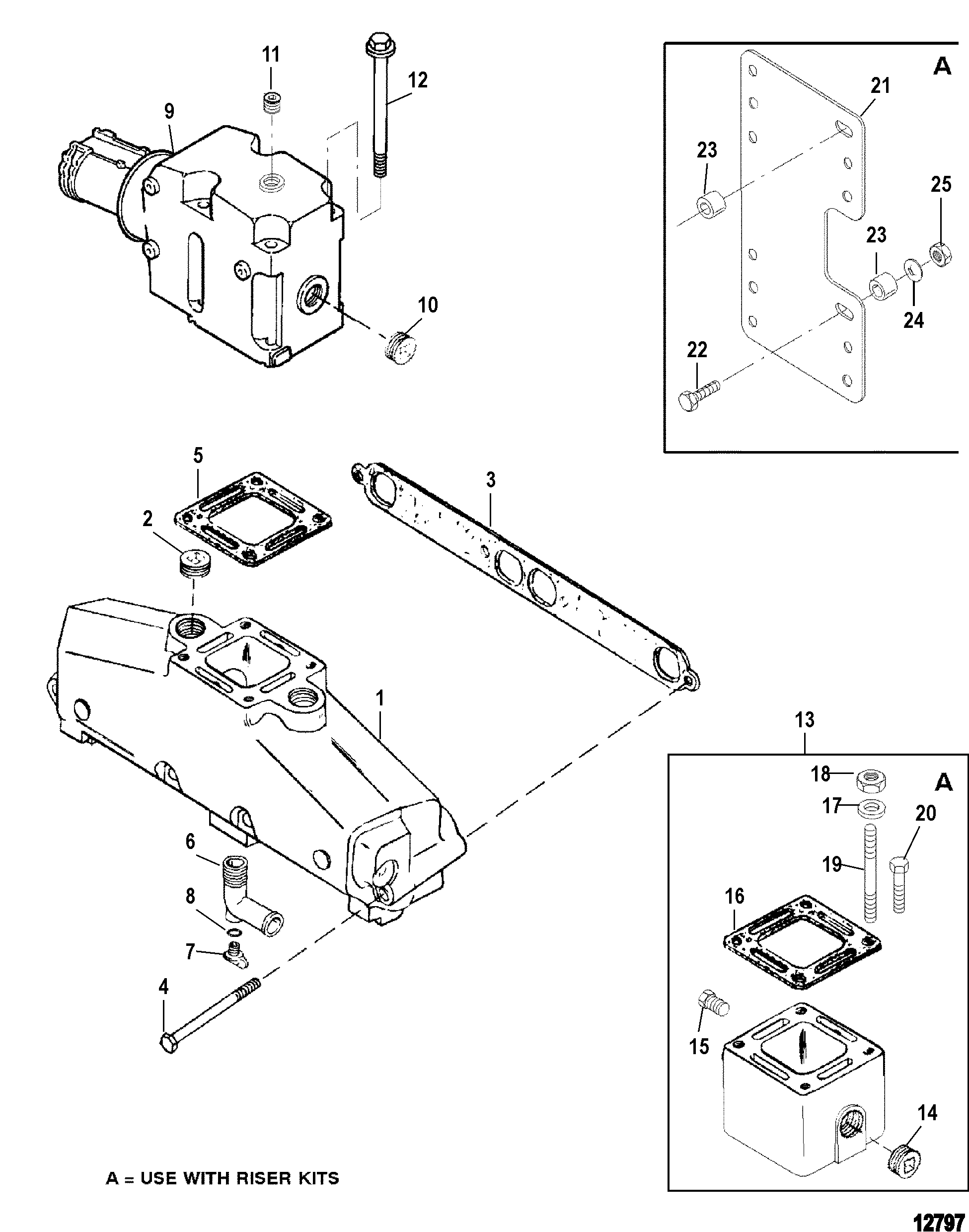

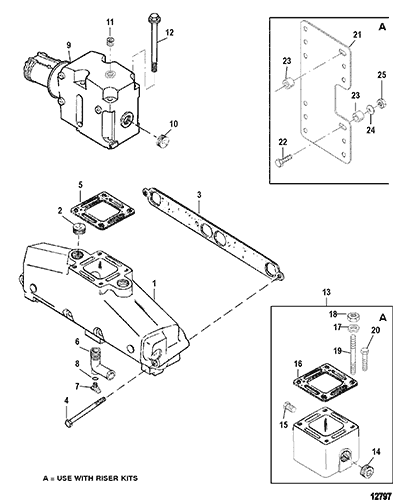

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # SEI # Description Num Req. Superceded From Special Notes
1 860246A15



MANIFOLD ASSEMBLY, Exhaust 2 860246A10
2 22-428611


602-98-102-57 PLUG, (.750-14) Pipe 8 22-861187
3 27-33395
676-9-61401 700-31100
GASKET 2
3
4 10-53728

700-21745
SCREW, (.375-16 x 4.75) 8

5 27-863724
676-9-61413

GASKET 2
Standard Cooling
6 22-862210A01
676-9-41206 700-13991
ELBOW KIT, Drain 2 22-806926A1
7 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
8 25-32509



QUAD RING 2 25-806609 3
9 807988A03



ELBOW ASSEMBLY, Exhaust 2 807988A2
10 22-41622
676-9-41205 700-21892
PLUG, (.750-14) Pipe 2

11 22-73379

700-22379
PLUG, (.250-18) 2

12 10-43749

700-22381
SCREW, (.375-16 x 5.750) 8

12 10-43749

700-22381
SCREW, (.375-16 x 5.750) 4
Swiss Emissions (BSO1 and SAV1)
12 10-843504



SCREW, (.380-16 x 1.500) Stainless Steel 4

13 93320A13



RISER KIT, Exhaust (3 Inches) 1 93320A5 EACH KIT CONTAINS 2 RISERS
13 93322A12

700-50610
RISER KIT, Exhaust (6 Inches) 1 93322A7 EACH KIT CONTAINS 2 RISERS
14 22-428611


602-98-102-57 PLUG, (.750-14) Pipe 2 22-861187
15 22-328022



PLUG, Pipe (.125-27) 2 22-328021
16 27-863726
676-9-61414

GASKET 2

17 12-46132



WASHER 4/8
USE WITH 3 IN. RISER
18 11-46335         NUT, (.375-24) 4/8
USE WITH 3 IN. RISER
19 8M0022137     700-22474   STUD, (.375 x 9.56) 4/8 16-11375 USE WITH 3 IN. RISER
20 10-14315         SCREW, (.375-16 x 4.25) 4   This Part is No Longer Available Swiss Emissions (BSO1 and SAV1) - USE WITH 6 IN. RISER
20 10-865982005



SCREW, (.375-16 x 1.00) 8 10-12244 USE WITH 6 IN. RISER
21 818598T



BRACKET 1
USE WITH 6 IN. RISER
22 10-76596



SCREW, (.250-20 x 1.250) 3
USE WITH 6 IN. RISER
23 23-806981



SPACER 6
USE WITH 6 IN. RISER
24 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 3
USE WITH 6 IN. RISER
25 11-64015



NUT, (.250-20) 3
USE WITH 6 IN. RISER
- 27-75611A98



GASKET SET, Engine Overhaul 1
