350 Mag MPI Alpha-Bravo - Serial 1A300000 Thru 1A611927 - Cool Fuel System - Bravo (1A343748 and Below)

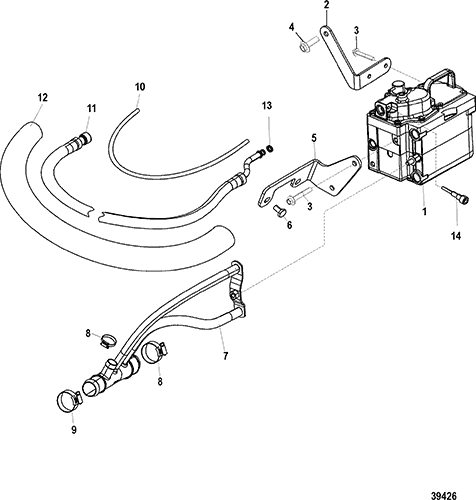

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alpha-Bravo Steering Components
- Alternator and Brackets
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (HP) 1A347685 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A347684 and Down, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (For HP Filter) 1A347685 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A347684 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342860 and Up, Gen I
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System, ALPHA
- Closed Cooling System, AXIUS
- Closed Cooling System, BRAVO
- Closed Cooling System, Heat Exchanger
- Cool Fuel System - Bravo (1A343748 and Below)
- Cool Fuel System - Bravo (1A343749 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital (1A343327 and Below)
- Electrical Components, Digital (1A343328 and Up)
- Electrical Components, Mechanical (1A343327 and Below)
- Electrical Components, Mechanical (1A343328 and Up)
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components - Bravo (SN 1A343748 and Below)
- Fuel Module Components - Bravo (SN1A343749 and Above)
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Axius
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - AXIUS
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Starter Motor
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 864650A05 | MODULE KIT, Fuel Pump |
1 | No Longer Available | |||||
| 2 | 864459 | BRACKET |
1 | ||||||
| 3 | 10-4010720 | SCREW, (M8 x 20) |
4 | ||||||
| 4 | 10-4010820 | SCREW, (M10 x 20) Hex Flange - Stainless Steel |
1 | ||||||
| 5 | 864458 | BRACKET |
1 | ||||||
| 6 | 10-40001195 | SCREW, (M10 x 30) | 2 | ||||||
| 7 | 22-865208T01 | HOSE ASSEMBLY, 3 Bib Orfice Meter |
1 | ||||||
| 7 | 22-865317T01 | FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter |
1 | ||||||
| 8 | 54-815504212 | CLAMP, Worm Gear |
2 | ||||||
| 9 | 54-815504224 | CLAMP, (32 - 50 mm) |
1 | 8M2001489 |
|||||
| 10 | 32-8M0063567 | HOSE, (58.00 Inches Bulk) |
1 | 80617382 |
|||||
| 11 | 32-865257A03 | HOSE, Fuel Module to Fuel Rail |
1 | 865257002 |
|||||
| 11 | 32-8M2005177 | LINE, Fuel Module to Fuel Rail |
1 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, Insulator Sleeve |
1 | ||||||
| 13 | 26-863151 | SEAL, Quad Ring |
1 | ||||||
| 14 | 10-866114 | SCREW, (.250-28) Special |
1 |
