350 Mag MPI HORIZON Alpha-Bravo - Serial 0M600000 Thru 0W059999 - Gear Lube Monitor

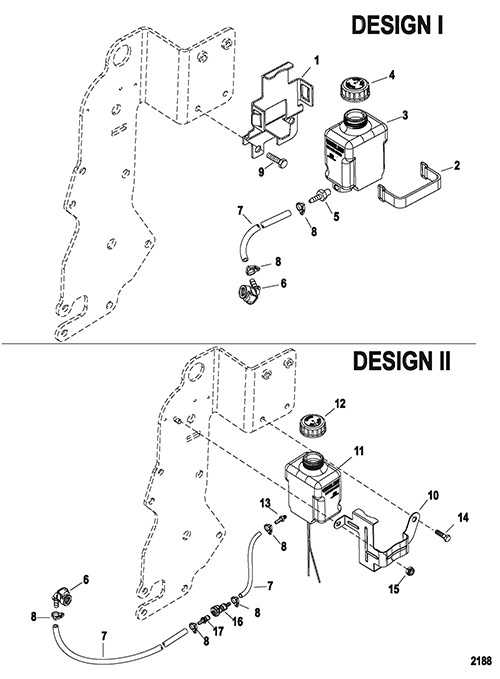

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling System
- Cylinder Block (Camshaft and Crankshaft)
- Cylinder Block and Flywheel Housing
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter (Alpha)
- Fuel Filter and Boost Pump (BRAVO)
- Fuel Pump and Fuel Cooler
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Piston and Connecting Rods
- Power Steering Components
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket (ALPHA)(0M659999 and Below)
- Shift Bracket (ALPHA)(0M660000 and Up)
- Shift Bracket (BRAVO)(0M659999 and Below)
- Shift Bracket (BRAVO)(0M660000 and Up)
- Standard Cooling System (7 Point Drain)
- Standard Cooling System (Single and 3 Point Drain)
- Starter Motor
- Thermostat and Housing (7 Point Drain)
- Thermostat and Housing (Single and 3 Point Drain)
- Throttle Body (Mechanical Throttle and Shift)
- Water Distribution Housing
- Water Drain (Air Manifold and Pump)
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-860065A1 | BRACKET KIT Oil Bottle - Lube Monitor Reservoir | (Design I)(All)(Closed Cooling) [0M640000] THRU [0M639999] | 1 | |
| 2 | 0000 | OEM: 525-808023T | STRAP Bracket - Reservoir Retainer | 1 | ||
| 3 | 0000 | 806193A36 | RESERVOIR Lube Monitor | (Design I)(All)(Closed Cooling) [0M640000] THRU [0M639999] | 1 | |
| 4 | 0036 | OEM: 530-8067271 | CAP Drive Lube Monitor Lube Reservoir | 1 | ||
| 5 | 0022 | OEM: 525-22-808624 | CONNECTOR Lube Reservoir | 1 | ||
| 6 | 0022 | OEM: 525-22-861163 | QUICK CONNECTOR (90 Degree) To Transom | 1 | ||
| 7 | 0032 | 1940971 | HOSE (54.00 Inches Bulk) (.25 Inch I.D. x 54 Inch Long) | 1 | ||
| 8 | 0054 | OEM: 525-54-415825 | CLAMP Nylon Hose | A/R | ||
| 9 | 0010 | OEM: 525-10-98261 | SCREW (.375-16 x .750) | 2 | ||
| 10 | 0000 | OEM: 525-865175T | BRACKET Lube Monitor Reservoir | (Design II)(Standard Cooling) [0M640000] & Up | 1 | |
| 11 | 0000 | 806193A37 | RESERVOIR Lube Monitor | (Design II)(Standard Cooling) [0M640000] & Up | 1 | |
| 12 | 0036 | OEM: 530-8067271 | CAP Drive Lube Monitor Lube Reservoir | 1 | ||
| 13 | 0022 | OEM: 525-22-808624 | CONNECTOR Lube Reservoir | 1 | ||
| 14 | 0010 | OEM: 525-10-828552 | SCREW (.375-16 x .500) | 1 | ||
| 15 | 0011 | OEM: 525-11-8267098 | NUT (.250-20) Stainless Steel | 1 | ||
| 16 | 0022 | 865190 | CONNECTOR Female Female | [0M640000] & Up | 1 | |
| 17 | 0022 | OEM: 525-22-865191 | FITTING Male Male | [0M640000] & Up | 1 |
