5.0L (2 BBL) GM 305 V-8 1988-1995 - Serial 0B774445 Thru 0F600999 - Carburetor (Rochester - 4 Barrel)

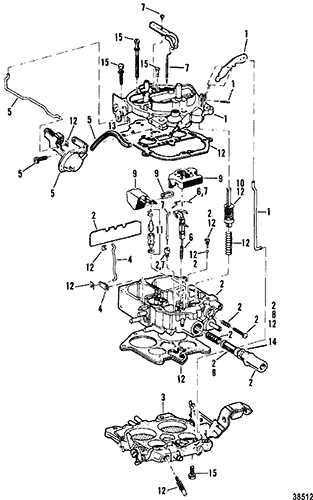

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1347-804624R1   676-9-34004     CARBURETOR ASSEMBLY 1 1347-9662A4 260-5.7L 5.7L BRAVO
1 1397-8752         AIR HORN KIT 1   This Part is No Longer Available 260-5.7L 5.7L BRAVO
2 1397-8753         FLOAT BOWL KIT 1   This Part is No Longer Available 260-5.7L 5.7L BRAVO
3 1397-8540         THROTTLE BODY KIT 1   This Part is No Longer Available 260-5.7L 5.7L BRAVO
4 1397-8541         LINK/LEVER KIT, Choke 1   This Part is No Longer Available 260-5.7L 5.7L BRAVO
5 1397-8582         PRIMARY VACUUM KIT 1   This Part is No Longer Available 260-5.7L 5.7L BRAVO No longer made, limited availability
6 1397-8543T         PISTON KIT 1 1397-8543 260-5.7L 5.7L BRAVO
7 1397-8583         METERING JET AND ROD KIT 1   This Part is No Longer Available 260-5.7L 5.7L BRAVO
8 1397-8767Q     700-24841   FILTER KIT, Fuel 1 1397-8767 260-5.7L 5.7L BRAVO
9 1397-8546T         FLOAT KIT 1 1397-8546 260-5.7L 5.7L BRAVO
10 1397-9669         PUMP KIT 1
260-5.7L 5.7L BRAVO
11 1397-8548     700-40760   NEEDLE/SEAT KIT 1
260-5.7L 5.7L BRAVO
12 823426A1     700-76150   CARBURETOR KIT 1
(SEE NOTE) 260-5.7L 5.7L BRAVO
14 1397-8327         GASKET 1
260-5.7L 5.7L BRAVO
15 1397-8557         SCREW KIT 1   This Part is No Longer Available 260-5.7L 5.7L BRAVO
- 1347-804623R1         CARBURETOR ASSEMBLY 1 1347-9661A3 230-5.0L
1 1397-8574         AIR HORN KIT 1   This Part is No Longer Available 230-5.0L
2 1397-8750         FLOAT BOWL KIT 1   This Part is No Longer Available 230-5.0L
3 1397-8540         THROTTLE BODY KIT 1   This Part is No Longer Available 230-5.0L
4 1397-8541         LINK/LEVER KIT, Choke 1   This Part is No Longer Available 230-5.0L
5 1397-8582         PRIMARY VACUUM KIT 1   This Part is No Longer Available 230-5.0L No longer made, limited availability
6 1397-8543T         PISTON KIT 1 1397-8543 230-5.0L
7 1397-8583         METERING JET AND ROD KIT 1   This Part is No Longer Available 230-5.0L
8 1397-8767Q     700-24841   FILTER KIT, Fuel 1 1397-8767 230-5.0L
9 1397-8546T         FLOAT KIT 1 1397-8546 230-5.0L
10 1397-9669         PUMP KIT 1
230-5.0L
11 1397-8548     700-40760   NEEDLE/SEAT KIT 1
230-5.0L
12 823426A1     700-76150   CARBURETOR KIT 1
(SEE NOTE) 230-5.0L
14 1397-8327         GASKET 1
230-5.0L
15 1397-8557         SCREW KIT 1   This Part is No Longer Available 230-5.0L
- 1347-804624R1   676-9-34004     CARBURETOR ASSEMBLY 1 1347-8289A1 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
1 1397-8538         PIN, Spring 1   This Part is No Longer Available 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
2 1397-8539         FLOAT BOWL KIT 1   This Part is No Longer Available 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
3 1397-8540         THROTTLE BODY KIT 1   This Part is No Longer Available 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
4 1397-8541         LINK/LEVER KIT, Choke 1   This Part is No Longer Available 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
5 1397-8542         PIN, Spring 1   This Part is No Longer Available 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
6 1397-8543T         PISTON KIT 1 1397-8543 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
7 1397-8544         METERING JET AND ROD KIT 1   This Part is No Longer Available 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
8 1397-8767Q     700-24841   FILTER KIT, Fuel 1 1397-8767 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
9 1397-8546T         FLOAT KIT 1 1397-8546 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
10 1397-9669         PUMP KIT 1
350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
11 1397-8548     700-40760   NEEDLE/SEAT KIT 1
350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
12 823426A1     700-76150   CARBURETOR KIT 1
(SEE NOTE) 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
14 1397-8327         GASKET 1
350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
15 1397-8557         SCREW KIT 1   This Part is No Longer Available 350 MAGNUM & 5.7L BRAVO (W/HI-RISE INTAKE MANIFOLD)
