5.0L EFI GM 305 V-8 1999-2001 - Serial 0L331631 Thru 0M299999 - Fuel Pump And Fuel Cooler

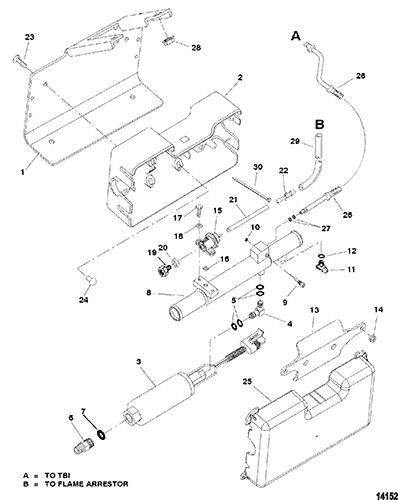

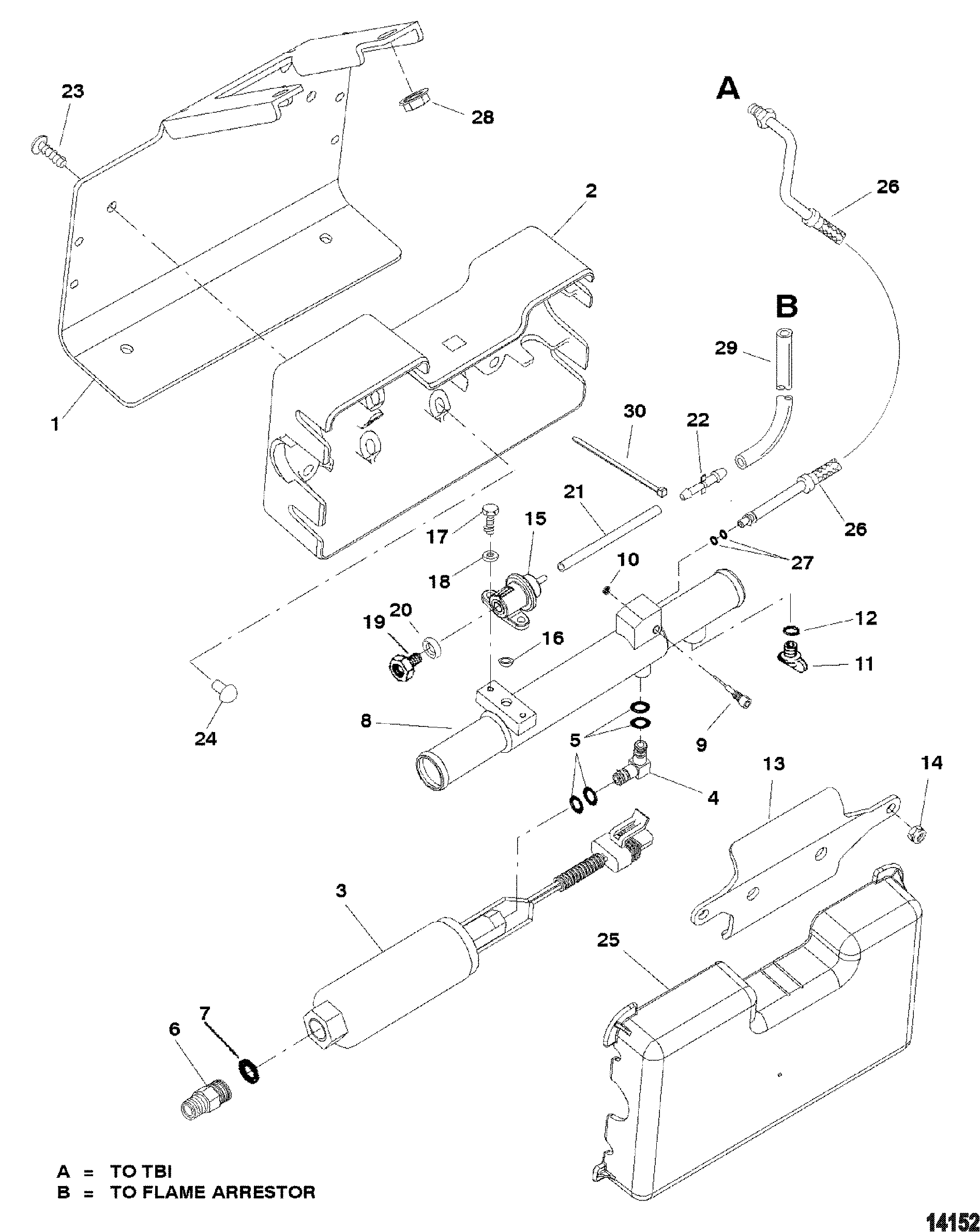

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807951T         BRACKET, Fuel Cooler 1

2 807685T         INSULATOR 1

3 861156A1         PUMP ASSEMBLY 1   This Part is No Longer Available
4 22-807783A1         FITTING ASSEMBLY, 90 Degree 1

5 25-805063



O-RING, (.301 x .070) 4
2
6 22-808001A1



FITTING ASSEMBLY 1

7 25-805062



O-RING, (.530 x .082) 1
2
8 861267A1



COOLER KIT, Fuel 1

9 10-866114



SCREW, (.250-28) Special 1 10-861303
10 53-861414



RING, Retaining 1

11 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 1 22-806608A1
12 25-32509



O-RING, (.489 x .070) 1
2
13 807979T



BRACKET 1

14 11-29598



NUT, (.250-28) Stainless Steel 2

15 807952A1
676-9-33205

REGULATOR KIT, Fuel Pressure 1

16 35-805406



FILTER 1

17 10-852368



SCREW, (#10-24 x .750) 2

18 12-89302



WASHER, (.203 x .406 x .040) 2

19 22-808002A1



FITTING KIT 1

20 12-36533



WASHER, (.328 x .562 x .0312) Copper 1

21 32-8M0063567



HOSE, (52.00 Inches Bulk) 1 32-80617379
22 22-807971



CONNECTOR, Hose 1

23 10-808005



SCREW, (.250-20 x .500) 4

24 269011



BUMPER, Rubber 8

25 807930T01



INSULATOR 1 807930
26 32-861564A1



LINE ASSEMBLY, Fuel Cooler To Fuel Rail 1

27 25-805063



O-RING, (.301 x .070) 2
2
28 11-860069



NUT, (.375-16) 2

29 32-8M0062600



HOSE, (.2187 x .440) 1 32-80804762
30 54-816311T

700-21465
TIE STRAP, (8.00 Inches) AR

- 27-861246A05

700-39016
GASKET SET 1 27-861246A98
