5.0L MPI Alpha-Bravo - Serial 0W310000 Thru 0W649999 - Exhaust Risers

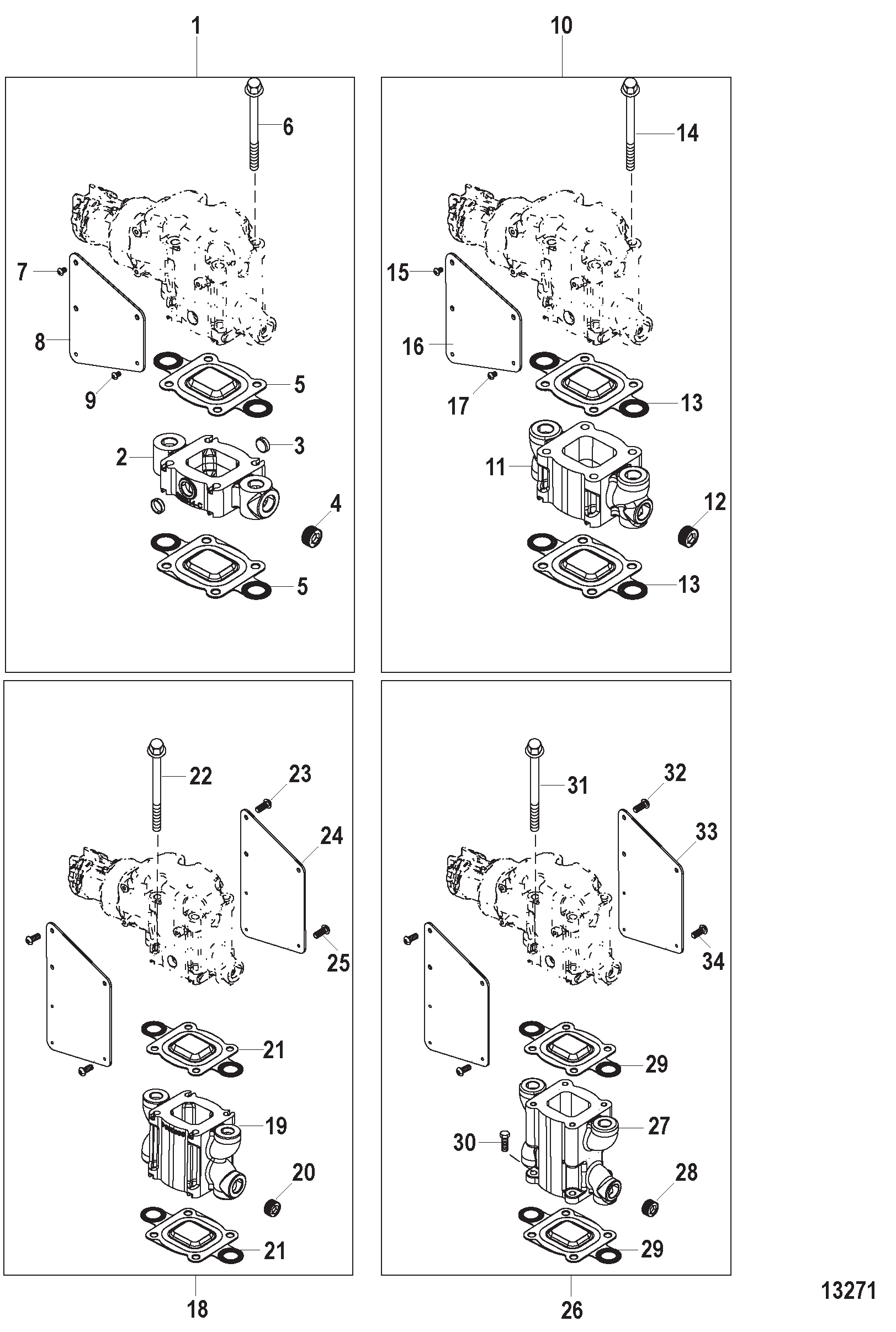

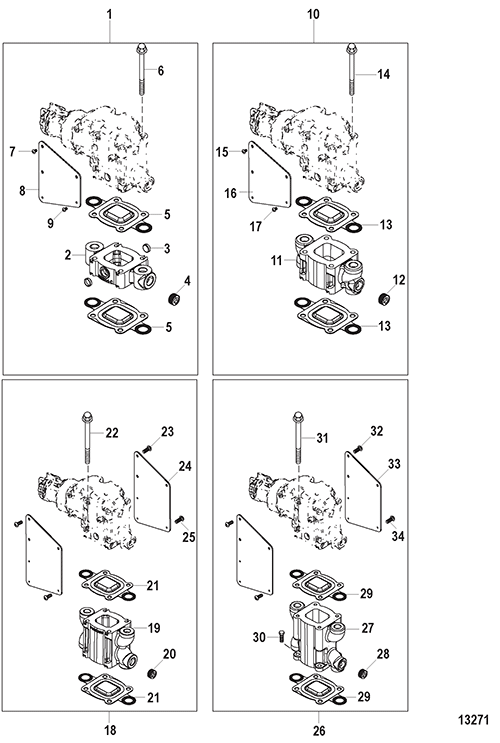

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:



Ref # Part Class Part Number Description Comments Qty Note
1 0000 OEM: 525-865995A01 RISER EXTENSION KIT 1.7 Inch (Standard Cooling) 1
1 0000 OEM: 525-865996A01 RISER EXTENSION KIT 1.7 Inch (Closed Cooling) 1
2   NSS NOT SOLD SEPARATE 1.7 Inch Riser   2
3 0019 OEM: 525-19-864689 PLUG Expansion   2
4 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
5 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   2
5 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   2
5 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   2
6 0010 OEM: 525-10-865982071 SCREW (.375-16 x 9.250)   8
7 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   1
8 0000 OEM: 525-863714T01, GLM: 700-50017 BRACKET   1
9 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
10 0000 OEM: 525-864929A3 RISER EXTENSION KIT 3.0 Inch (Standard Cooling) 1
10 0000 OEM: 525-864929A4 RISER EXTENSION KIT 3.0 Inch (Closed Cooling) 1
11   NSS NOT SOLD SEPARATE 3 Inch Riser   2
12 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
13 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   2
13 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   2
13 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   2
14 0010 OEM: 525-10-865982077 SCREW (.375-16 x 10.500)   8
15 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   1
16 0000 OEM: 525-863714T01, GLM: 700-50017 BRACKET   1
17 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
18 0000 OEM: 525-866208A02 RISER EXTENSION KIT 4.7 Inch (Standard Cooling) 1
18 0000 OEM: 525-866208A03 RISER EXTENSION KIT 4.7 Inch (Closed Cooling) 1
19   NSS NOT SOLD SEPARATE 4.7 Inch Riser   2
20 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
21 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   2
21 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   2
21 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   2
22 0010 OEM: 525-10-865982092 SCREW (.375-16 x 12.380)   8
23 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   6
24 0000 OEM: 525-863715T01, GLM: 700-50018 BRACKET   2
25 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
26 0000 OEM: 525-864908A1 RISER EXTENSION KIT 6.0 Inch (Standard Cooling) 1
26 0000 OEM: 525-864908A2 RISER EXTENSION KIT 6.0 Inch (Closed Cooling) 1
27   NSS NOT SOLD SEPARATE 6 Inch Riser   2
28 0022 OEM: 525-22-428611, Sierra: 676-18-4265 FITTING Pipe - Brass (.750-14)   2
29 0027 OEM: 530-864850A02, Sierra: 676-18-0722 GASKET Restrictor   2
29 0027 OEM: 530-864549A02, Sierra: 676-18-0720 GASKET Block Off   2
29 0027 OEM: 530-864547A02, Sierra: 676-18-0721 GASKET Full Flow   2
30 0010 OEM: 525-10-865982005 SCREW (.375-16 x 1.00)   8
31 0010 OEM: 525-10-865982057 SCREW (.375-16 x 7.50)   8
32 0010 OEM: 525-10-860008, GLM: 700-22375 SCREW (.250-20 x .625) Torx   6
33 0000 OEM: 525-863715T01, GLM: 700-50018 BRACKET   2
34 0010 OEM: 525-10-864378 SCREW (.250-20 x .375) Torx   1
