5.0L MPI Alpha-Bravo - Serial 1A300000 Thru 1A611927 - AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I

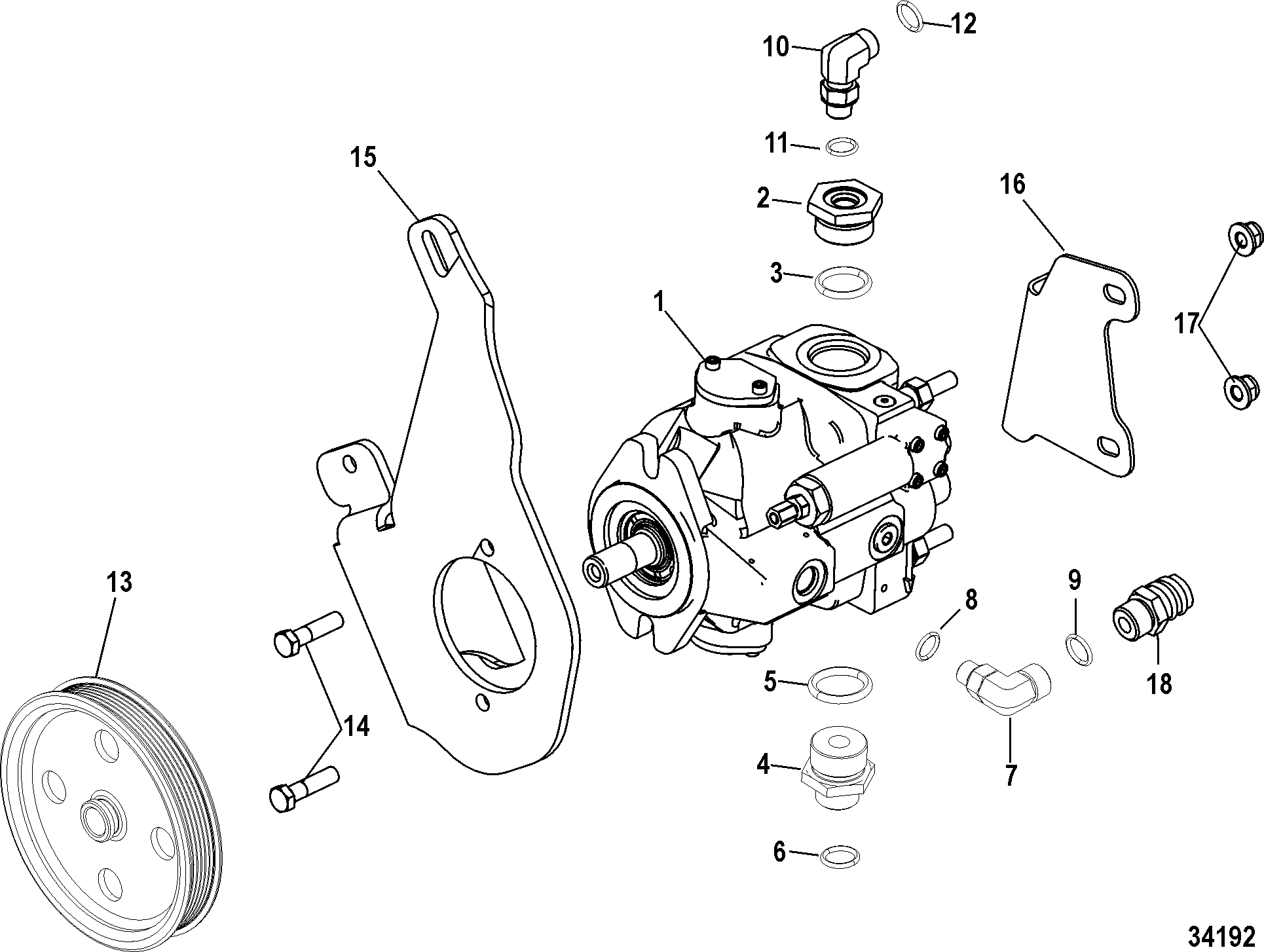

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alpha-Bravo Steering Components
- Alternator and Brackets
- AXIUS Steering Components, Oil Cooler and Bracket, Gen I
- AXIUS Steering, Fluid Filter (HP) 1A347685 and Up, Gen I
- AXIUS Steering, Fluid Filter (Non-HP) 1A347684 and Down, Gen I
- AXIUS Steering, High Pressure Filter Conversion Kit, Gen I
- AXIUS Steering, Hoses (For HP Filter) 1A347685 and Up, Gen I
- AXIUS Steering, Hoses (Non-HP Filter) 1A347684 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I
- AXIUS Steering, Hydraulic Pump, 1A342860 and Up, Gen I
- AXIUS Steering, Reservoir and Front Lifting Eye, Gen I
- Closed Cooling System, ALPHA
- Closed Cooling System, AXIUS
- Closed Cooling System, BRAVO
- Closed Cooling System, Heat Exchanger
- Cool Fuel System -Bravo(1A343748 and Below)
- Cool Fuel System -Bravo(1A343749 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing and Rear Main Seal
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components, Digital (1A343327 and Below)
- Electrical Components, Digital (1A343328 and Up)
- Electrical Components, Mechanical (1A343327 and Below)
- Electrical Components, Mechanical (1A343328 and Up)
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust Risers
- Exhaust System Components
- Front Cover and Circulating Pump
- Fuel Filter, Alpha
- Fuel Module Components -Bravo(1A343748 and Below)
- Fuel Module Components -Bravo(1A343749 and Above)
- Fuel Supply Module, Alpha
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components (27-861246A05), Engine Overhaul
- Gear Lube Monitor
- Intake Manifold and Fuel Rail
- Jackshaft Main Kit
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter Assembly
- Sea Water Pump Assembly
- Shift Bracket, Alpha
- Shift Bracket, Axius
- Shift Bracket, Bravo
- Shift Bracket, Digital Throttle and Shift
- Standard Cooling System - ALPHA, 7 Point Drain
- Standard Cooling System - ALPHA, Single and 3 Point Drain
- Standard Cooling System - AXIUS
- Standard Cooling System - BRAVO, 7 Point Drain
- Standard Cooling System - BRAVO, Single and 3 Point Drain
- Starter Motor
- Thermostat and Housing, 7 Point Drain
- Thermostat and Housing, Single and 3 Point Drain
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879194T15 | PUMP | 1 | 879194T47 | If replacing power steering pump for S/N 1A342859 & below you must also order fitting set 879172A15 so that fittings will fit with new pump | ||||
| - | 879172A15 | FITTING ASSEMBLY | 1 | If replacing power steering pump for S/N 1A342859 & below you must also order fitting set 879172A15 so that fittings will fit with new pump | |||||
| 2 | 22-8M2006227 | FITTING, (1.5 in.) | 1 | ||||||
| 3 | 8M2008617 | O-RING | 1 | ||||||
| 4 | 23-8M2006786 | ADAPTOR, (1.5 in.) | 1 | ||||||
| 5 | 8M2008617 | O-RING | 1 | ||||||
| 6 | 25-8M2008541 | O-RING | 1 | ||||||
| 7 | 22-8M2008375 | FITTING, Adapter (-6ORF TO -8ORB), 90 Degree | 1 | ||||||
| 8 | 8M2004354 | O-RING | 1 | ||||||
| 9 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 10 | 22-8M0033227 | FITTING, (Stainless Steel) | 1 | ||||||
| 11 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 12 | NSS | NOT SOLD SEPARATE, O-RING | 1 | This Part is not sold separately | |||||
| 13 | 8M2006301 | PULLEY | 1 | ||||||
| 14 | 10-34354 | 700-22447 | SCREW, (.375-16 x 1.50) | 2 | |||||
| 15 | 879194T03 | BRACKET | 1 | ||||||
| 16 | 879288T17 | BRACE | 1 | ||||||
| 17 | 11-860069 | NUT, (.375-16) | 2 | ||||||
| 18 | 22-8M2017518 | COUPLING, Quick Connect | 1 |
