5.7L CARB Alpha-Bravo - Serial 0M600000 Thru 0W300754 - Fuel Filter and Fuel Pump

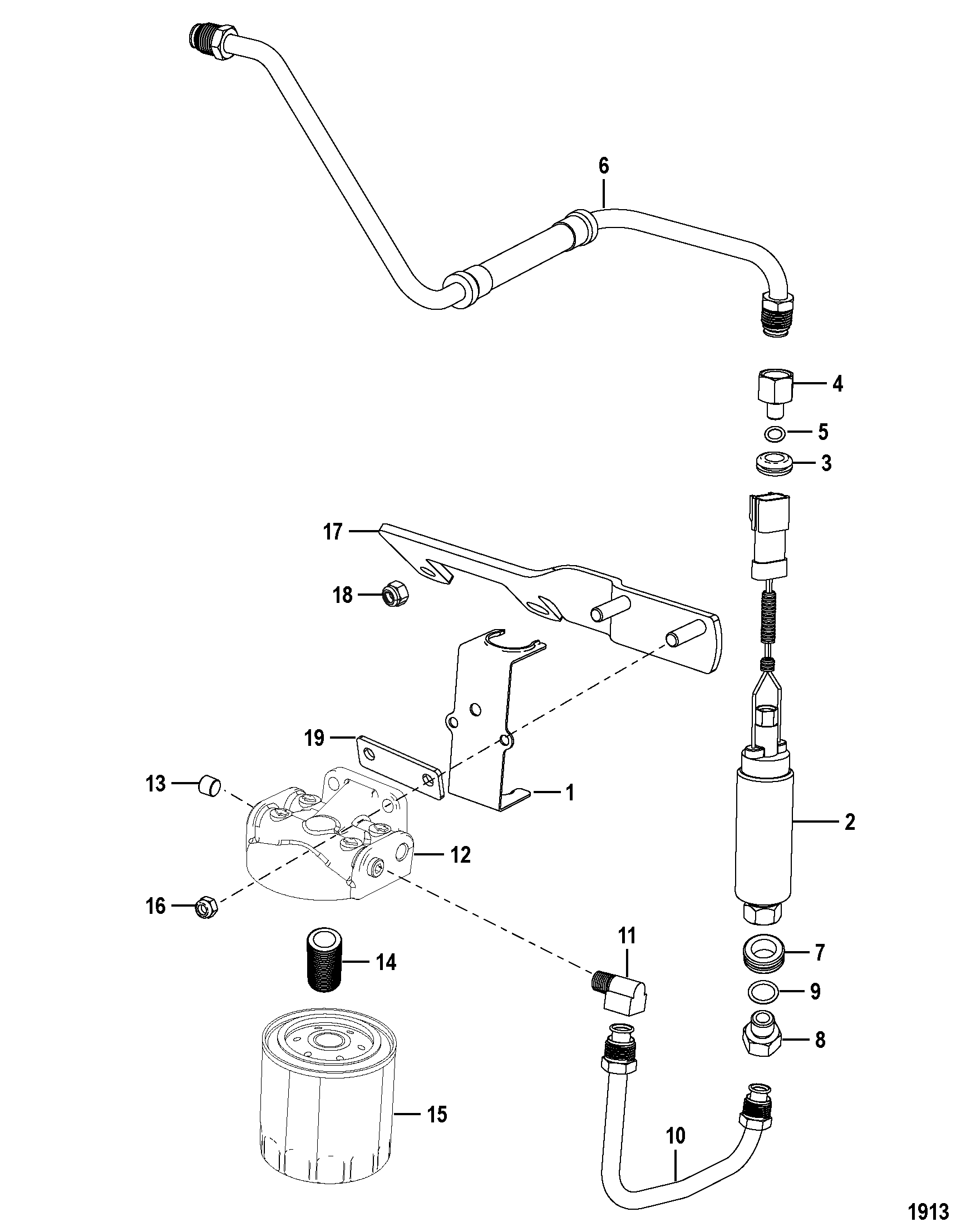

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Carburetor and Throttle Linkage
- Carburetor Kit (TKS)
- Carburetor(Mercarb)
- Cylinder Block and Flywheel Housing
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounts
- Exhaust Manifold and Elbow
- Exhaust System
- Front Cover and Circulating Pump
- Fuel Filter and Fuel Pump
- Gear Lube Monitor
- Intake Manifold
- Jackshaft Components
- Mercathode Components
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Power Steering Components
- Remote Oil Filter (Accessory Kit)
- Sea Water Pump Assembly (Bravo Standard Cooling)
- Shift Bracket (Alpha Engines)(0M659999 and Below)
- Shift Bracket (Alpha Engines)(0M660000 and Up)
- Shift Bracket (Bravo Engines)(0M659999 and Below)
- Shift Bracket (Bravo Engines)(0M660000 and Up)
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | OEM: 525-861319 | BRACKET Fuel Pump | 1 | ||
| 2 | 0000 | OEM: 530-861155A3, Sierra: 676-18-8868 | PUMP ASSEMBLY Fuel | 1 | ||
| 3 | 0025 | OEM: 525-25-817491 | GROMMET (.56 Inside Diameter) | 1 | ||
| 4 | 0022 | OEM: 525-22-805027A1 | FITTING ASSEMBLY | 1 | ||
| 5 | 0025 | OEM: 525-25-805063 | O-RING (.301 x .070) | 1 | ||
| 6 | 0032 | 8613201 | LINE ASSEMBLY Fuel Fuel Pump to Carb | (Standard Cooling) [1A607644] & Below | 1 | |
| 6 | 0032 | OEM: 525-32-8M0045998 | LINE Fuel Fuel Pump to Carb | (Standard Cooling) [1A607645] & Up | 1 | |
| 6 | 0032 | OEM: 525-32-865524 | LINE Fuel Fuel Pump to Carb | (Closed Cooling) [1A607644] & Below | 1 | |
| 6 | 0032 | OEM: 525-32-8M0046388 | LINE Fuel Fuel Pump to Carb | (Closed Cooling) [1A607645] & Up | 1 | [1] |
| 7 | 0025 | OEM: 525-25-13467 | GROMMET (.88 Inside Diameter) | 1 | ||
| 8 | 0022 | OEM: 525-22-805026A1 | FITTING | 1 | ||
| 9 | 0025 | OEM: 525-25-805062 | O-RING (.530 x .082) | 1 | ||
| 10 | 0032 | OEM: 525-32-861250 | LINE ASSEMBLY Fuel Fuel Pump to Filter | 1 | ||
| 11 | 0022 | 93385 | FITTING (90 Degree) Inlet | 1 | ||
| 12 | 0000 | OEM: 525-89876A3, Sierra: 676-18-7853-1, GLM: 700-25000 | BASE ASSEMBLY Fuel Filter, Water Seperator | 1 | ||
| 13 | 0022 | OEM: 525-22-32561 | PLUG Pipe - Allen Head (.250-18) | 2 | ||
| 14 | 0022 | OEM: 525-22-816133 | FITTING | 1 | ||
| 15 | 0035 | OEM: 530-802893Q01, GLM: 700-24940 | FILTER Fuel/Water Separating - Quicksilver Brand | (Quicksilver Brand) | 1 | |
| 15 | 0035 | 802893T | FILTER Fuel/Water Separating - Mercury Brand | (Mercury Brand) | 1 | [2] |
| 16 | 0011 | OEM: 525-11-82670811 | NUT (.312-24) | 2 | ||
| 17 | 0000 | OEM: 525-807918T | BRACKET Fuel Filter Base | 1 | ||
| 18 | 0011 | OEM: 525-11-4013610 | NUT (M10) Stainless Steel | 2 | ||
| 19 | 0000 | OEM: 525-88641 | INSULATOR | 1 |
PART NOTES:
[1] - Component of Closed Cooling Kit 8M0080795
[2] - Alternate part numbers:
802893QQS
802893TMPP
807172Service Part
