5.7L CARB Alpha-Bravo - Serial 0W300755 Thru 0W309999 - Exhaust Manifold and Elbow

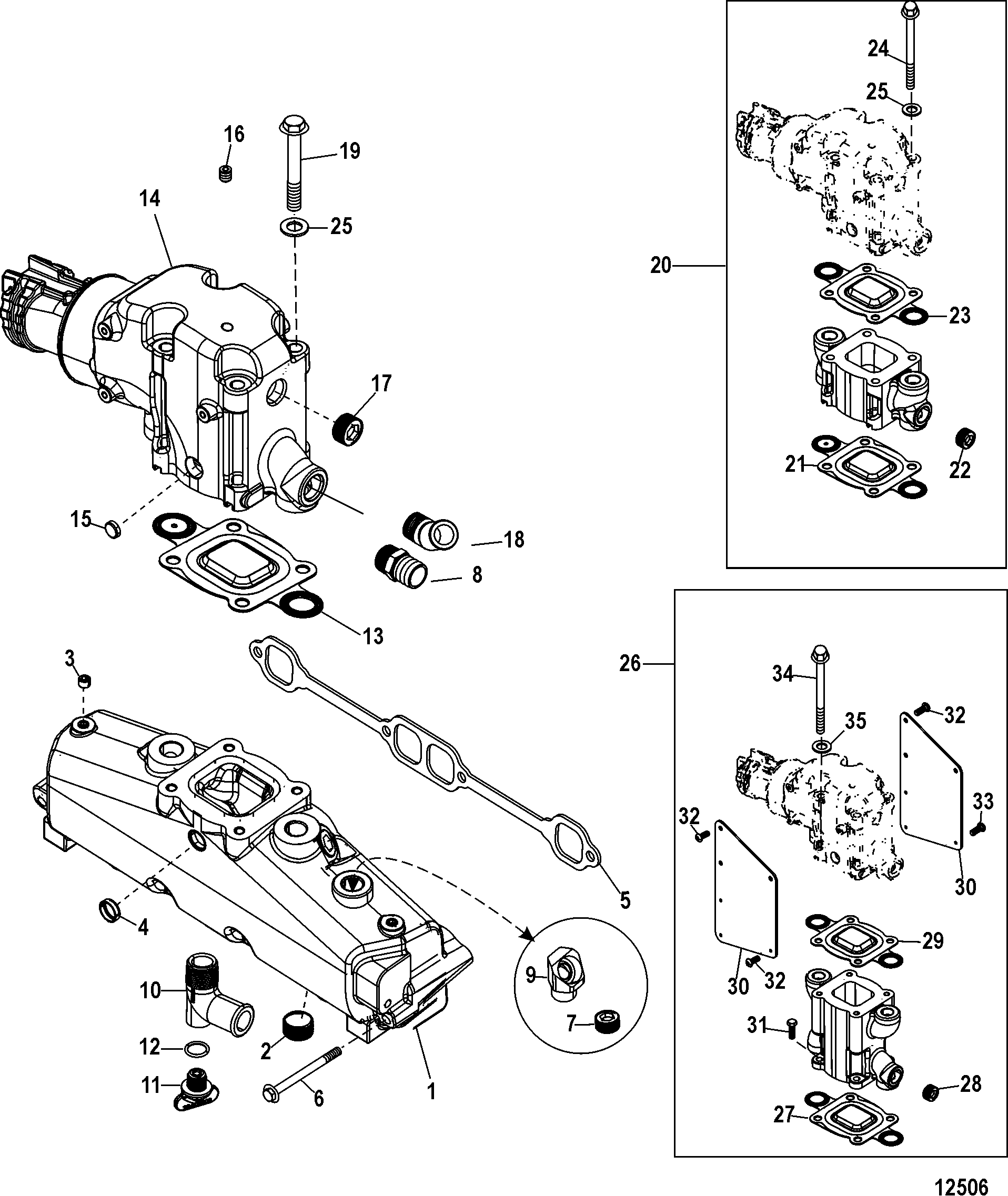

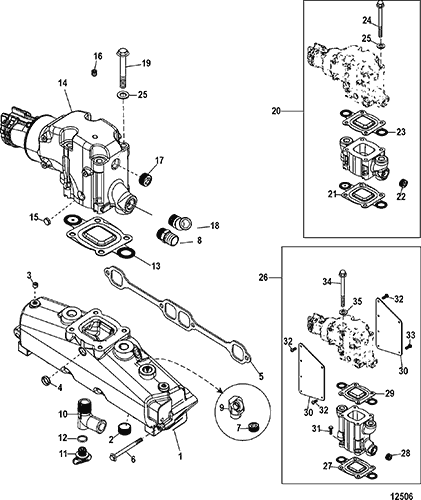

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865735A02
676-9-40508

MANIFOLD ASSEMBLY, Exhaust 2 864308T01
2 22-428611



FITTING, Pipe - Brass (.750-14) 4

3 22-390721



PLUG, Pipe (.125-27) Brass 2

4 19-864689



PLUG, Expansion, Expansion 2

5 27-33395
676-9-61401 700-31100
GASKET, Manifold 2
2,4
6 10-53728

700-21745
SCREW, (.375-16 x 4.75) 8

7 22-12524



PLUG, (.375-18 x .475) Brass 1
(Port)
8 22-863804



FITTING, (.750-14) 1
(Port) No longer made, limited availability
9 22-63835



ELBOW, 45 Degree 1
(Starboard)
10 22-862210A01
676-9-41206 700-13991
ELBOW KIT, Drain 2 22-806926A1
11 22-806608A02

700-13992
PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
12 25-62706
676-9-76520

O-RING, (.426 x .070) 2

13 27-864850A02
676-9-61429

GASKET, Elbow 2 27-864850A1
14 864309T02



ELBOW ASSEMBLY, Exhaust 2 864309T01
15 19-864689



PLUG, Expansion, Expansion 2

16 22-73379

700-22379
PLUG, (.250-18) 1

17 22-428611



FITTING, Pipe - Brass (.750-14) 1

18 22-865159



FITTING, (45 Degree) 2 22-92499T (Starboard)
19 10-43749

700-22381
SCREW, (.375-16 x 5.750), Exhaust Elbow 8

20 864929A1



RISER EXTENSION KIT, 3 Inch Warm Riser 1

21 27-864850A02
676-9-61429

GASKET, Restrictor 2 27-864850A1
22 22-428611



FITTING, Pipe - Brass (.750-14) 2

23 27-864547A02
676-9-61430

GASKET, Full Flow 2 27-864547A1
24 10-864531



BOLT, (.375-16 x 9.00) 8

25



WASHER 8

26 864908A1



RISER EXTENSION KIT, 6 Inch Warm Riser 1

27 27-864850A02
676-9-61429

GASKET, Restrictor 2 27-864850A1
28 22-428611



FITTING, Pipe - Brass (.750-14) 2

29 27-864547A02
676-9-61430

GASKET, Full Flow 2 27-864547A1
30 863715T01



BRACKET 2

31 10-865982005



SCREW, (.375-16 x 1.00) 8 10-12244
32 10-860008



SCREW, (.250-20 x .625) Torx 6

33 10-864378



SCREW, (.250-20 x .375) Torx 1

34 10-43749

700-22381
SCREW, (.375-16 x 5.750) 8

35



WASHER 8

- 864651A01



LONGBLOCK ASSEMBLY 1 863660A1 (5.0L)
- 864652A01



LONGBLOCK ASSEMBLY 1 863661A1 (5.7L)
- 27-861246A05

700-39016
GASKET SET, Engine Overhaul 1
