5.7L EFI GM 350 V-8 1998 - Serial 0L010035 Thru 0L339999 - Exhaust Manifold And Exhaust Elbow

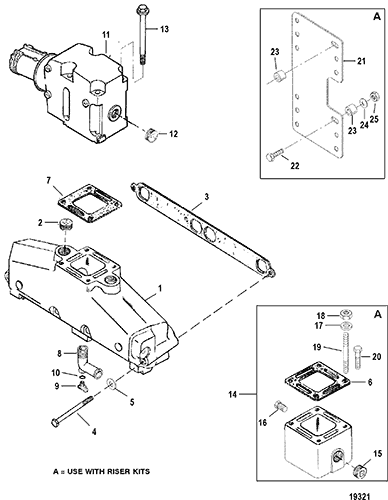

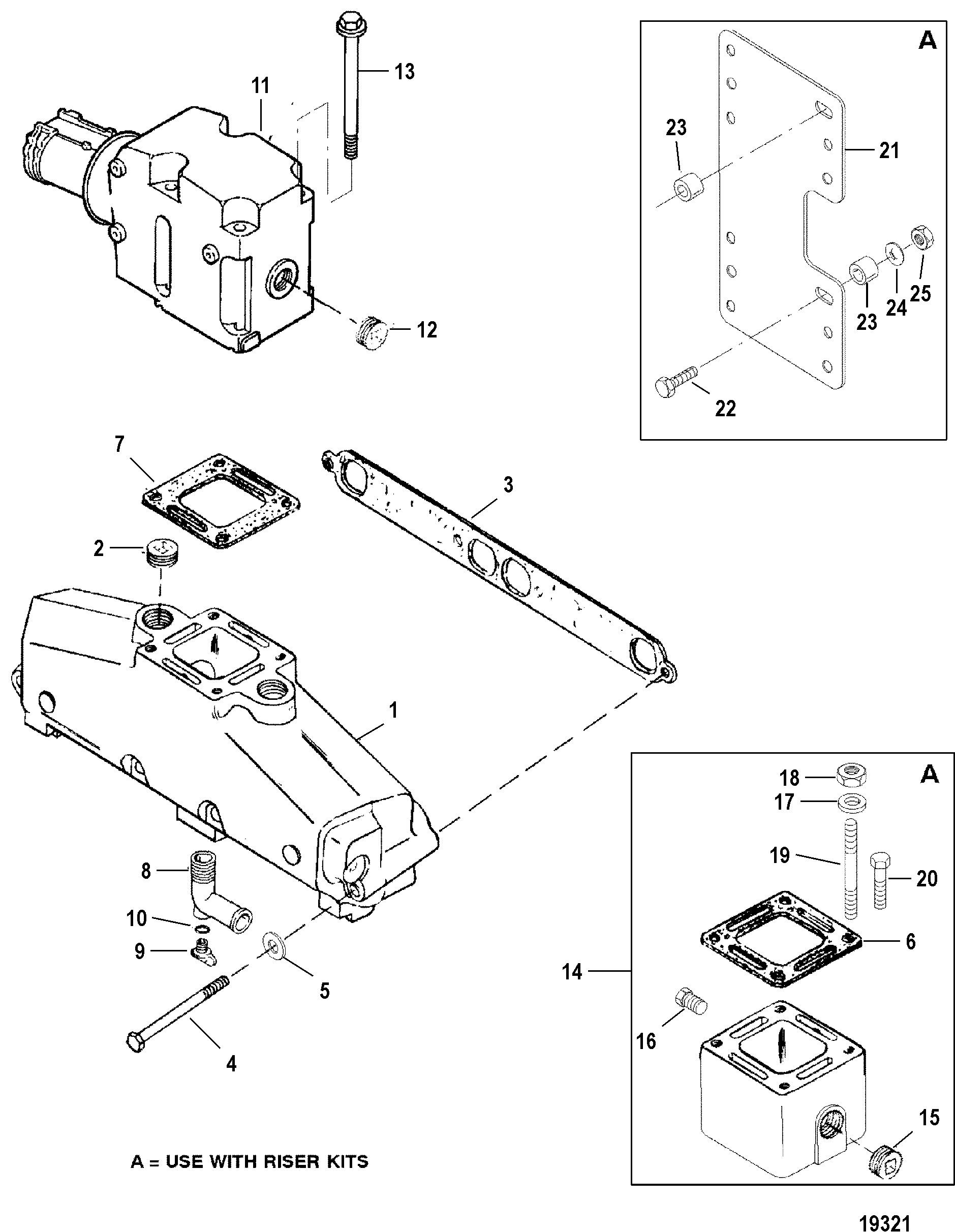

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 860246A15         MANIFOLD ASSEMBLY, Exhaust 1 860246A3 (PORT)
1 860246A15         MANIFOLD ASSEMBLY, Exhaust 1 860246A7 (STARBOARD)
2 22-41622   676-9-41205 700-21892   PLUG, (.750-14) Pipe 8

3 27-33395         GASKET 2
2
4 10-53728         SCREW, (.375-16 x 4.75) 8

5 12-20533         WASHER 8

6 27-863726         GASKET 2 27-860232 (USE WITH RISER KITS)
7 27-863724         GASKET 2 27-860233
8 22-862210A01   676-9-41206 700-13991   ELBOW KIT, Drain 2 22-806926A1
9 22-806608A02         PLUG KIT, (.500-13) Royal Blue 2 22-806608A1
10 25-32509         QUAD RING 2 25-806609 2
11 807988A03         ELBOW ASSEMBLY, Exhaust 2 807914A1
11 807988A03         ELBOW ASSEMBLY, Exhaust 2 44354A13 SWISS EMISSIONS (BSO1 AND SAV1)
12 22-41622   676-9-41205 700-21892   PLUG, (.750-14) Pipe 2

13 10-43749         SCREW, (.375-16 x 5.750) 8

13 10-43749         SCREW, (.375-16 x 5.750) 4
SWISS EMISSIONS (BSO1 AND SAV1)
13 10-843504         SCREW, (.380-16 x 1.500) Stainless Steel 4
SWISS EMISSIONS (BSO1 AND SAV1)
14 93320A13         RISER KIT, Exhaust (3 Inches) 1 93320A5 EACH KIT CONTAINS 2 RISERS
14 93322A12         RISER KIT, Exhaust (6 Inches) 1 93322A7 EACH KIT CONTAINS 2 RISERS
15 22-41622   676-9-41205 700-21892   PLUG, (.750-14) Pipe 2

16 22-328022         PLUG, Pipe (.125-27) 2 22-328021
17 12-46132         WASHER 4/8
USE WITH 3 IN. RISER
18 11-46335         NUT, (.375-24) 4/8
USE WITH 3 IN. RISER
19 8M0022137         STUD, (.375 x 9.56) 4/8 16-11375 USE WITH 3 IN. RISER
20 10-14315         SCREW, (.375-16 x 4.25) 4   This Part is No Longer Available SWISS EMISSIONS (BSO1 AND SAV1) USE WITH 3 IN. RISER
20 10-865982005         SCREW, (.375-16 x 1.00) 8 10-12244 USE WITH 6 IN. RISER
21 818598T         BRACKET 1
USE WITH 6 IN. RISER
22 10-76596         SCREW, (.250-20 x 1.250) 3
USE WITH 6 IN. RISER
23 23-806981         SPACER 6
USE WITH 6 IN. RISER
24 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 3
USE WITH 6 IN. RISER
25 11-64015         NUT, (.250-20) 3
USE WITH 6 IN. RISER
- 27-861246A05         GASKET SET 1 27-861246A98
